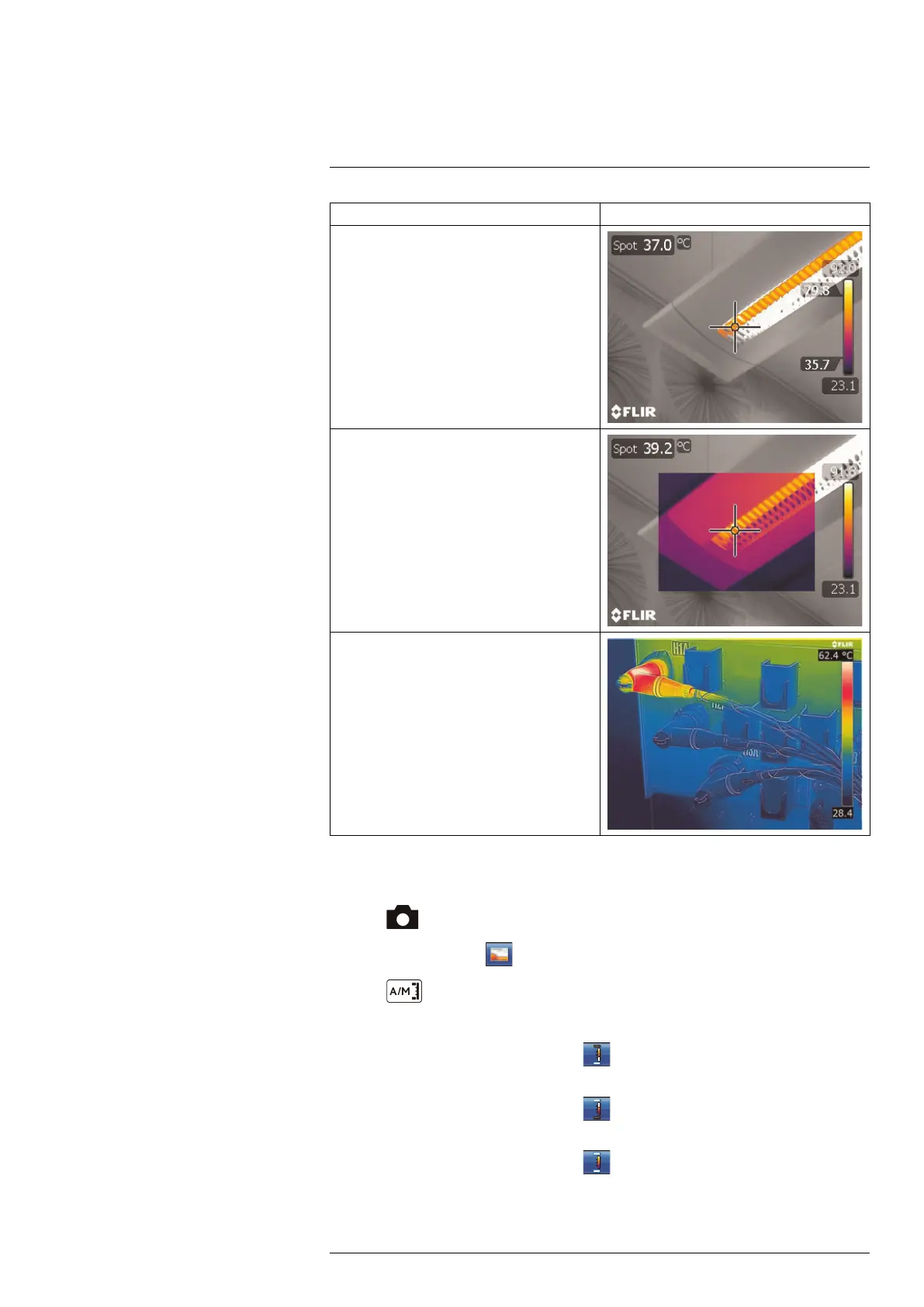

Working with image modes16
Type Image
Interval
Picture-in-Picture
MSX
16.5 Setting up Thermal fusion
Follow this procedure:
1. Push
to display a toolbar.
2. On the toolbar, select
(Thermal fusion).
3. Push
.
4. To change the portion of infrared in the image, do one of the following:
• Push the joystick left/right to select
, then push the joystick up/down to change
the bottom temperature level.
• Push the joystick left/right to select
, then push the joystick up/down to change
the top temperature level.
• Push the joystick left/right to select
, then push the joystick up/down to change
the top and bottom temperature level at the same time, and left/right to change the
temperature span.
