FLIR T6xx series

Working with measurement tools17
Follow this procedure:
1. Push
or tap the screen to display the menu system.
2. Use the joystick to go to
(Tools).
3. Push the joystick to display a submenu.
4. Use the joystick to go to
(Adjust tools).
5. Push the joystick and select the measurement tool that you want to move or resize.
6. Push the joystick. The measurement tool will now be displayed with one or more han-
dles, which you use to move or resize the tool.

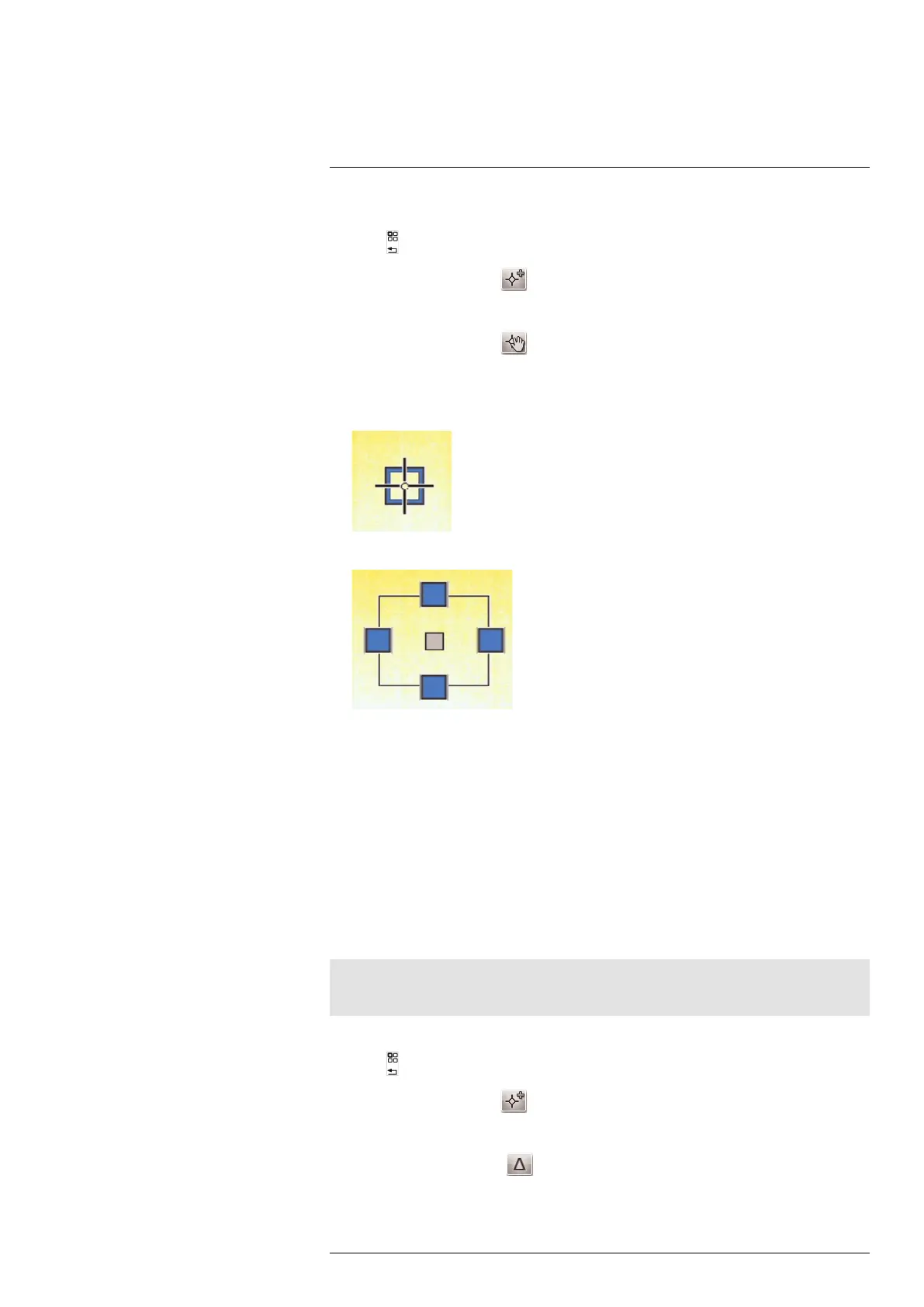

Figure 17.1 Spot measurement tool.
Figure 17.2 Area measurement tool.
7. Use the joystick to move or resize the measurement tool.
8. Optional step:
Push the joystick, or tap and hold down the finger on the screen to display a context
menu.
17.5 Creating and setting up a difference calculation
17.5.1 General
A difference calculation gives the difference between the values of two known measure-
ment results.
17.5.2 Procedure
Note
This procedure assumes that you have previously laid out at least two measurement tools on the
screen.
Follow this procedure:
1. Push
or tap the screen to display the menu system.
2. Use the joystick to go to
(Tools).
3. Push the joystick to display a submenu.
4. Use the joystick to select
(Add difference).
#T559598; r. AB/ 9443/9443; en-US
45
