Annotating images20
5. Click OK.
20.5 Creating a table
20.5.1 General
A table with textual information can be saved in an infrared image.
This feature is a very efficient way of recording information when you are inspecting a
large number of similar objects. The idea behind using a table with textual information is
to avoid filling out forms or inspection protocols manually.
20.5.2 Definition of field and value
A table is based on two important concepts—field and value. See below.
Field (examples) Value (examples)
Company Company A
Company B
Company C
Building Workshop 1
Workshop 2
Workshop 3
Section Room 1
Room 2
Room 3
Equipment Tool 1
Tool 2
Tool 3
Recommendation Recommendation 1
Recommendation 2
Recommendation 3

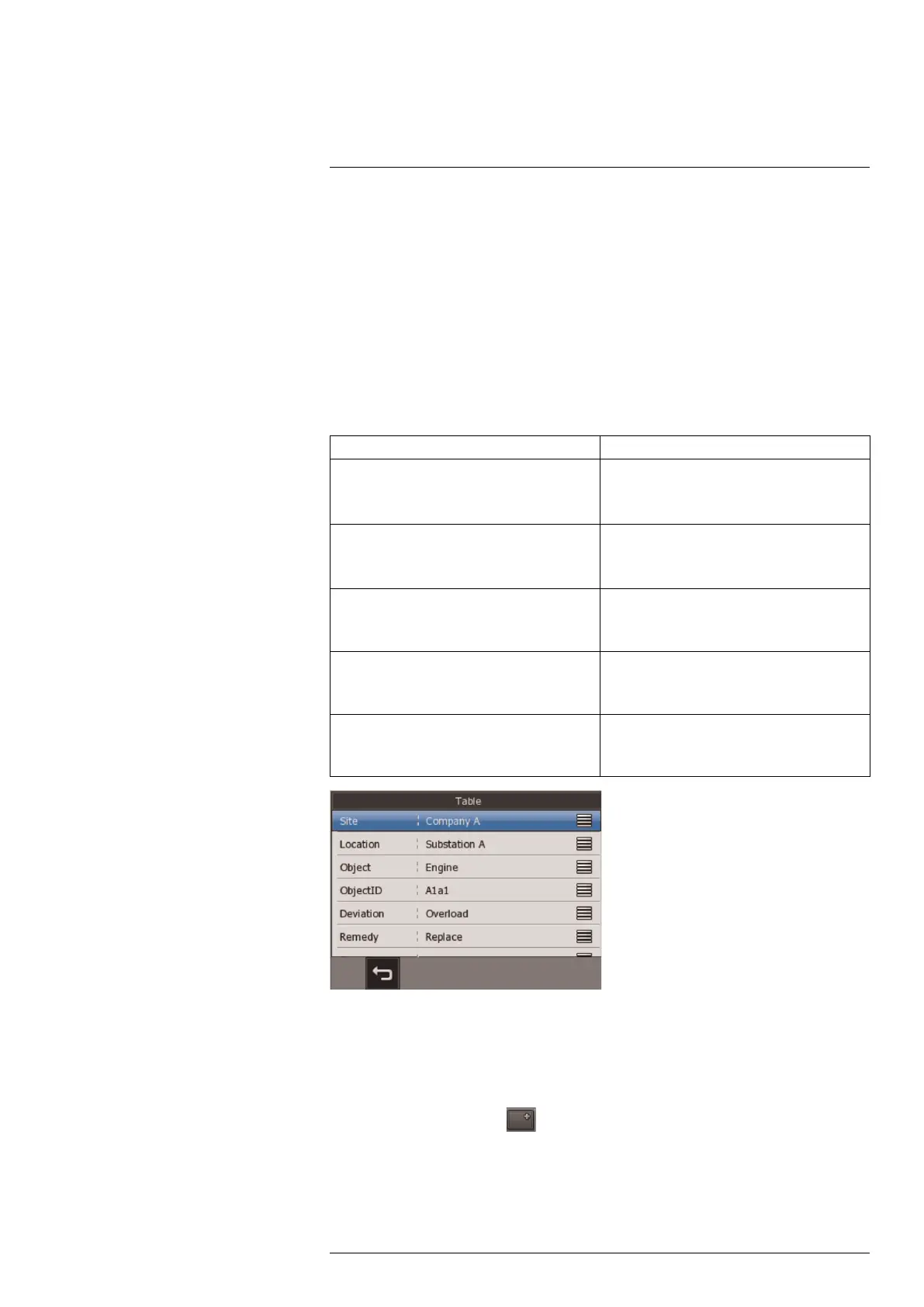

Figure 20.1 The table as it appears in the camera software.
20.5.3 Procedure
Follow this procedure:
1. To preview an image, push the Autofocus/Save button fully down and release it.
2. Use the joystick to select
.
3. Push the joystick to display a submenu.
#T559598; r. AB/ 9443/9443; en-US
55
