FLIR Tau User Manual

3—Basic Operation of the Tau and GUI Tau User’s Manual
3-10 April 2009 TAU-0035-00-10, version 100
3.8 Setup Tab
The Setup tab, shown below, provides the ability to do the following:
• Modify the Flat Field Correction (FFC)
• Set the External Sync mode
• Freeze the video via the Operating Mode section
• Supplemental Offset
• Set the camera to generate a Test Pattern
• Save the settings to the camera’s non volatile memory
• Restore the Factory Defaults
• Reset the Camera

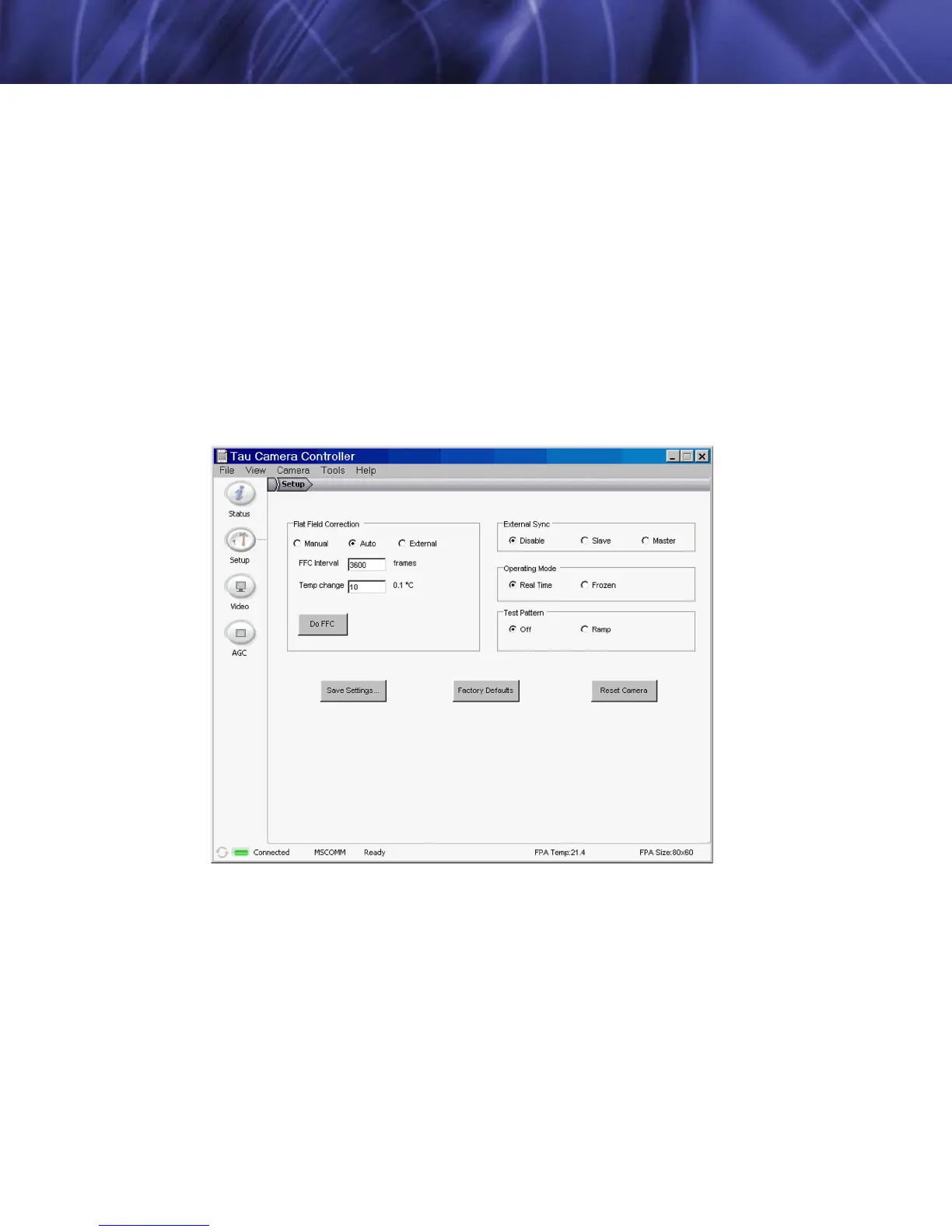

Figure 3-3: FLIR Camera Controller Setup Tab

FLIR Tau Specifications

General

Thermal Sensitivity (NEdT)	<50 mK
Pixel Size	17μm
Spectral Band	7.5 - 13.5 µm
Frame Rate	Up to 60Hz
Digital Video Output	14-bit digital
Sensor Type	Uncooled microbolometer
Pixel Pitch	17μm
Output Interface	Camera Link
Lens Options	Wide range of lens options available
