Installation of the Machine
218333 04/03/2020
29

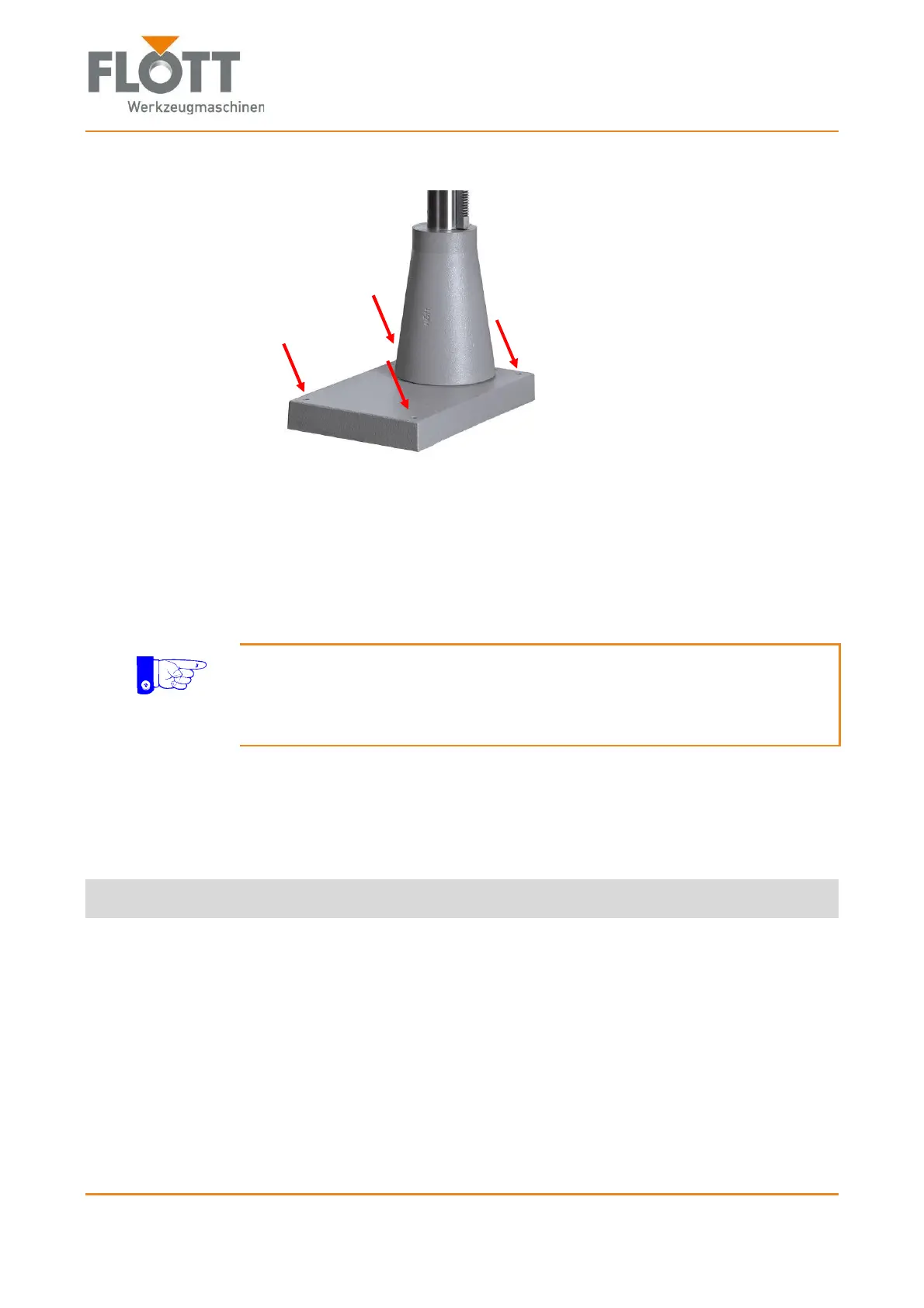

6. Mark the holes for fixing the machine base.
7. Move the machine slightly and drill out the holes (depending on the design
with 2 or 4 through holes or dowel holes for M12).
8. Place suitable vibration dampers (rubber mat or rubber damper) under the
machine base in order to absorb vibrations during operation.
9. Realign the machine.
10. Attach the machine base to the foundation or a machine table using suita-
ble M12 connection screws.
Note
Make sure that the machine base is not distorted by the fastening screws. A
distorted machine base can result in unwanted vibration transmission of the
drive unit.
11. Tighten the screws only hand-tight so that the machine base is not distort-
ed.
