5 Before Using the Machine
5.1 Mounting Accessories and Options
Depending on the order, the machine comes without machine vice and drill
chuck. These optional components must be properly installed by the operator
after the machine has been set up.
5.1.1 Mounting Drill Chuck

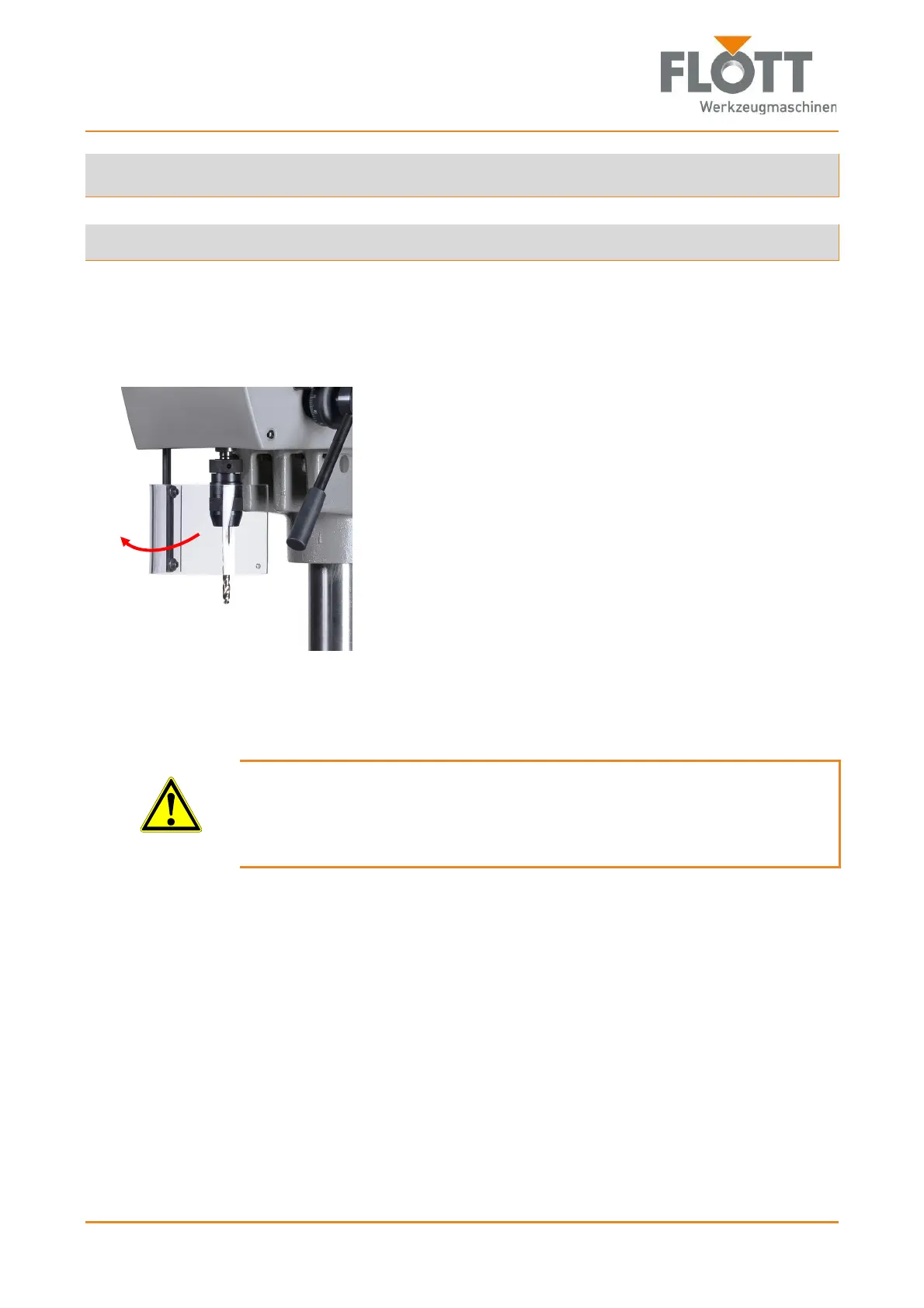

1. Manually swivel the drill guide to the left side. This acti-
vates the drill guard switch and prevents the machine
from starting.
2. Check that the cone of the drill chuck and the spindle are free from contam-
ination and grease.
3. If necessary, add a little spray oil to the cone of the drill chuck and the spin-
dle.
Warning
Risk of damaging the spindle or the drill chuck.
Never hit the chuck directly with a metal hammer. Insert a rubber mallet or a
wooden board in between.
4. Place the chuck vertically under or in the spindle.
5. Attach the drill chuck to the spindle by gently tapping the drill chuck from
below with a rubber mallet.
This jams the chuck in the spindle.
6. Check the tight fit of the drill chuck by gently shaking and pulling.
How to disassemble a chuck is described in section 9 Maintenance of the ma-
chine, page 61.
