Flott SB 18 Plus - Spare Parts List and Diagrams

Spare Parts List and Drawings
218333 04/03/2020 79
10 Spare Parts List and Drawings
This does not apply to parts no longer manufactured due
to technical innovations!
Order number
Fig. Item Designation SB 18 Plus TB 18 Plus TBZ 18 Plus
1 1 Protective hood 218321 218321 218321
1 2 Control panel *
Knob *
212581
212608
212581
212608
212581
212608
1 3 Emergency stop push-button * 010053 010053 010053
1 3 Toggle switch * 009461 009461 009461
1 3 Small front plate 218322 218322 218322
1 3 Cable harness * 218378 218378 218378
1 4 Head 223051 223051 223051
1 4 Adapter 218391 218391 218391
1 5 Replacement sight protection 218366 218366 218366
1 5 Drill guard bracket 290817 290817 290817
1 5 Clamping jaws (1 pair) 009603 009603 009603
1 5 Cylinder head screw M6x16-DIN 912 004845 004845 004845
1 6 Arm 201103 201103 –
1 7 Toothed rack 218402 218411 218411
1 8 Pillar 218401 218406 218406
1 9 Stand pillar 140102 – –
1 10 Stand plate 140101 – –
1 11 Table foot – 201122 201143
1 12 Machine cabinet (option) – – 201160
* Wear part
1
2
3
5
4
6
9
10
7
8
1
2
3
4
5
11
7
8
12
1
2
4
3
5
6
7
8
11

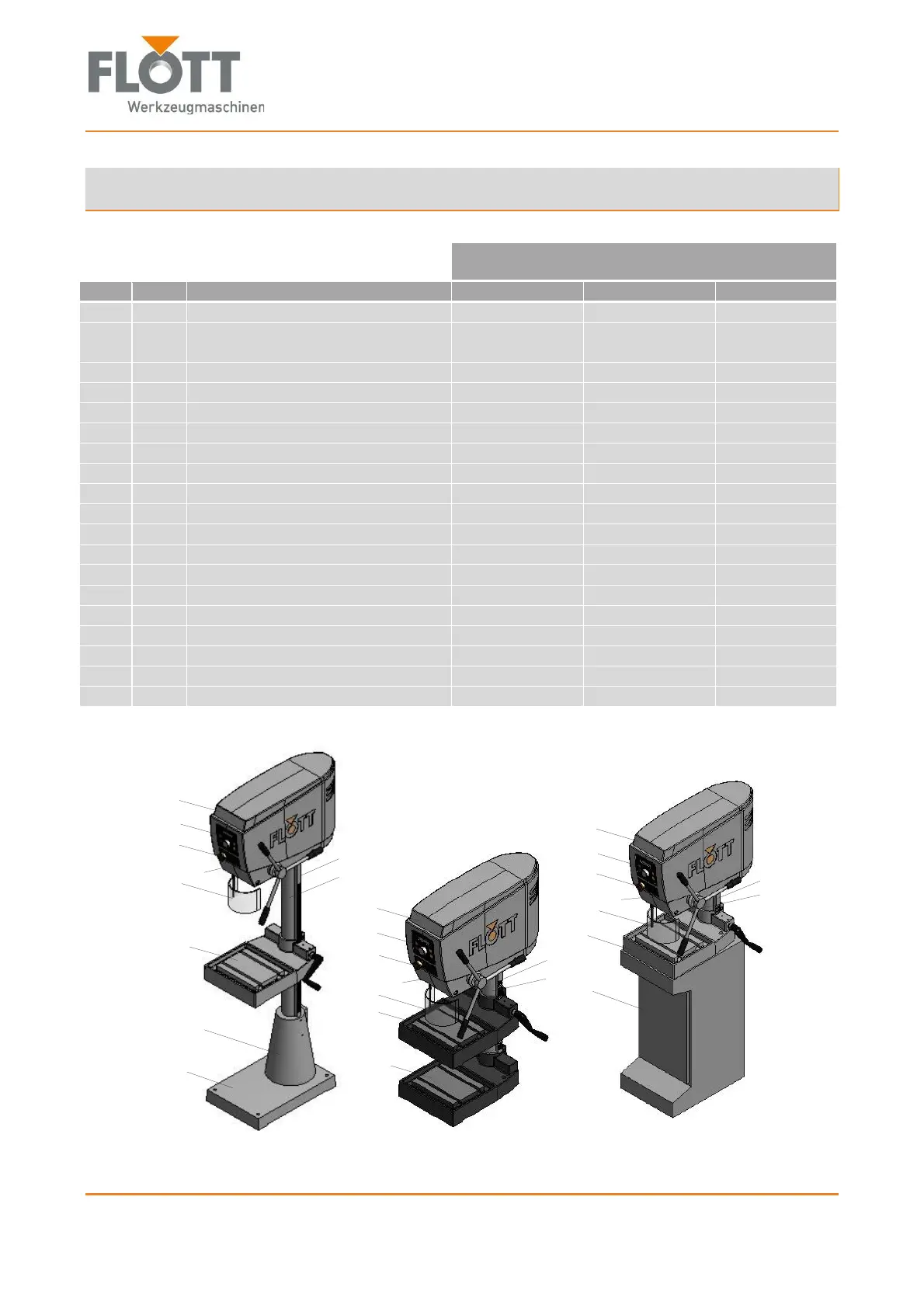

Fig. 1: SB/TB/TBZ P18 Plus
