Operating the Machine
218333 04/03/2020
45

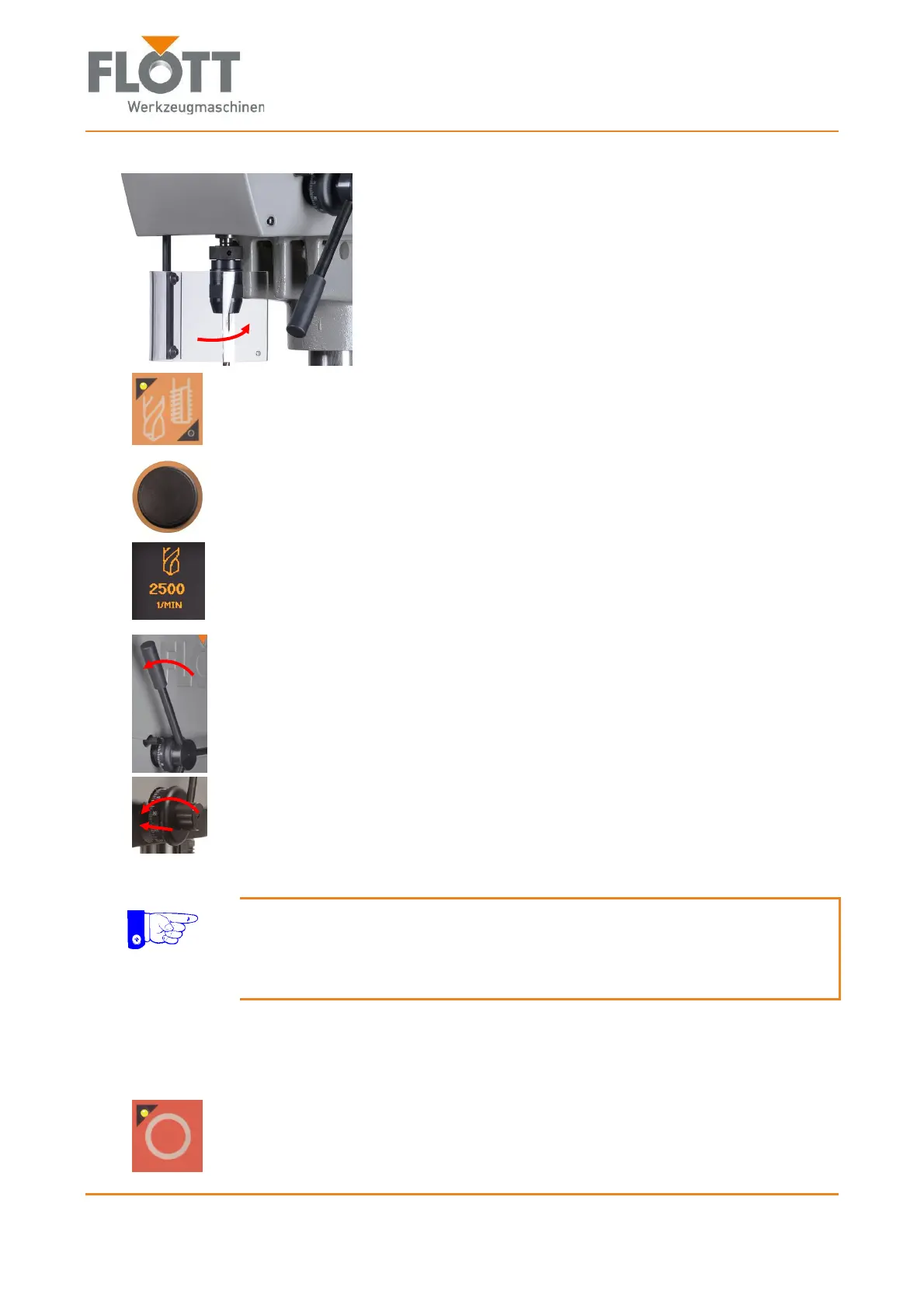

4. Before starting the machine, swivel the drill guard into its
protection position in front of the cutter.
This will activate the protective switch, which releases the
operation of the machine.
5. If necessary:
Press the push-button to select the drill type Drilling.
The lower right lamp lights when the Drilling mode is selected.
6. Select the appropriate speed for the inserted drill bit and workpiece by
pressing the rotary switch/push-button
Set the speed (rpm) by turning slowly and
Apply the speed in the control system by pressing.
The set speed is shown in the display.
7. Use the three-arm-lever to slowly move the drill bit towards the workpiece
by pressing down on the three-arm-lever.
Drill the first blind hole in the workpiece.
Hold the three-arm-lever in the lowest position of the bore.
8. Push the limiter all the way to the three-arm-lever axle.
9. Turn the limiter counter clockwise until the pin of the limiter rests on the
stop pin.
10. Then return the three-arm-lever back to its initial position.
Note
Note that drilling with the limiter only allows a very rough setting of the drilling
depth. For a more precise setting, you should use the drilling depth setting of
the control system.
11. Now drill all other holes with the limitation of the drilling depth by means of
a limiter.
12. Pull the limiter out in the direction of the three-arm-lever until it stops in or-
der to deactivate the limiter.
13. Press the push-button to stop the machine.
The lamp lights up when the drive is off.
The machining operation is over.
