Spare Parts List and Drawings
84
04/03/2020 218333
This does not apply to parts no longer manufactured
due to technical innovations!
Order number
Fig. Item Designation SB 20 Plus
SB 20 FB Plus
TB 20 Plus TBZ 20 Plus
3 1 Motor holding bracket 223084 223084 223084
3 – Frequency converter 1.5 kW * 223091 223091 223091
3 2 Motor 1.5 kW 223131 223131 223131
3 3 Flange bearing 201401 201401 201401
3 4 Grooved ball bearing DIN 625 *
30x62x16 mm 6206-2Z
006793 006793 006793
3 5 Running bush * 218351 218351 218351
3 6 Spindle pulley 220136 220136 220136
3 7 Ribbed V-belt DIN 7867 *
8PJx1080 mm
010152 010152 010152
* Wear part

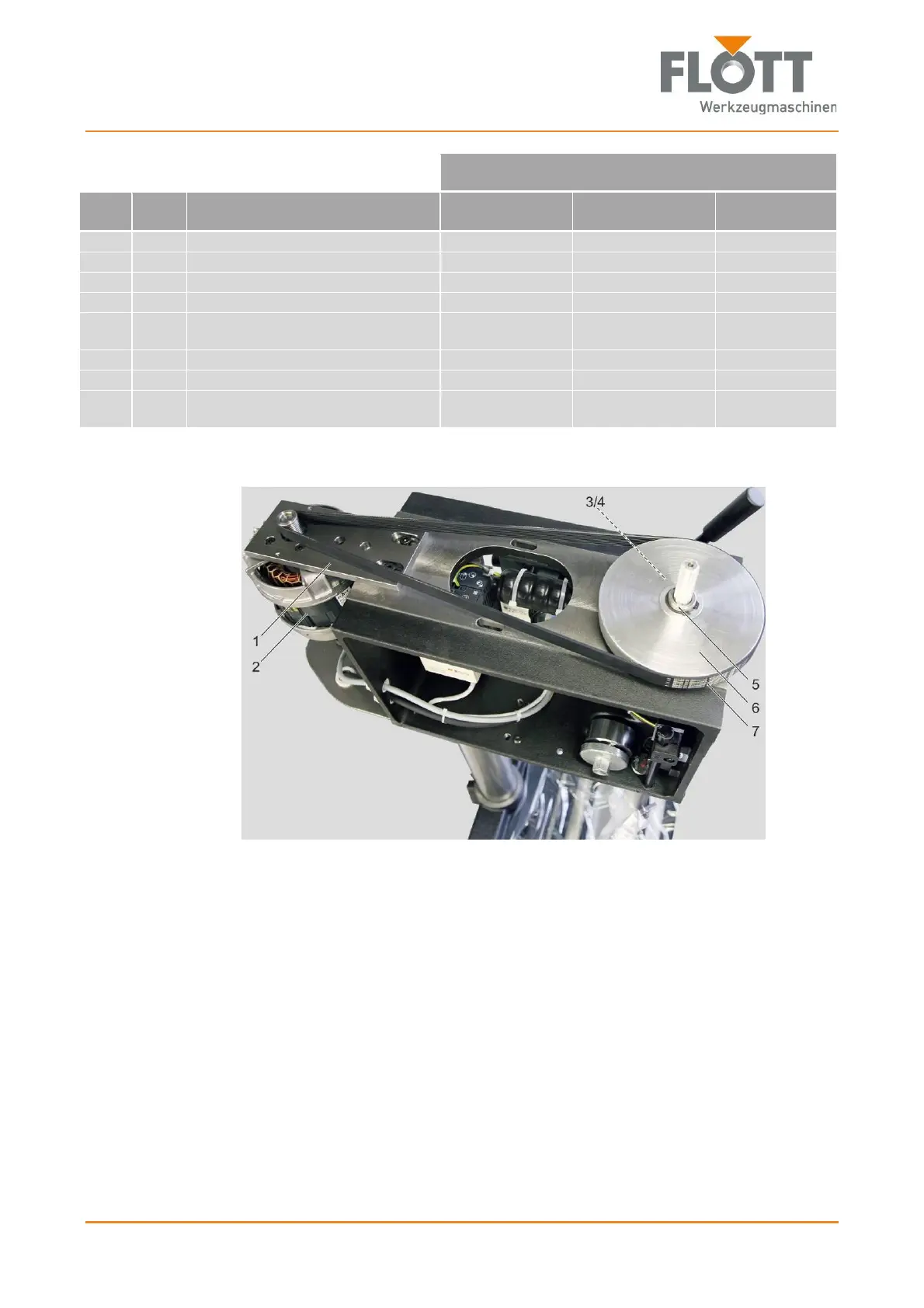

Fig. 3: SB/TB/TBZ P20 Plus
