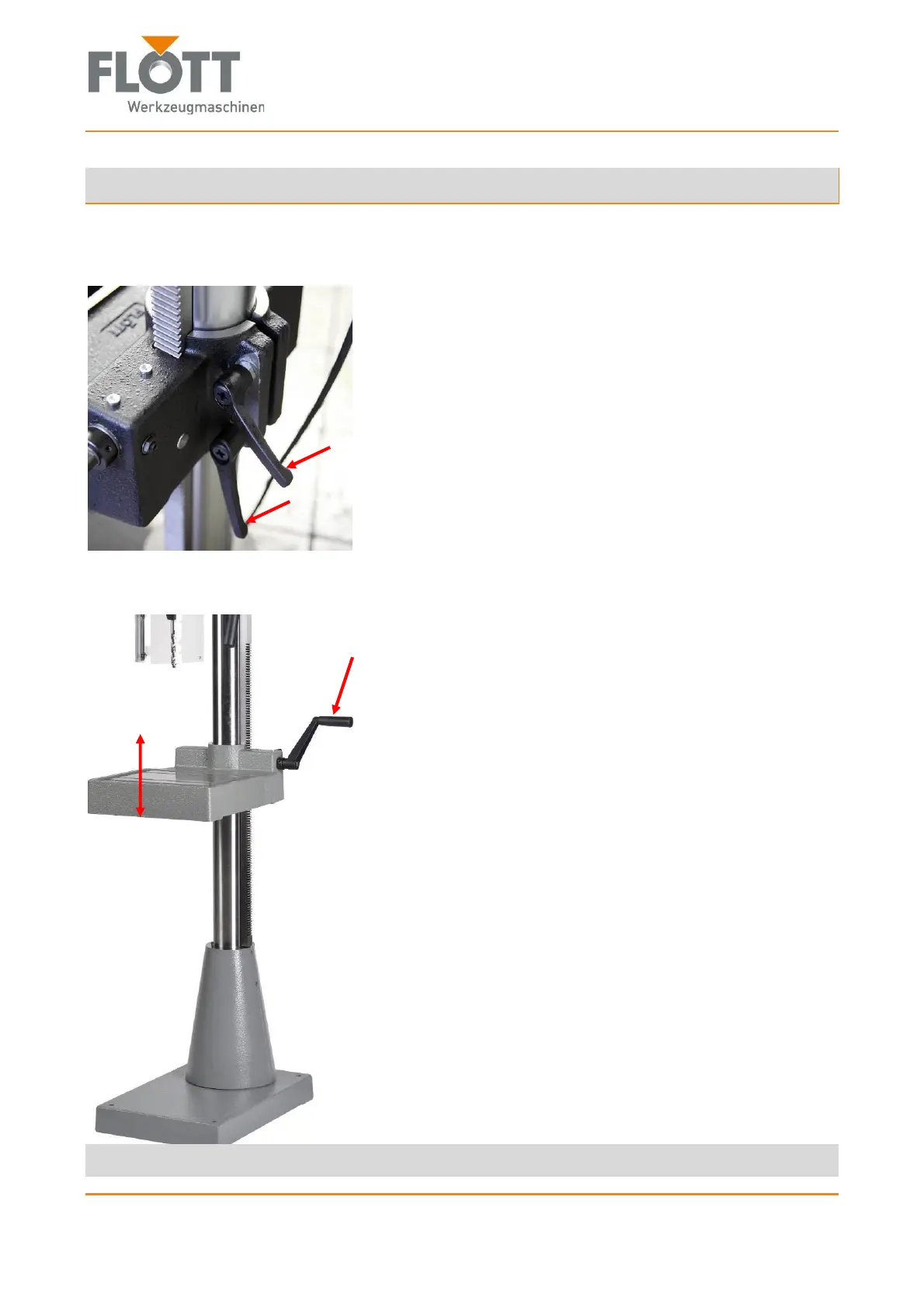

5.2 Adjusting the Height of the Machine
Depending on the design of the machine, the drilling table or the machine
head can be adjusted in height. This is always necessary if the distance from
the drilling spindle to the workpiece has to be changed.
1. Loosen the clamping lever(s) on the rear side of the ma-
chine.
2. Move the drilling table to the desired height using the
hand crank
 turn clockwise and raise the drilling table,
 turn counter clockwise and lower the drilling table.
3. Hand-tighten the clamping levers again to fix the drilling
table at the set height.
