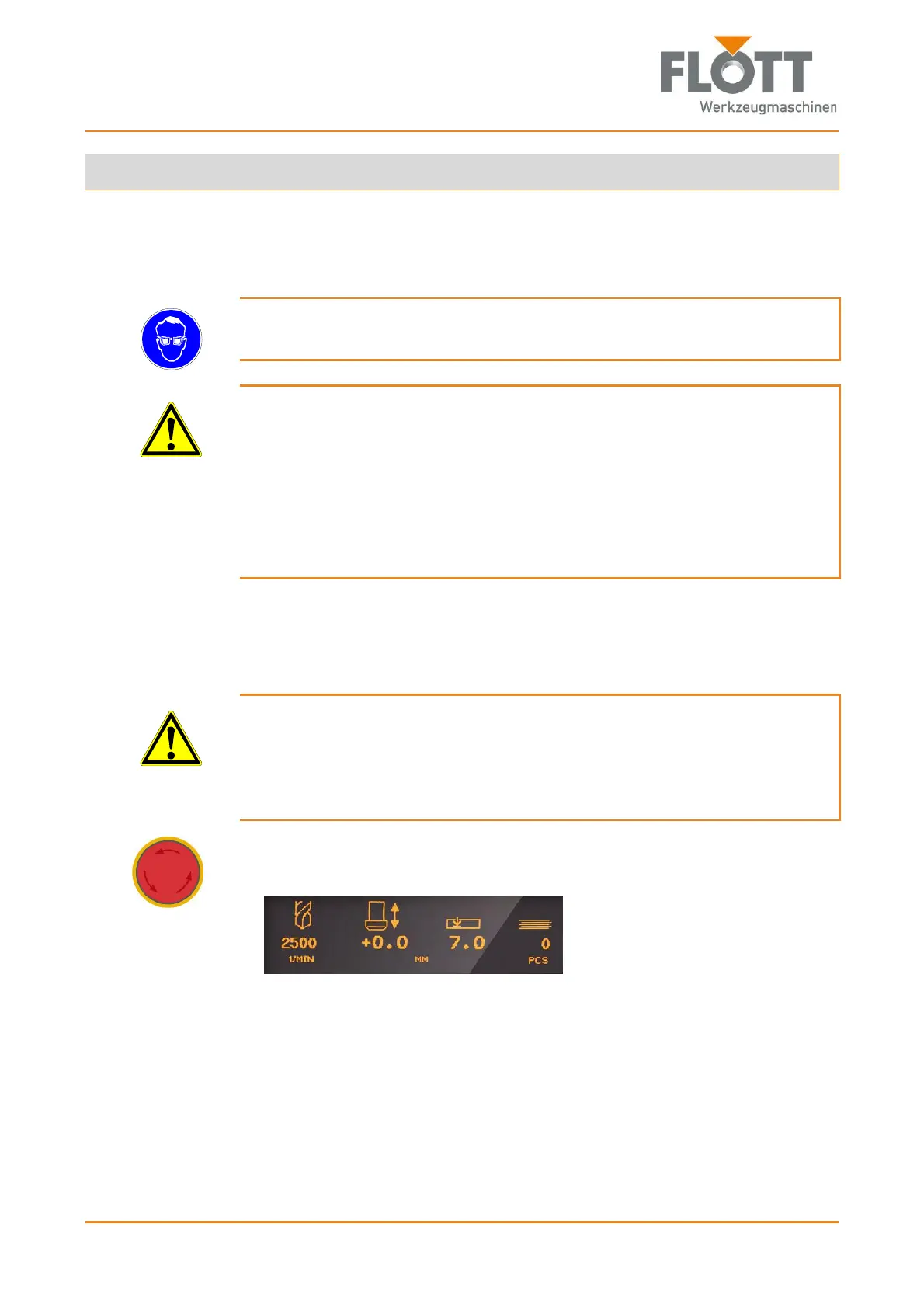

Operating the Machine
46
04/03/2020 218333
6.4 Bore with Depth Adjustment
The depth adjustment of the control system is only connected to an acoustic
signal, there is no mechanical or technical limitation of the drill hole depth.
Since the drilling process is carried out manually with the three-arm-lever, it is
also possible to drill deeper after the signal.
Use safety goggles
Always wear the necessary goggles when working on and with the machine!
Warning
Danger due to fast rotation of the drill spindle.
Fast rotation of the drill spindle can result in hair or clothing being pulled in.
This can lead to serious injuries.
Therefore, during operation of the machine
It is mandatory to wear a hairnet for long hair or a suitable headgear
Never wear gloves, neckties, bracelets, finger rings, chains or other loose
clothing.
1. Carry out all necessary work to prepare the machine (see section 5 Before
using the machine, page 30).
Then the drill is clamped and the machine set to the required height.
2. Clamp the workpiece in the mounted vise.
Attention
Danger due to repeated loads.
The repeated lifting of heavy weights can lead to unfavourable body loads and
rapid fatigue. When handling workpiece weights > 10 kg, use a suitable hoist
for loading and unloading operations.
3. Unlock the emergency stop button. Only for 20.23.25 Plus
Then the control system is restarted and the display appears:
After starting the control system, the drilling type Drilling shall always be
preselected.
