Operating the Machine
218333 04/03/2020
43

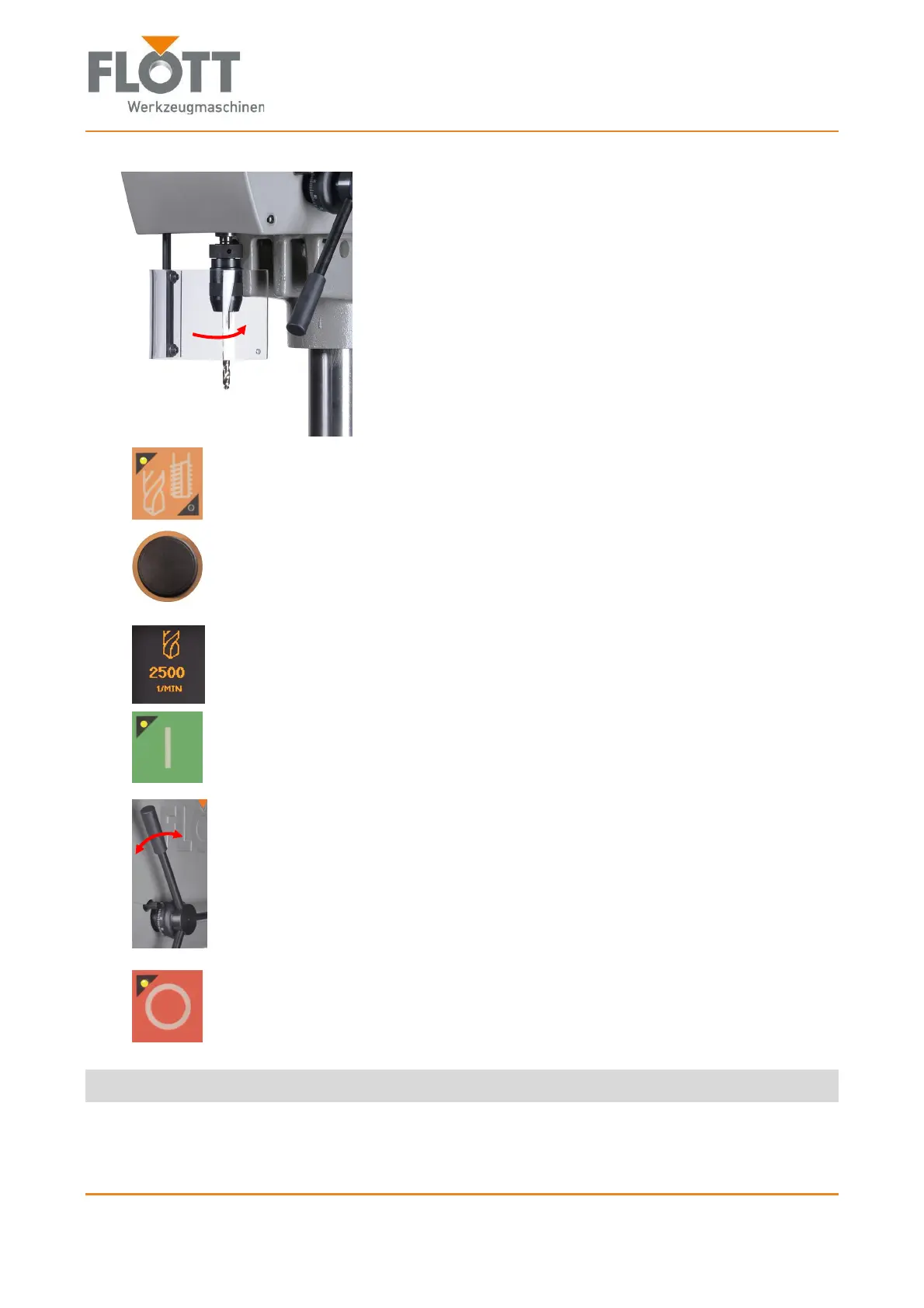

4. Before starting the machine, swivel the drill guard into its
protection position in front of the cutter.
This will activate the protective switch, which releases the
operation of the machine.
5. If necessary:
Press the push-button to select the drill type Drilling.
The top left lamp lights when the drilling mode is selected.
6. Select the appropriate speed for the inserted drill bit and workpiece by
pressing the rotary switch/push-button
Set the speed (rpm) by turning slowly and
Apply the speed in the control system by pressing.
The set speed can be read off the display.
7. Press the push-button to start the machine.
The lamp lights when the drive is turned on and the spindle is rotated.
8. Use the three-arm-lever to slowly move the drill bit towards the workpiece
by pressing down on the three-arm-lever.
Drill the through hole in the workpiece.
9. Then return the three-arm-lever back to its initial position.
10. Press the push-button to stop the machine.
The lamp lights up when the drive is off.
The machining operation is over.
