Spare Parts List and Drawings
218333 04/03/2020 81
This does not apply to parts no longer manufactured
due to technical innovations!
Order number
Fig. Item Designation SB 18 Plus TB 18 Plus TBZ 18 Plus
3 1 Motor holding bracket 223084 223084 223084
3 2 Motor 0,75 kW 212791 212791 212791
3 2 frequency converter 218376 218376 218376
3 3 Flange bearing 201401 201401 201401
3 4 Grooved ball bearing DIN 625 *
30x62x16 – 6205 2Z
006793 006793 006793
3 5 Running bush 218351 218351 218351
3 6 Spindle pulley 218421 218421 218421
3 7 Ribbed V-belt DIN 7867 *
8PJx1080 mm
010152 010152 010152
* Wear part

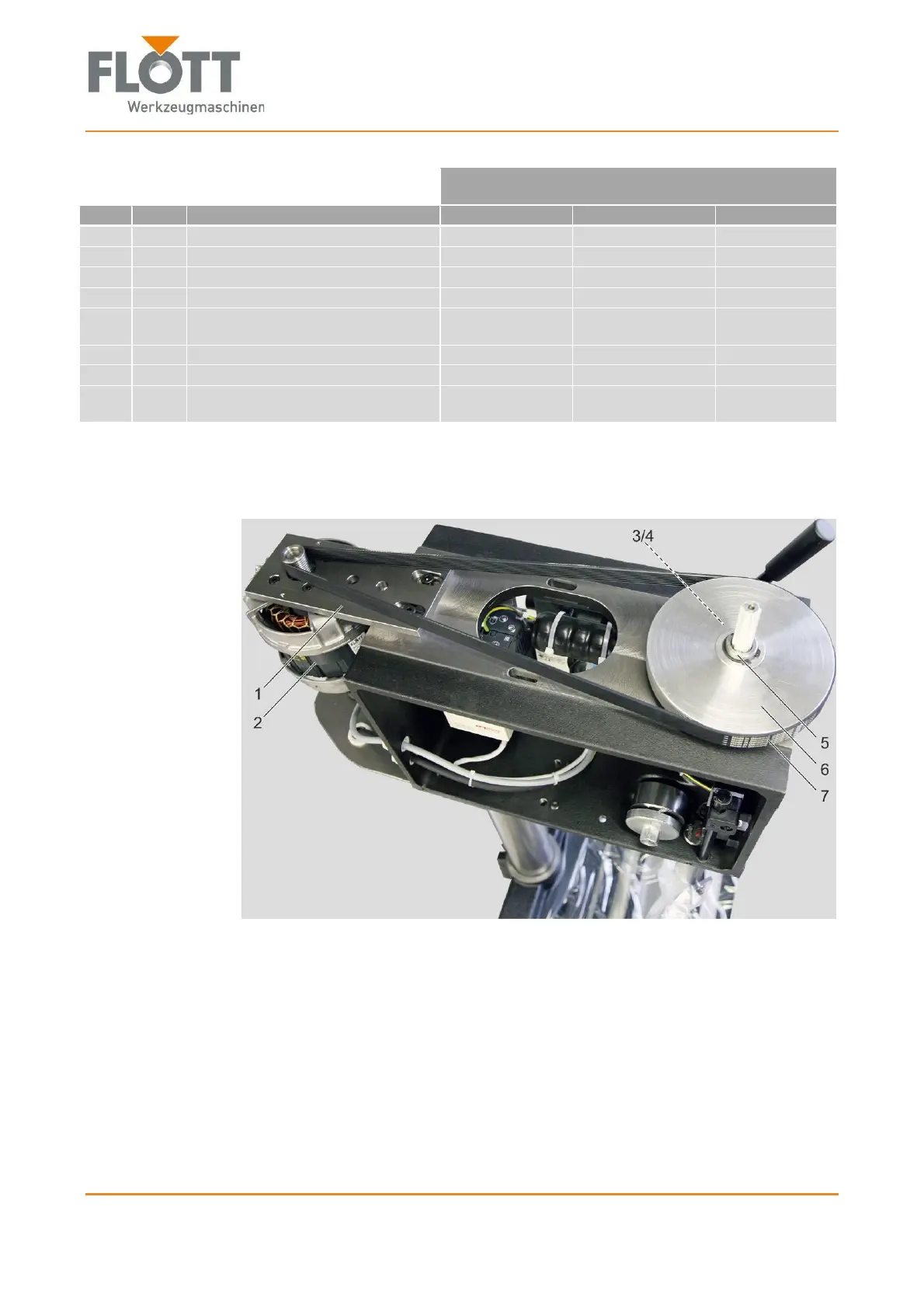

Fig. 3: SB/TB/TBZ P18 Plus
