HYPLEX PRIME PUMP
Maintenance & Service Manual

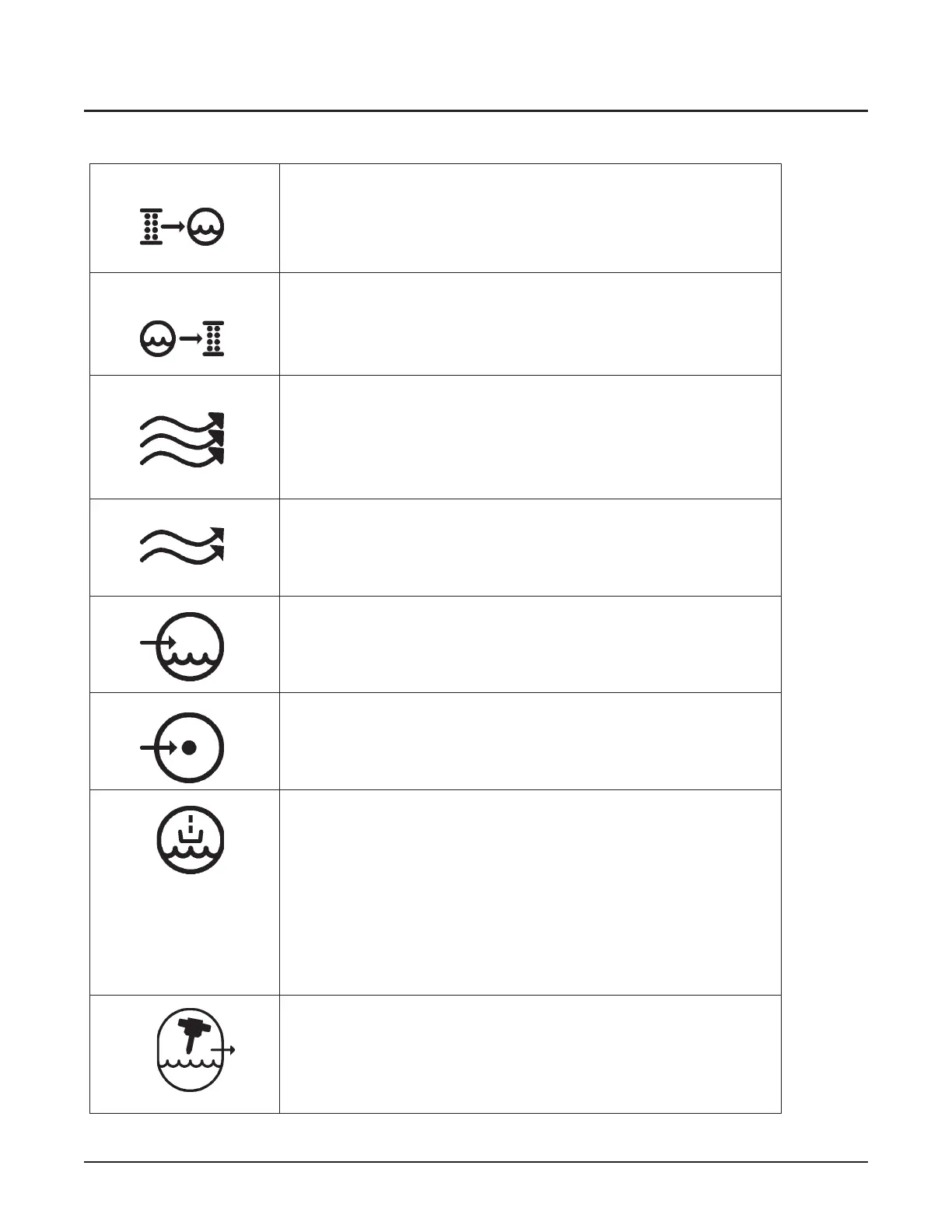

Interface labels
Inletwaterpressure(postfilter)
This gauge indicates water pressure after the inlet water has passed through
the 0.5 micron and 1.0 micron water filters.
Inlet water pressure (pre filter)
This gauge indicates water pressure before the inlet water has passed through
the 0.5 micron and 1.0 micron water filters.
High air pressure
This gauge indicates the air pressure supplied to the UHP pressure control
valve (PCV) as controlled by the regulator below the gauge.
On dual-pressure machines: this indicates the maximum air pressure setting.
Low air pressure
On dual-pressure machines, this indicates the minimum air pressure setting.
Inlet water connection
Connect inlet water at recommended specification.
Air inlet connection
Connect inlet air at recommended specifcation.
PCV to drain
Connect a drain line directly to an outlet drain at recommended specifica
-
tions.
CAUTION
To ensure that the PCV does not suffer damage due to siphoned catcher tank
water, connect the PCV drain line directly to an outlet drain,
or suspend the line above the catcher tank water level.
High-pressure water outlet
Outlet port for ultrahigh-pressure (UHP) water.
