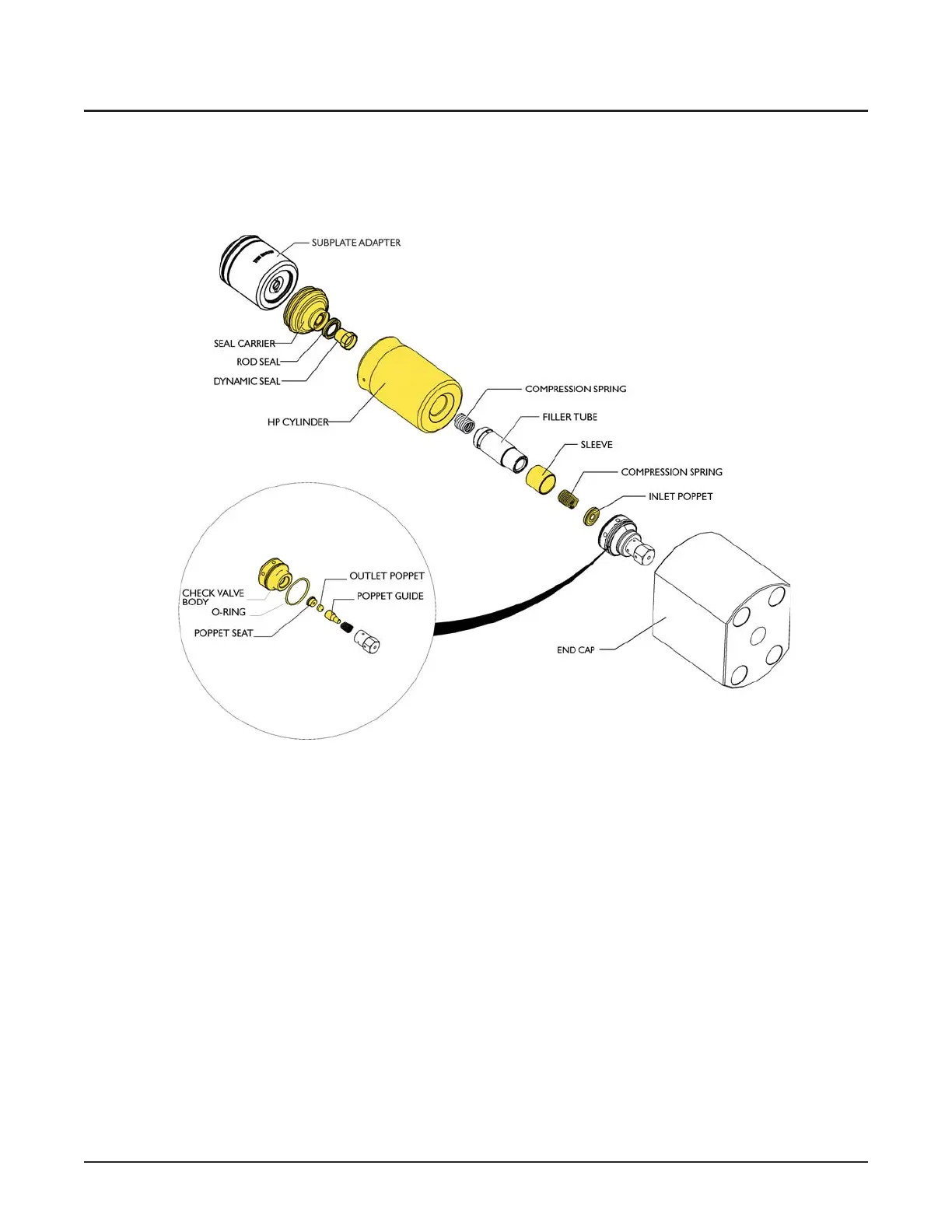

Installing the Major Maintenance kit
Use this procedure when installing the Major Maintenance kit on your HyPlex Prime pump. This service is performed
at every required maintenance interval for the life of the equipment. The complete service schedule for the major
maintenance kit (and the minor maintenance kit) is described on Page 26.
Tools
•
Pressure loading tool, 049512-1
•
Combination wrenches (14-32 mm)
•
½ in. drive socket set (14-32 mm)
•
½ in. torque wrench (0-100 ft-lb)
•
Feeler gauge set
•
Screwdriver set
•
Snap-ring pliers
•
3/
8
in. hex bit
•
½ in. hex bit
•
Rebuild clamp or 6 in. soft jaw vise
Maintenance kit
•
Major maintenance kit, 050624-2
Service notes
•
All parts of the kit should be installed at the same
time - do not replace components individually.
•
All components should be clean and free of debris
prior to assembly. Keeping the work area clean is im
-
portant while working on the equipment.
•
Read the entire procedure through before beginning
service, paying particular attention to safety instruc
-
tions.
CAUTION
Failure to follow these step-by step instructions
could cause premature parts failure
and/or damage to the equipment.
© Flow International Corporation M-416 | 67
CHAPTER 4
Service
