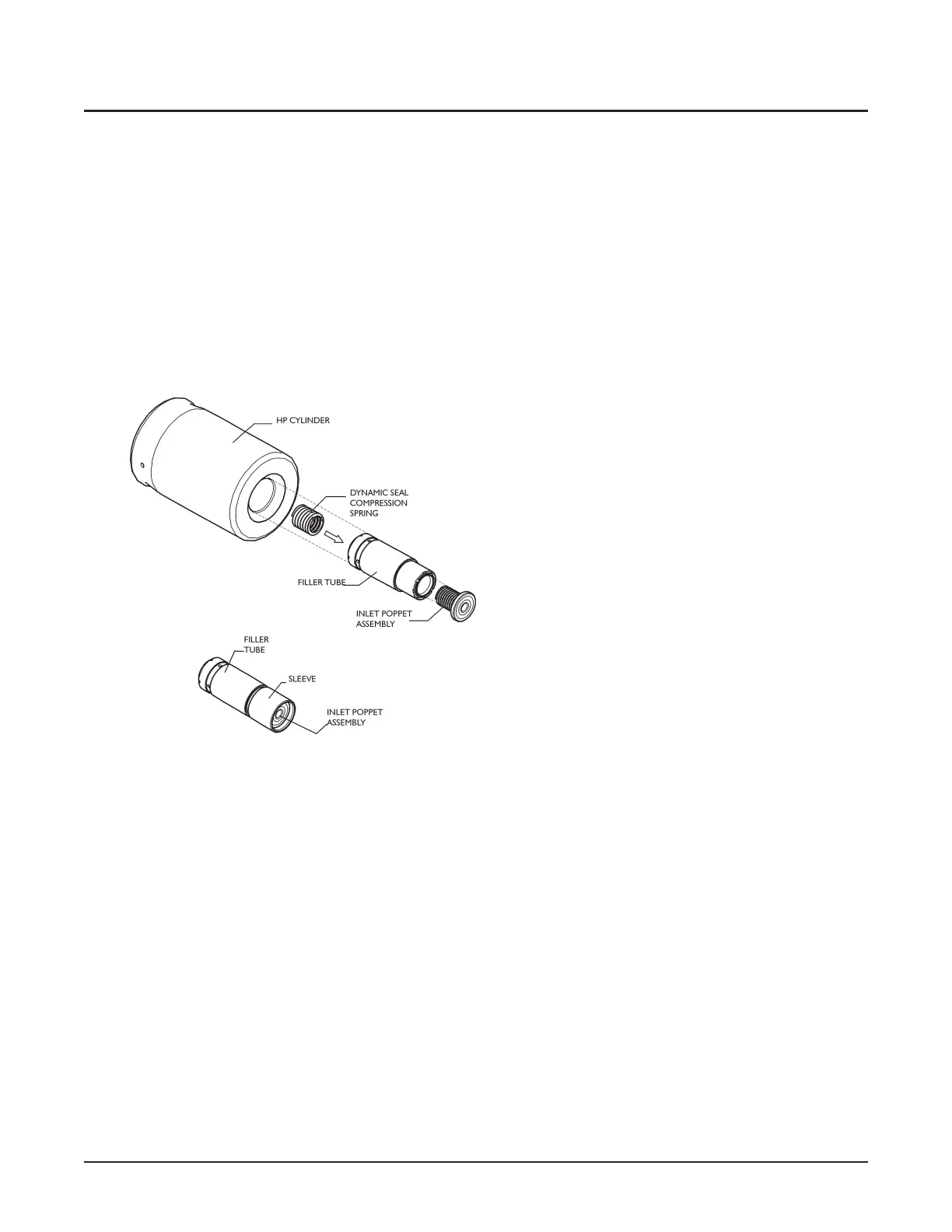

Assemble the filler tube
1. Place the dynamic seal compression spring into the
tapered end of the filler tube.
2. Insert the inlet poppet assembly into the filler tube,
spring end first.
3. Partially install the filler tube sleeve so that it sur
-
rounds the inlet poppet and spring.
Note: The filler tube sleeve helps align the poppet
with the check valve body and prevents pinching of
the poppet between the check valve and the filler
tube during assembly.
4. Insert the filler tube, spring end first, into the
high-pressure cylinder, making sure to engage the
spring into the dynamic seal.
Repeat for the remaining filler tubes.
