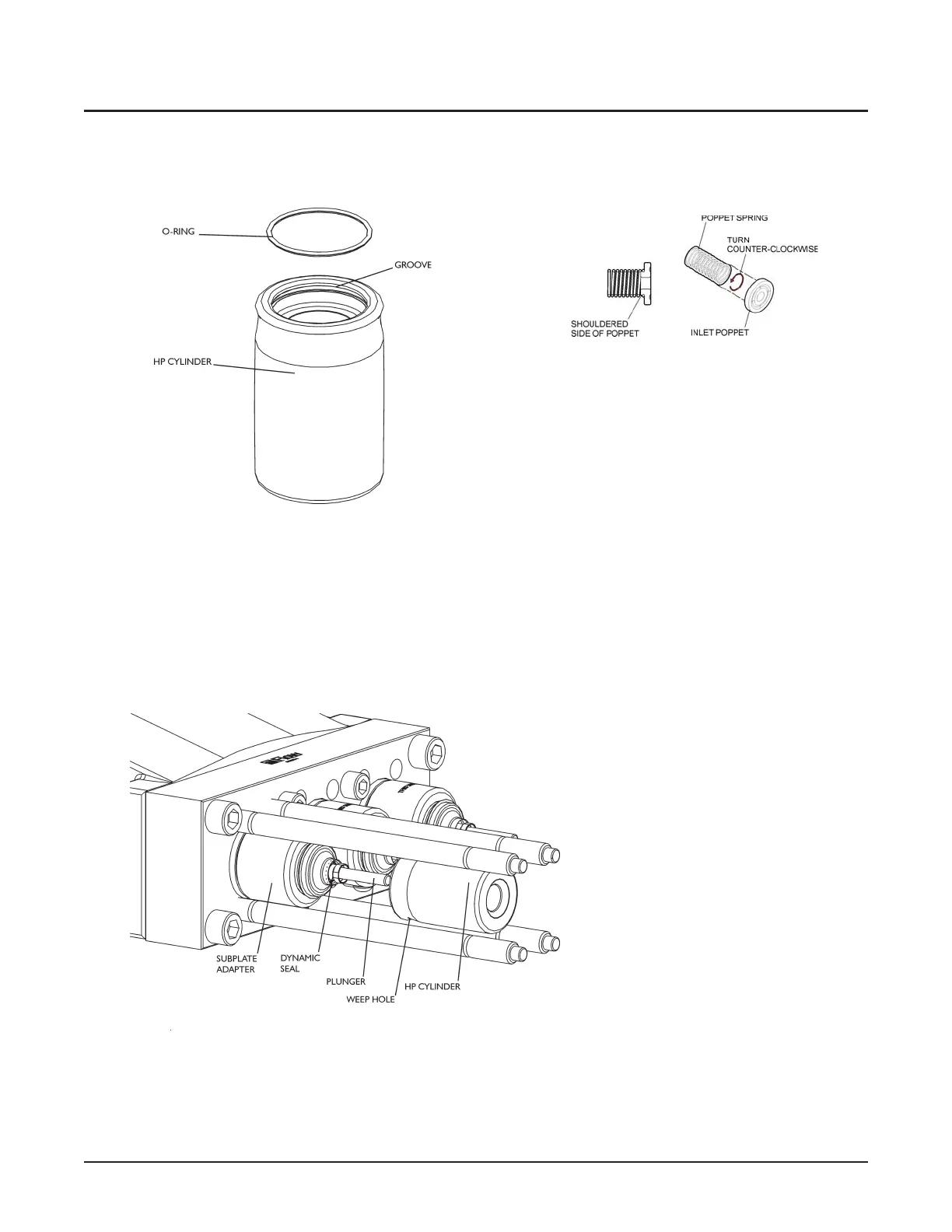

Install the high-pressure cylinder
1. Lubricate the bew o-ring with o-ring lube and place
it in the groove of the new high-pressure cylinder.
2. Slide the new high-pressure cylinder over the
plunger assembly and seat it against the seal carrier.
Position the cylinders with weep holes facing down-
ward.
Note: A small amount of force will be needed to
seat the cylinder against the seal carrier.
Repeat for the remaining high-pressure cylinders.
Assemble the inlet poppet
1. Place the new inlet poppet spring over the shoul
-
dered side of the new inlet poppet.
2. Apply pressure to the spring and rotate counter
-
clockwise until it snaps into place. Be sure the spring
is firmly attached.
Repeat for the remaining inlet poppets.
