ATEX Directive
Units that comply with the require-
ments of ATEX Directive 2014/34/EU
or 94/9/EC may be used in areas in
which there is an explosion hazard if
they have been tested and approved as
specified therein.
There is a copy of the EU Decla-
ration of Conformity to ATEX
Directive 2014/34/EU in the
appendix to these instructions.
IECEx
The IECEx approval is an international
standard for equipment that may be
used in a potentially-explosive atmos-
phere.
Bureau Veritas has subjected the de-
sign concept, construction, quality as-
surance and the finished product to the
specified examinations.
By issuing the
IECEx EPS 15.0046X
certificate, Bureau Veritas confirms
conformity with the requirements.
You will also find a copy of this certifi-
cate in the appendix.
For voltage and temperature
limits, please see the type plate.
Uses and function
Uses
The unit is intended for operating ball
valves, butterfly valves or other valves
with an operating angle between 0°
and 360°.
Function

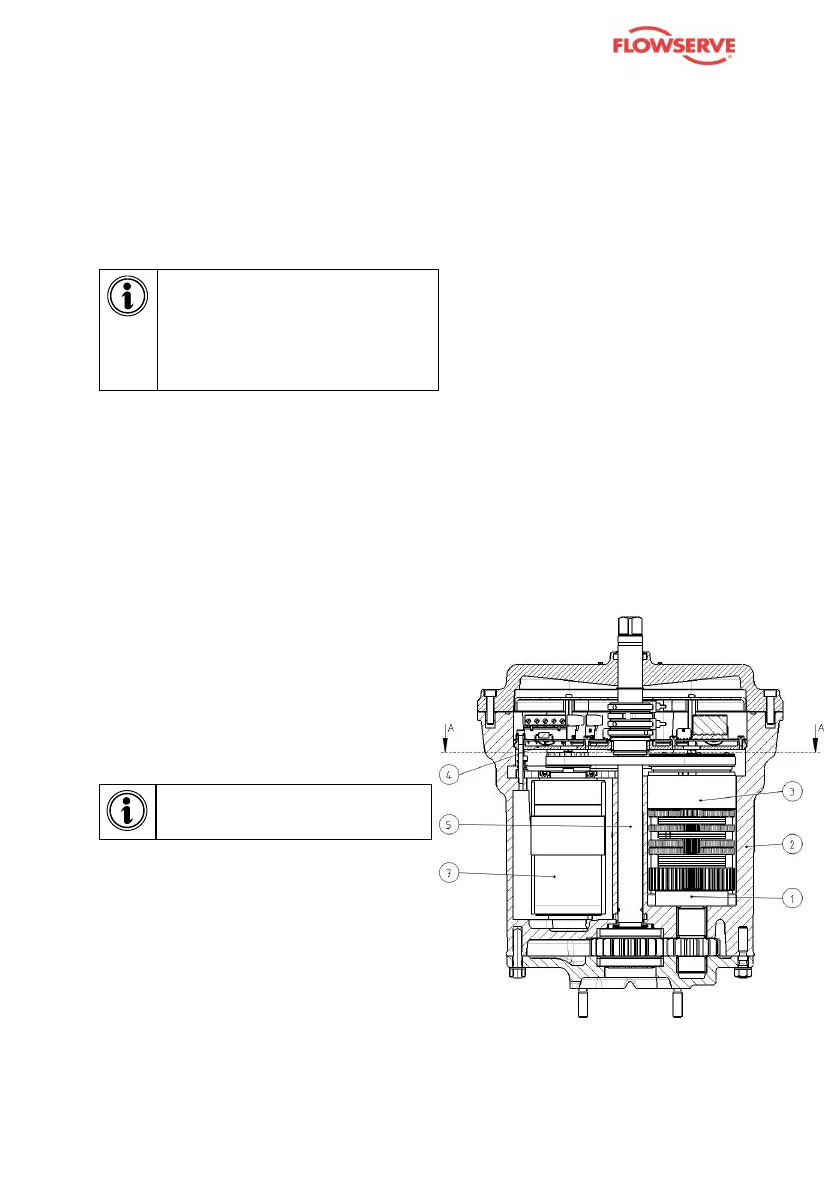

In the body of the unit (2), there are
sub-assemblies which impart a rotary
motion to the operating shaft (5).
By switching on the electric motor (7),
the gear wheel on the released electric
brake (3) is rotated by timing belt (9).
This motion is transmitted by the
planetary gear (1) and gears in the
lower part of the unit to the operating
shaft (5).
According to the actuator model, vari-
ous types of power supply and different
voltages may be used.
