Measuring Examples 7 - 15
Set the left cursor to the low level of the waveform:
see Figure 7-14. This is the 0% reference point.
Set the right cursor to the high level of the waveform:
see Figure 7-14. This is the 100% reference point.
The test tool instantly displays the rise time: "156 ns".
(See Figure 7-14.)
To identify the points on the slope where the measurement
has occurred, you can use the markers on page 3 within
the More Scope window.

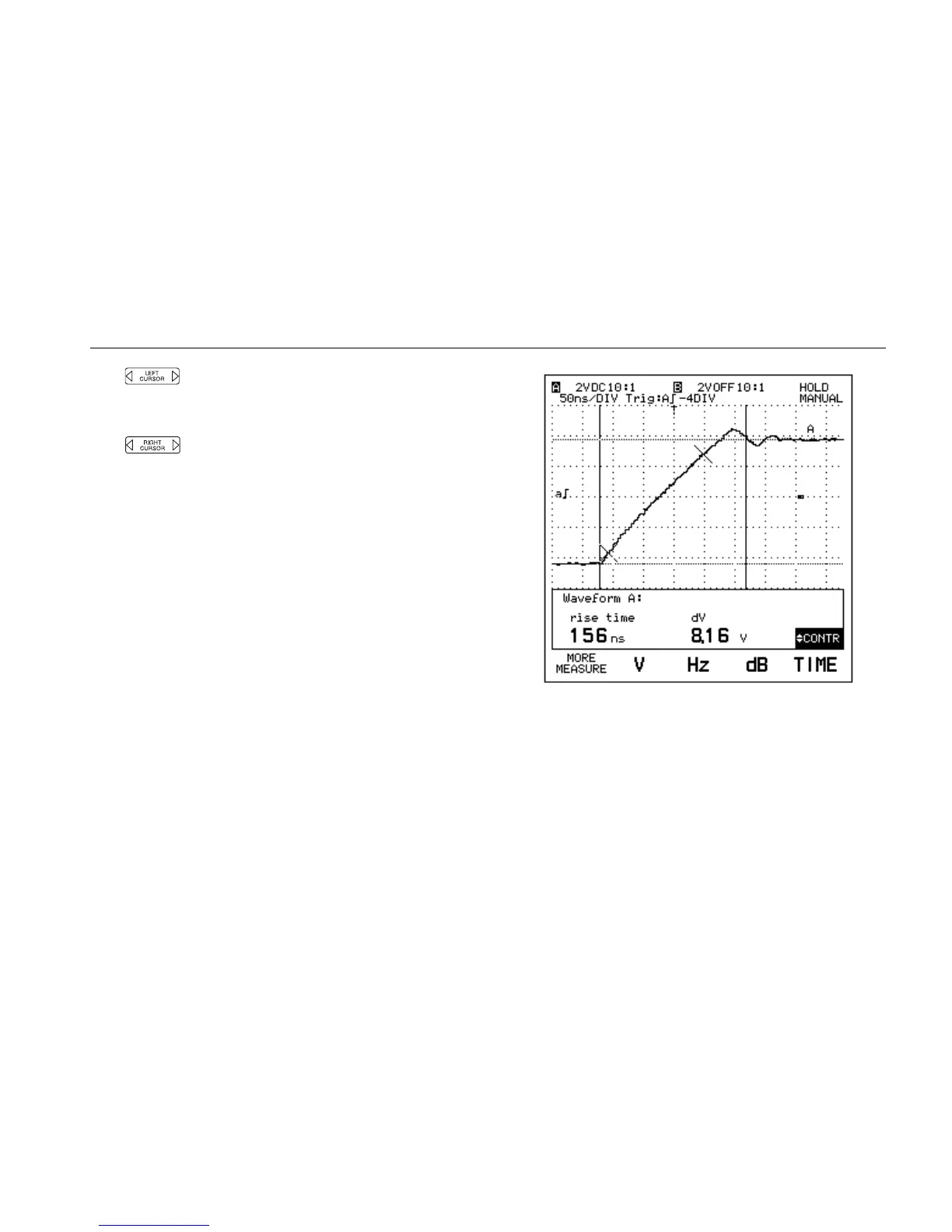

Figure 7-14. Rise Time Measurement (with markers)
