Making Measurements
Connecting to the Circuit Under Test
XW Warning
To avoid possible electric shock or personal injury:
• Remove all power from the circuit under test and discharge circuit
capacitance before testing a circuit with the Meter.
• Connect the test leads to the Meter inputs before connecting to the
circuit under test.
• Before and after testing, confirm that the Meter does not indicate the
presence of a hazardous voltage at the terminals. If the Meter beeps
continuously and a hazardous voltage is shown on the display,
disconnect test leads and remove power from the circuit under test.
To connect to the circuit under test:
1. Rotate the safety shutter to expose the terminal connections.
2. Insert the test leads in the terminals shown (Figure 8), and connect the test
leads to the circuit under test.
F
U
N
C
T
IO
N
O
N
/
O
F
F
U
P
S
C
R
O
L
L
IR
P
O
R
T
D
O
W
N
E
N
T
E
R
T
E
S
T
ASW09F.EPS

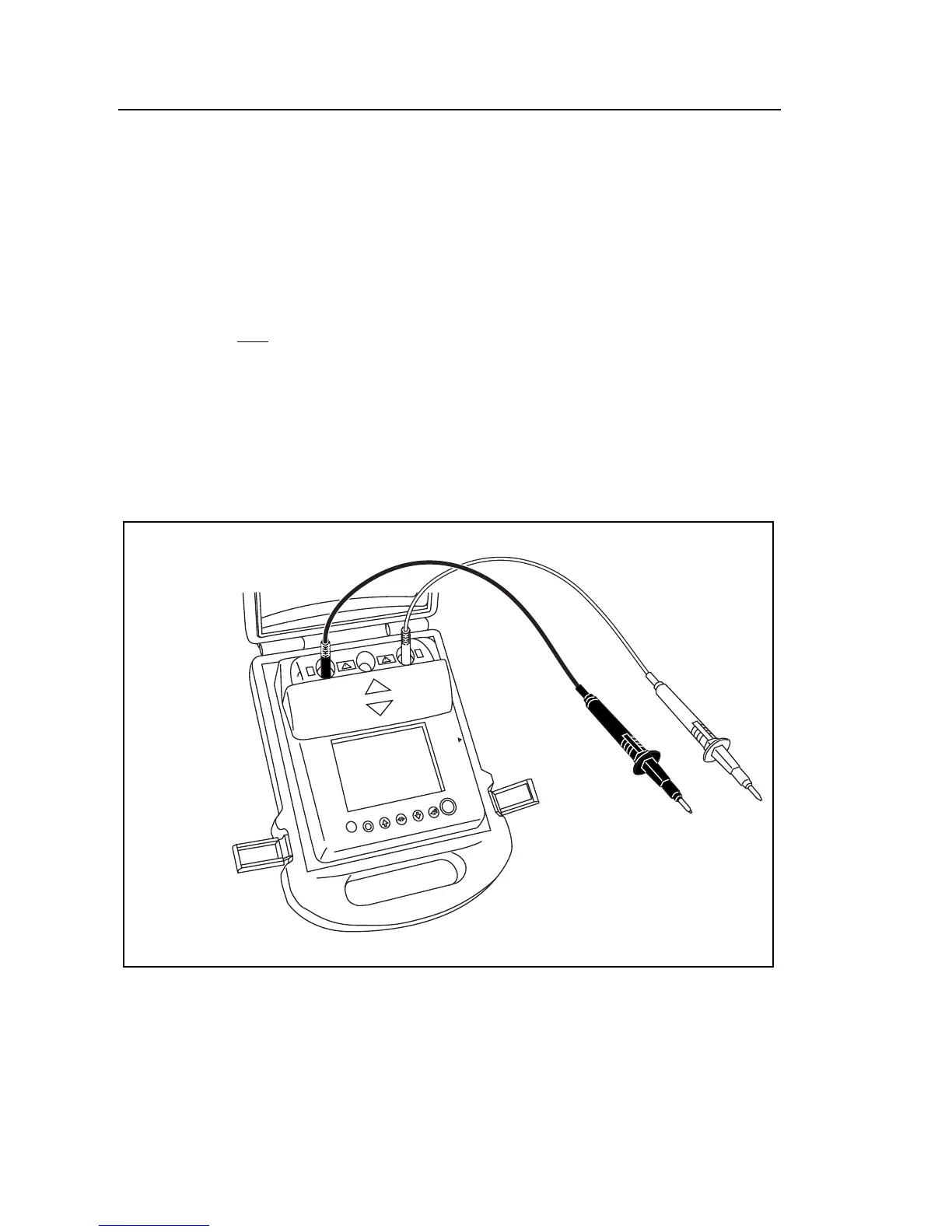

Figure 8. Connecting to the Circuit Under Test

Fluke 1550B Specifications

General

Insulation Test Voltage	250 V, 500 V, 1000 V, 2500 V, 5000 V
Safety Rating	CAT III 1000 V, CAT IV 600 V
Live Circuit Detection	Yes
Guard Terminal	Yes
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Display	Digital
Power Supply	12 V rechargeable lead-acid battery
Test Voltage Accuracy	±2%
Automatic Calculation	DAR, PI
