2. Press e to access the test results storage locations. The ID tag location
appears on the bottom-right of the display.
3. Press
V or d to step through the stored locations.
4. Stop at the location you want to view.
5. Press
R to view the stored test data for a specific test. Test data appears
on the alphanumeric text display and on the LCD.
6. Press
e to return the Meter to Test Voltage mode.
Downloading Your Test Results
You can use Quicklink software to download all of your stored test data to a
PC. An infrared adapter is supplied with the Fluke 1550B MegOhmMeter for
use in downloading stored test data. Figure 9 shows the location of the IR port
on the Meter.
IR
PORT
IR Port
IR Device
ASW04F.EPS

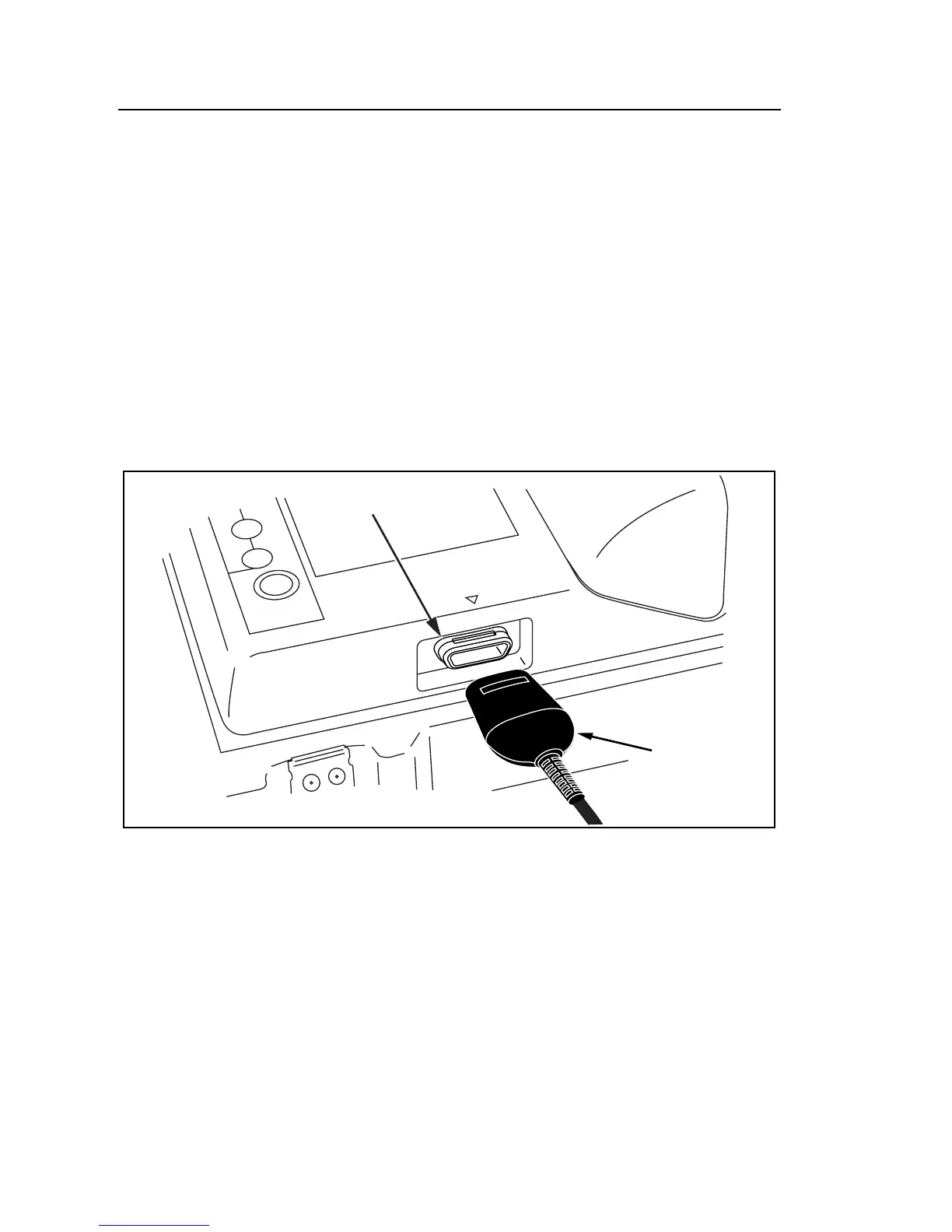

Figure 9. IR Port on 1550B MegOhmMeter
Installing the Quicklink Software
You need to install the Quicklink software on your PC to download stored test
data.
To install the Quicklink software, insert the Quicklink disk in your PC and follow
the installation instructions on the disk.

Fluke 1550B Specifications

General

Insulation Test Voltage	250 V, 500 V, 1000 V, 2500 V, 5000 V
Safety Rating	CAT III 1000 V, CAT IV 600 V
Live Circuit Detection	Yes
Guard Terminal	Yes
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Display	Digital
Power Supply	12 V rechargeable lead-acid battery
Test Voltage Accuracy	±2%
Automatic Calculation	DAR, PI
