Fluke 1550B User Manual

MegOhmMeter
Viewing Results Stored in Memory
17
Viewing Results Stored in Memory
Note
Parameters not appropriate for a test are shown as INVALID .
The Meter can store 99 sets of test data, including:
⇒ Tags
⇒ Ramp on or off
⇒ Insulation Resistance
⇒ Timer reading at termination of test (Timer)
⇒ Test Voltage Selected (TV)
⇒ Actual Test voltage (V)
⇒ Capacitance (C)
⇒ Polarization Index (PI)
⇒ Dielectric absorption ratio (DAR)
⇒ Test current (I)
⇒ Reason for ending the test
⇒ Limit – off or timer setting (1 to 99 minutes) (T. Limit)
To view stored test data:
1. With the Meter turned on, press the
H button to select the RESULTS
function.
Note
When a voltage is present at the terminals, that voltage is always
shown on the top-center of the display, regardless of whether that
voltage is sourced by the Meter or is from the circuit under test.
00k
0
0M
G
V
0G
T
00G
GT
Mk
00M
M
000V 500V 250V
5000V 2500V

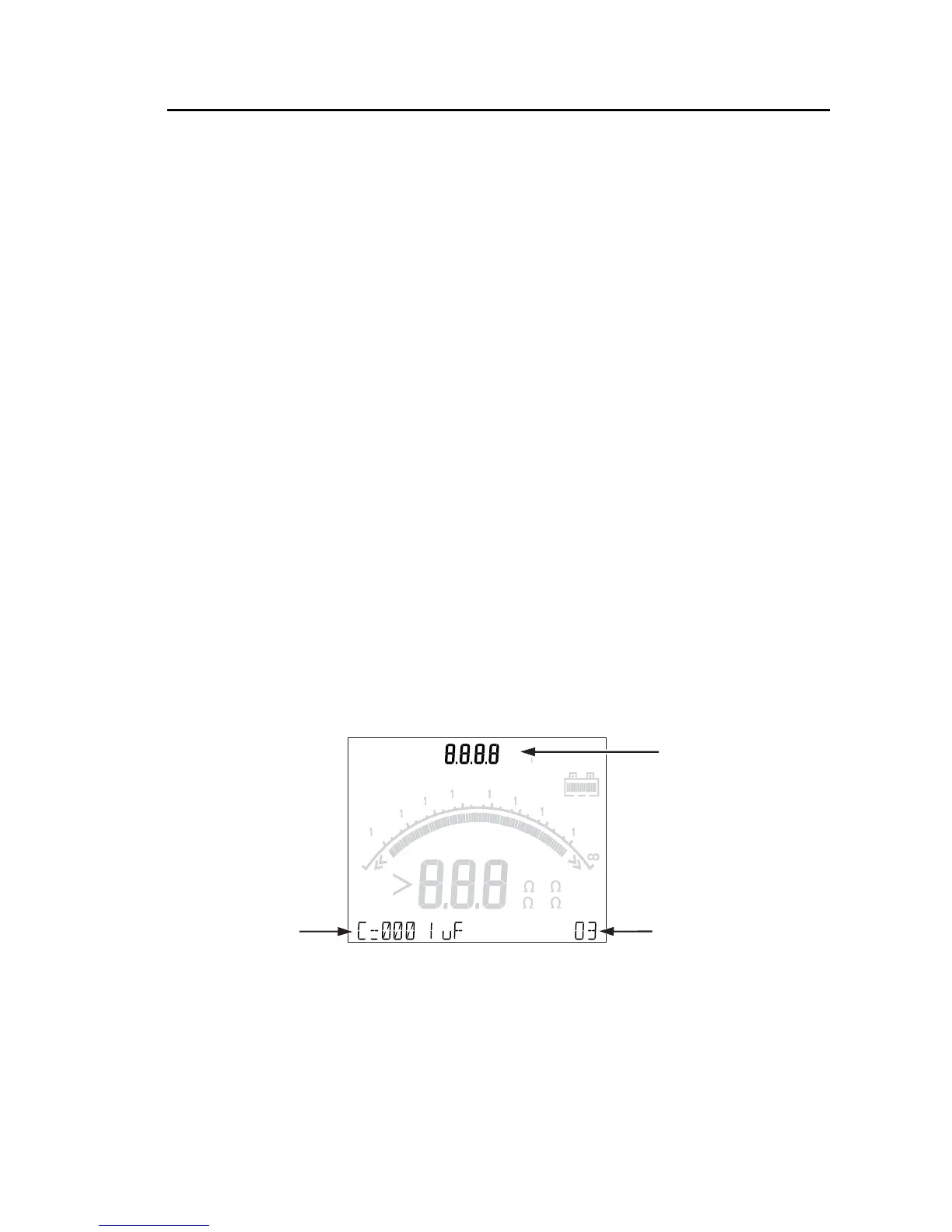

Stored Test
Results
Stored
Locations
Voltage at
Terminals
of Tester
ASW06F.EPS

Fluke 1550B Specifications

General

Insulation Test Voltage	250 V, 500 V, 1000 V, 2500 V, 5000 V
Safety Rating	CAT III 1000 V, CAT IV 600 V
Live Circuit Detection	Yes
Guard Terminal	Yes
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Display	Digital
Power Supply	12 V rechargeable lead-acid battery
Test Voltage Accuracy	±2%
Automatic Calculation	DAR, PI
