Operating the Tester
Using the Rotary Switch

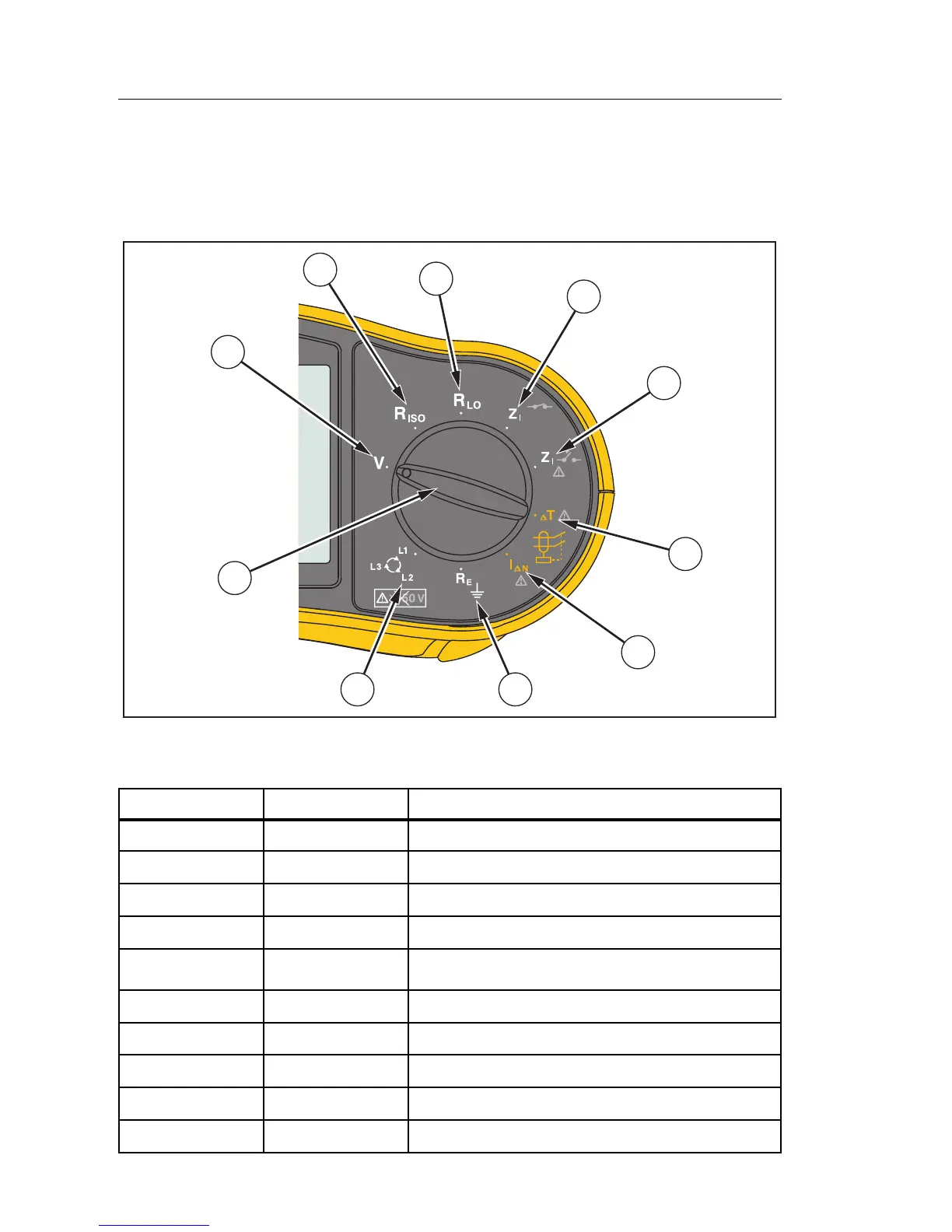

Use the rotary switch (Figure 1 and Table 4) to select the type of test you want
to perform.
NO TRIP
TRIP
5
6
89
10
7
2
3
4
1
apx013f.eps
Figure 1. Rotary Switch
Table 4. Rotary Switch
Number Symbol Measurement Function
 V Volts.
  Insulation resistance.
  Continuity.
  Loop impedance — No trip mode.


Loop impedance — Hi current trip mode.
  RCD tripping time.
  RCD tripping level.
  Earth resistance.
  Phase rotation.
 N/A Rotary switch.

Fluke 1652C Specifications

General

Test Voltage	50 V, 100 V, 250 V, 500 V, 1000 V
Loop and Line Resistance	0.01 Ω to 2000 Ω
RCD Testing	Yes
Display	Digital
Frequency	45 Hz to 65 Hz
Phase Sequence Indicator	Yes
Power Supply	6 x 1.5 V AA batteries
Weight	1.2 kg
Voltage AC	500 V
Voltage DC	500 V
RCD Trip Current	10 mA, 30 mA, 100 mA, 300 mA, 500 mA
RCD Trip Test	1x
Safety Standards	EN 61010-1
Operating Temperature	-10°C to +50°C
Earth Resistance Test	Not available
