Fluke 1652C User Manual

Electrical Installation Tester
Operating the Tester
7
Understanding the Pushbuttons
Use the pushbuttons (Figure 2 and Table 5) to control operation of the tester,
select test results for viewing, and scroll through selected test results.
19
20
11
18
12
14
15
13
16
17
apx012f.eps

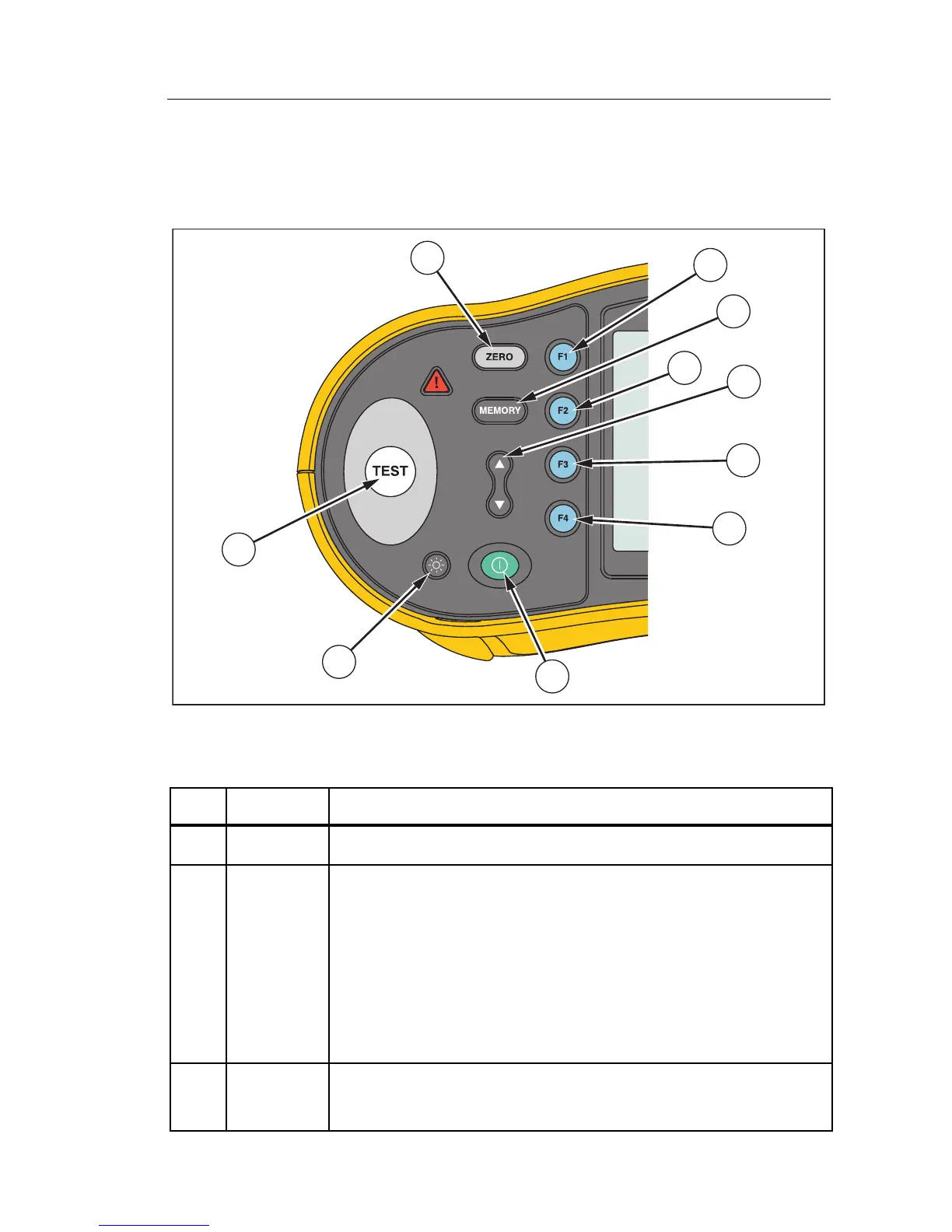

Figure 2. Pushbuttons
Table 5. Pushbuttons
No. Button Description
 
Zero test lead resistance offset.
 
• Loop input select (L-N, L-PE).
• Voltage input select (L-N, L-PE, N-PE).
• Insulation test: L (P), L-N (P/N), L-PE (P/E), or N-PE
(N/E) in extended documentation mode.
• RCD current rating (10, 30, 100, 300, 500, 1000 mA or
VAR).
• Memory SELECT.
 
• Enters Memory mode.
• Activates memory soft key selections (, , , or ).

Fluke 1652C Specifications

General

Test Voltage	50 V, 100 V, 250 V, 500 V, 1000 V
Loop and Line Resistance	0.01 Ω to 2000 Ω
RCD Testing	Yes
Display	Digital
Frequency	45 Hz to 65 Hz
Phase Sequence Indicator	Yes
Power Supply	6 x 1.5 V AA batteries
Weight	1.2 kg
Voltage AC	500 V
Voltage DC	500 V
RCD Trip Current	10 mA, 30 mA, 100 mA, 300 mA, 500 mA
RCD Trip Test	1x
Safety Standards	EN 61010-1
Operating Temperature	-10°C to +50°C
Earth Resistance Test	Not available
