Making Measurements
Measuring Volts and Frequency
apx002f.eps

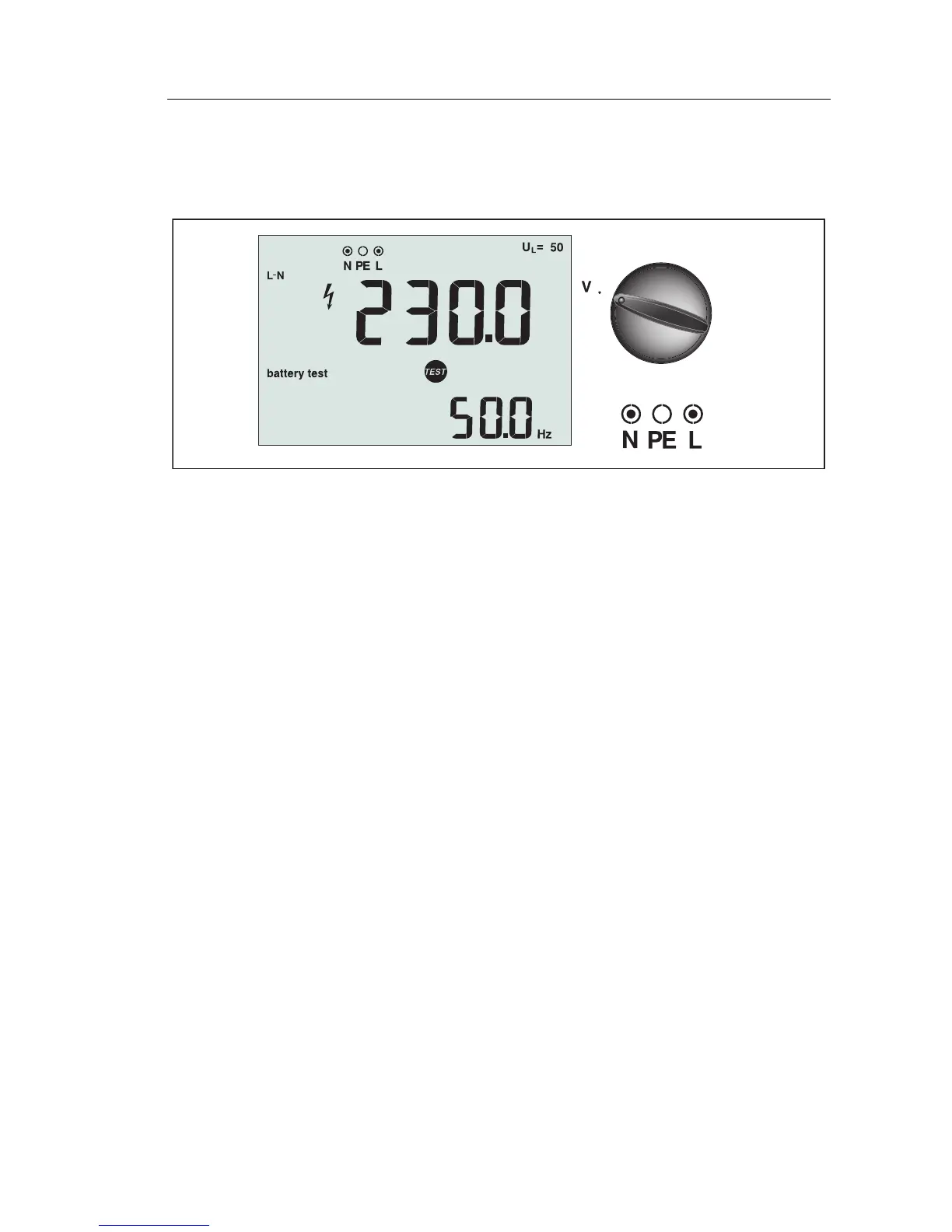

Figure 8. Volts Display/Switch and Terminal Settings
To measure voltage and frequency:
1. Turn the rotary switch to the V position.
2. Use all (red, blue, and green) terminals for this test. You can use test leads
or mains cord when measuring AC voltage.
• The primary (upper) display shows the AC voltage. The tester reads
AC voltage to 500 V. Press  to toggle the voltage reading between
L-PE, L-N, and N-PE.
• The secondary (lower) display shows mains frequency.
