Front-Panel Operation
How to Setup Multiple Amplifiers 2
2-13
Fluke 52120A #1
Fluke 52120A #2
gpp017.eps

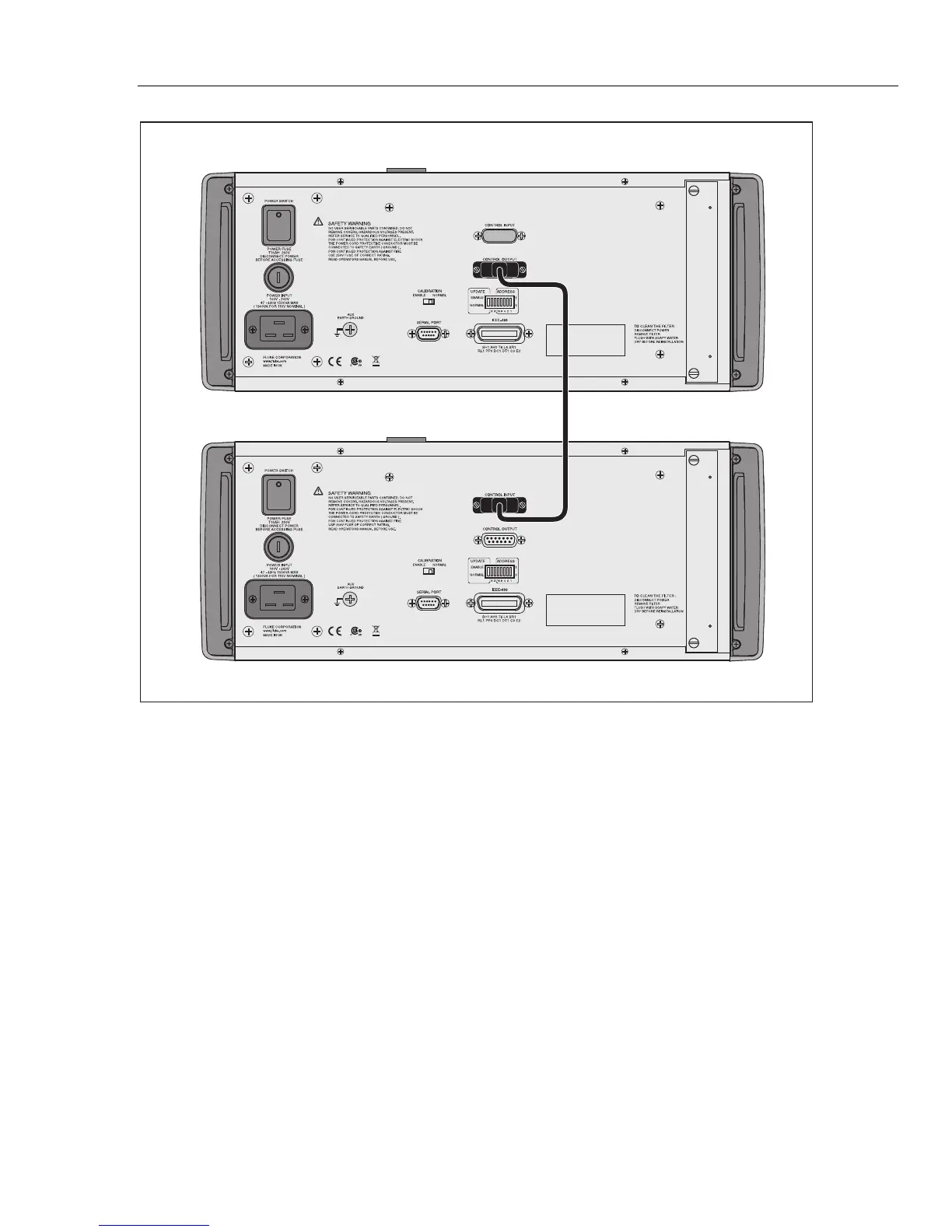

Figure 2-5. Master to Slave Connections
The first Product is the master and the second the slave. Connect the input signal to the
master Product front-panel terminals. The second Product senses the input signal through
the control cable. The two Products are controlled through the front panel of the master
Product. All the keys but the STBY key are turned off on the slave Product.
Connect the outputs of amplifier 1 and 2 to the load as shown in Figure 2-6.
