Front-Panel Operation
How to Setup Multiple Amplifiers 2
2-15
gpp006.eps

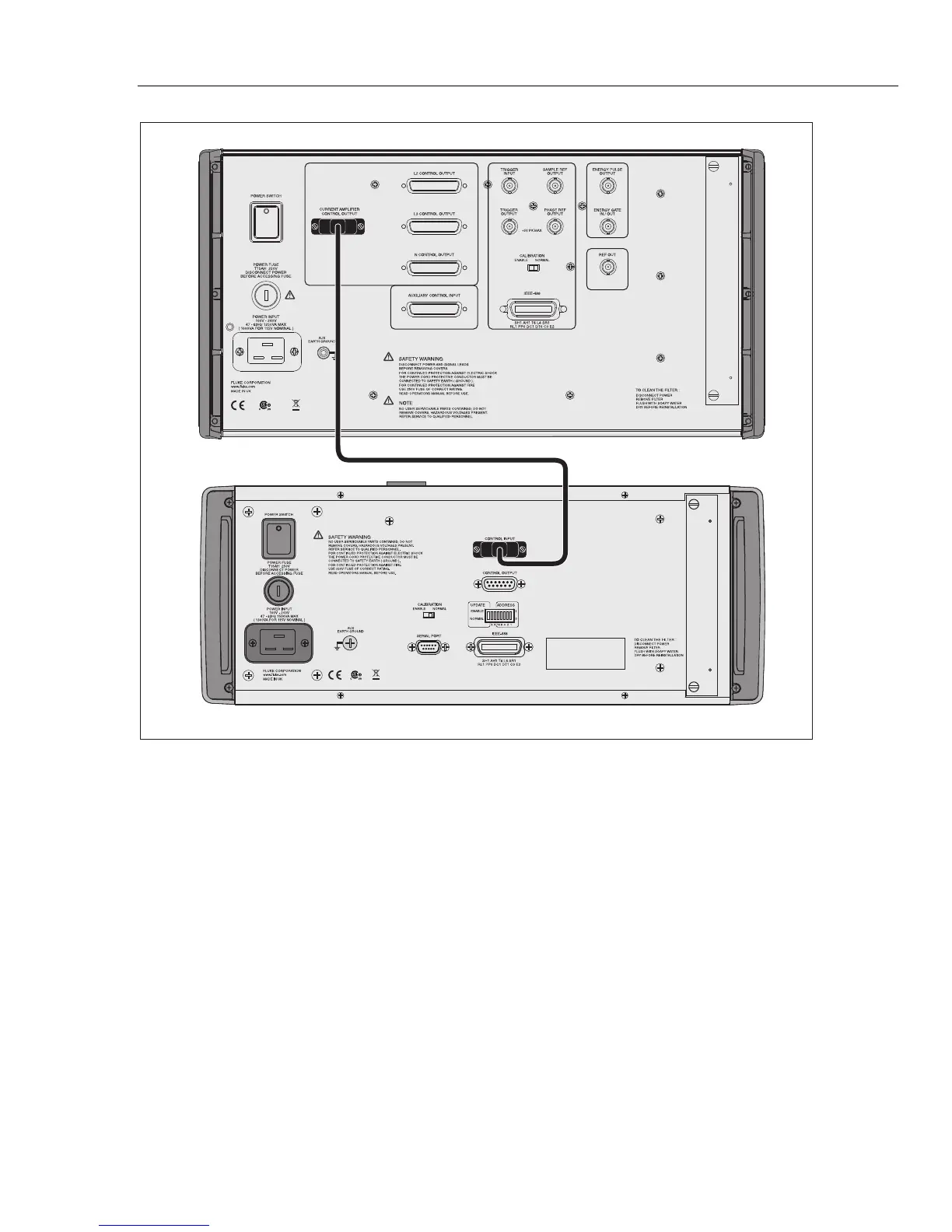

Figure 2-7. Feedback Cable Connections
See the Operated with 6105A or 6100B Control Loop section in the specifications of
Chapter 1. These specifications include the accuracy of the 6100B or 6105A in this
6105A controlled mode of operation. A maximum of three Products can be connected in
parallel for a maximum current of 360 Amps in closed-loop mode. Figure 2-8 shows how
to connect multiple Products to a 6105A or 6100B.
