Fluke 6105A
Fluke 6106A #1
To 52120A
Phase 1
Fluke 6106A #2
To 52120A
Phase 2
To 52120A
Phase 2
gpp010.eps

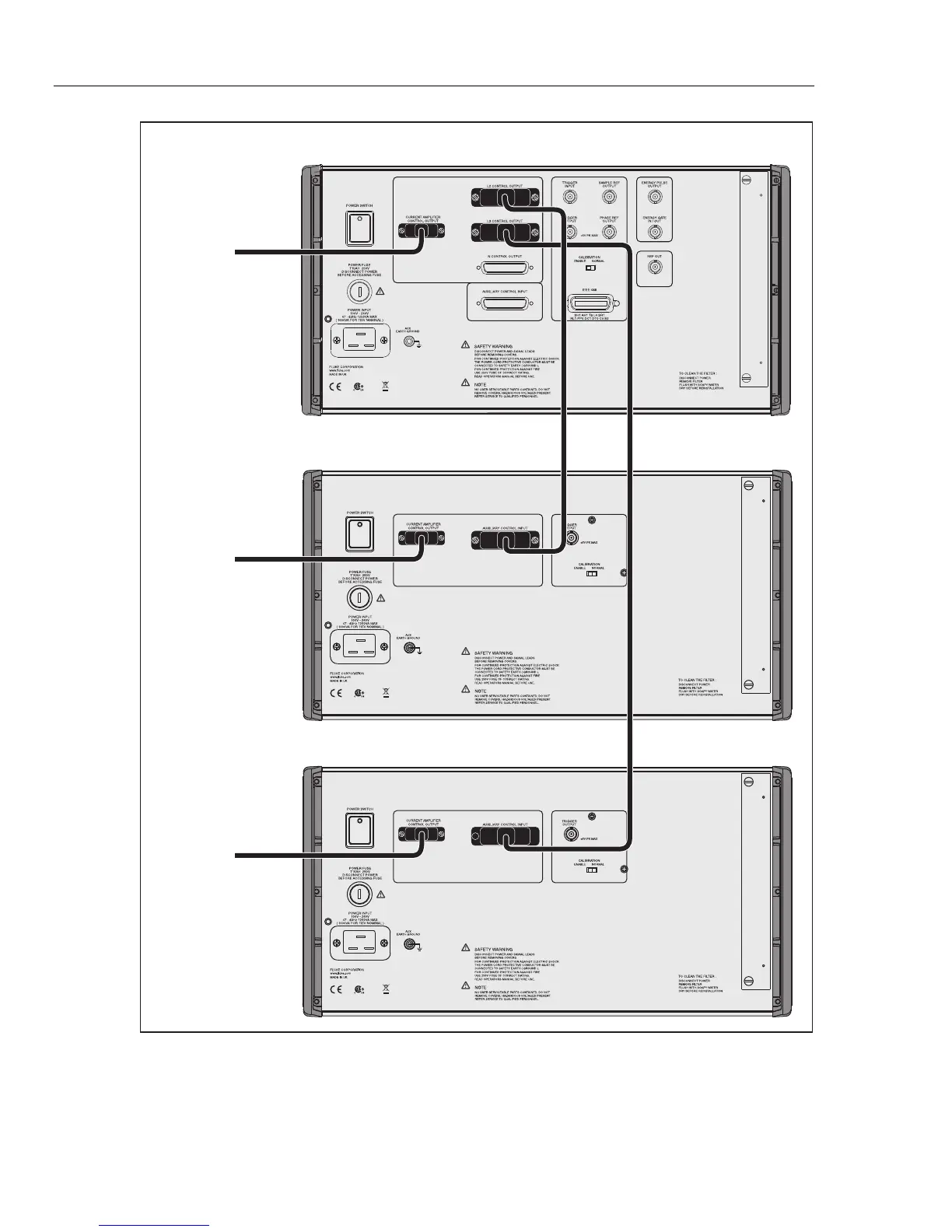

Figure 2-9. 6105A to 6106A Connections
3. Connect a control cable between the Current Amplifier Control Output connector on
the rear panel of the 6105A and the Control Input connector on the rear panel of one
the Products.
