CertiFiber Pro Fiber Optical Loss Test Set
Users Manual
96
GPU126.EPS

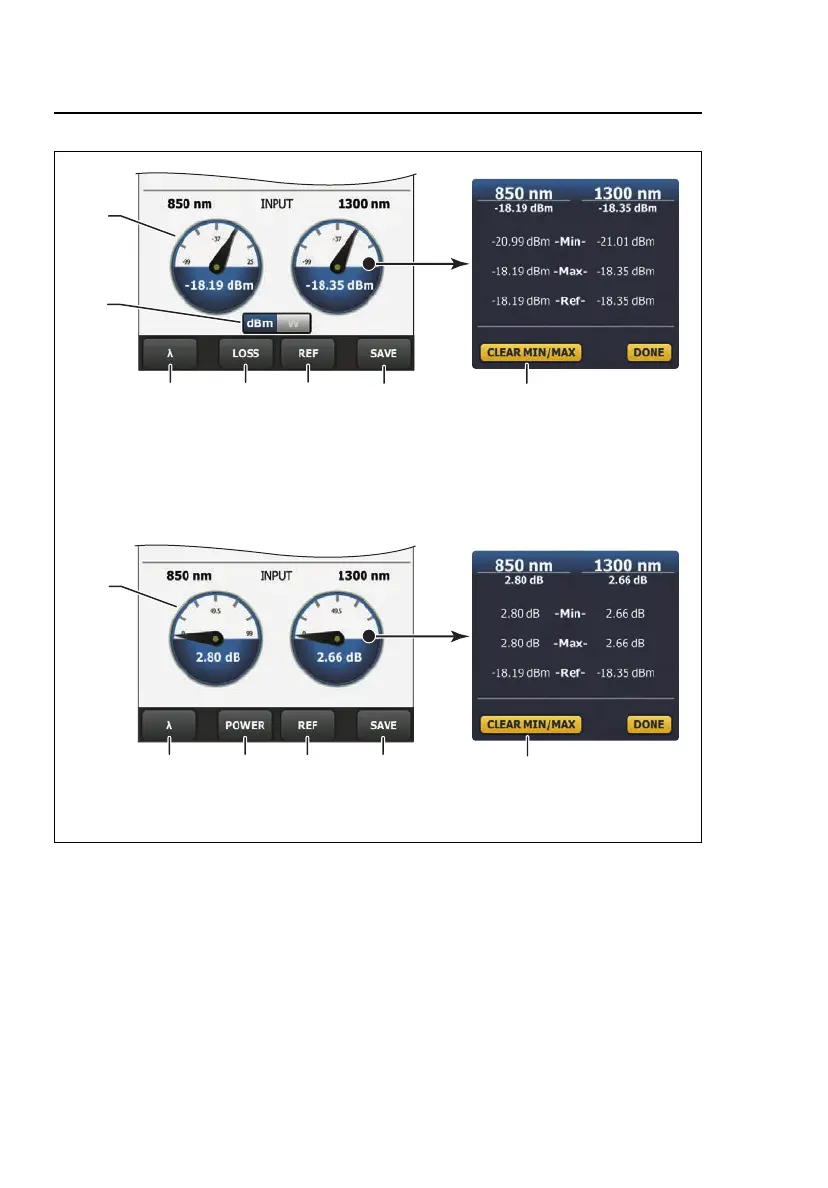

Figure 32. Power Meter Measurements and Controls
 The meters show the power levels received on the input port.
 This control shows when the meters measure absolute power.
Tap the control to see the power measurement in dBm (decibels
per milliwatt), mW (milliwatts), µW (microwatts), or nW
(nanowatts.
J
B
A
I
FEC
F
C D
H
E
G
G
H
Power measurements
Loss measurements
