CertiFiber Pro Fiber Optical Loss Test Set
Users Manual
136
gpu139.eps

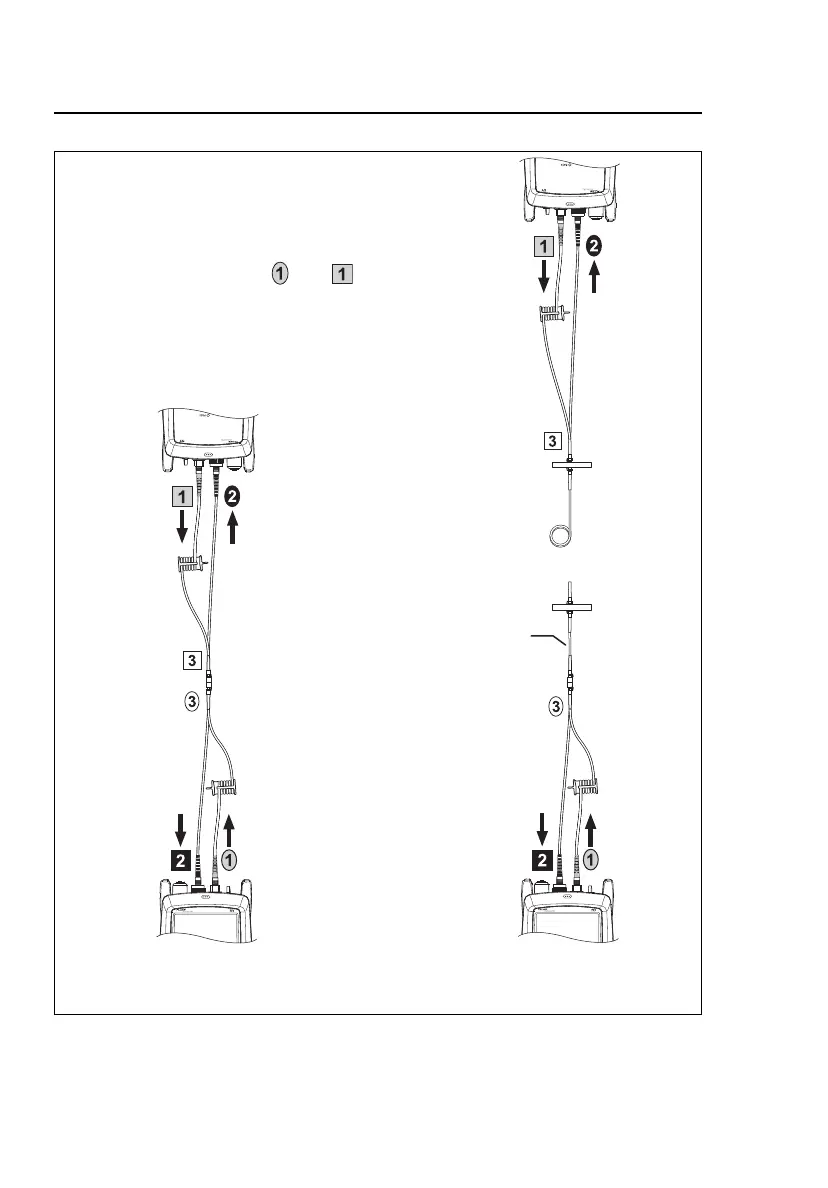

Figure B-1. Modified 1 Jumper Reference Method for Smart Remote
Mode
Caution
Do not disconnect the
outputs ( and ) after
you set the reference.
Short MT-RJ (no pins)
to MT-RJ (pinned)
test reference cord
(0.3 m or less.
Fiber Link Test
Reference
Mandrel*
Mandrel*
*Use mandrels only with multimode modules.
