Fluke CertiFiber Pro - Page 68

CertiFiber Pro Fiber Optical Loss Test Set
Users Manual
58
GPU122.EPS

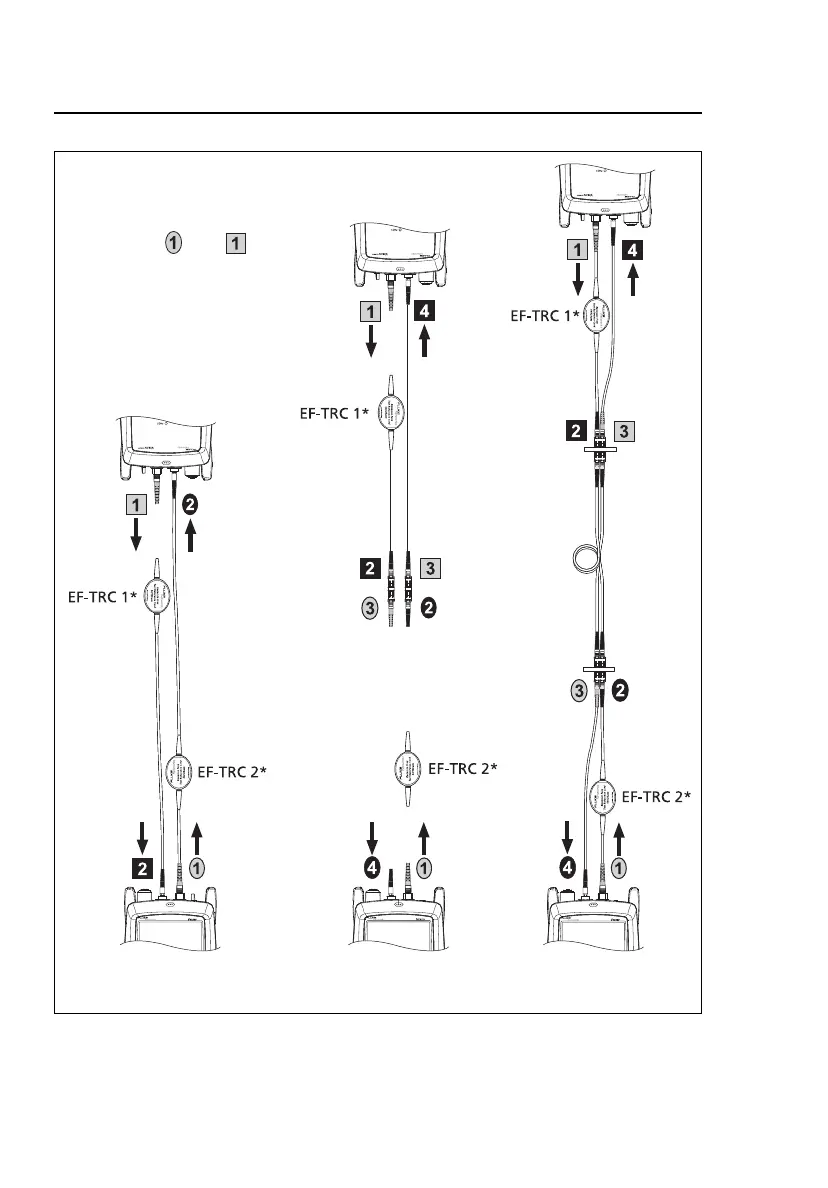

Figure 18. Connections for Smart Remote Mode
(1 Jumper Reference, Multimode Fiber)
Caution
Do not disconnect the
outputs ( and ) after
you set the reference.
When you use the EF-TRCs, 
DO NOT use other
mandrels.
Fiber
link
Test
reference
cord
Test
reference
cord
*Use the EF-TRCs only with multimode modules.
Fiber Link Test
Reference
TRC Verification
