Chapter 3: How to Certify Fiber Cabling
Autotest in Loopback Mode
65

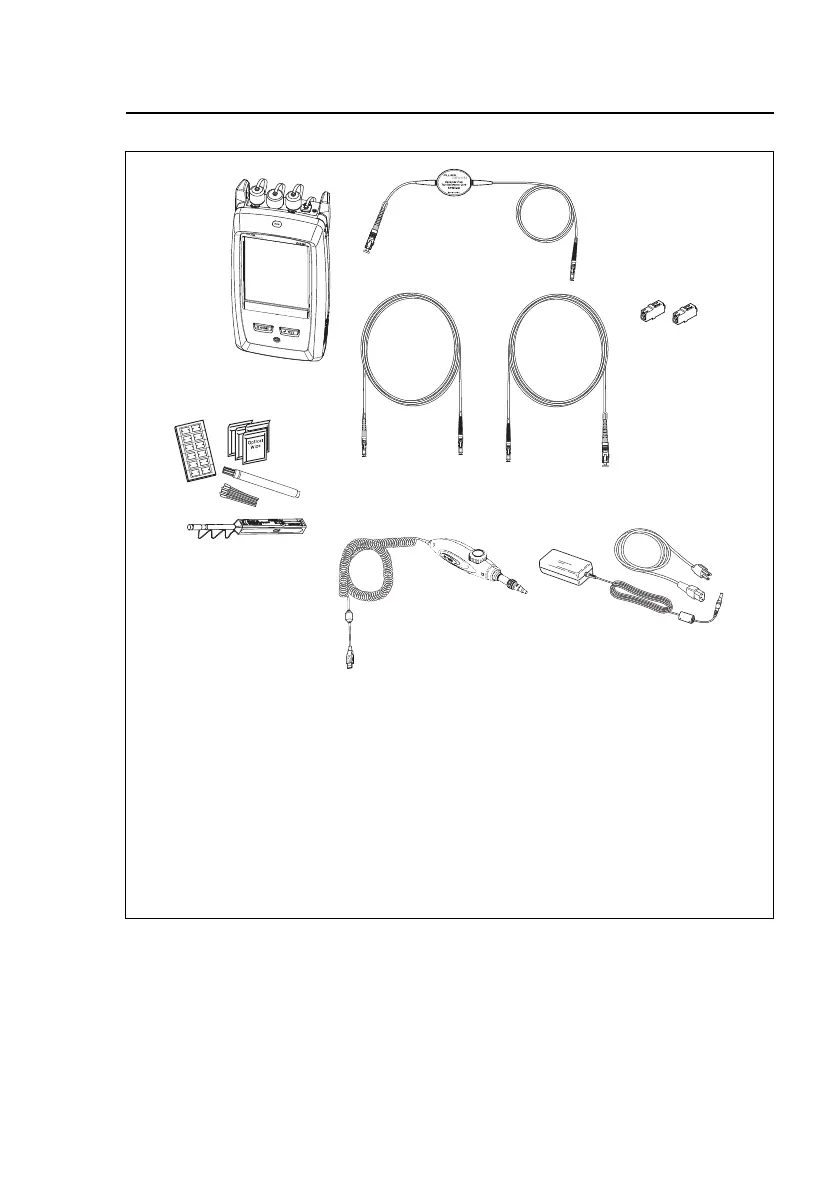

Figure 20. Equipment for Autotests in Loopback Mode
GPU129EPS
Main Versiv unit with CertiFiber
Pro module installed
For multimode fiber: one EF-TRC
test reference cord
Two singlemode adapters
For multimode fiber: one test
reference cord. For singlemode
fiber: two test reference cords.
Fiber cleaning supplies
Video probe with USB connector
(DI-1000 shown)
AC adapters with line cords
(optional)
A
B
C
E
D
F
G
