CertiFiber Pro Fiber Optical Loss Test Set
Users Manual
76
GPU132.EPS

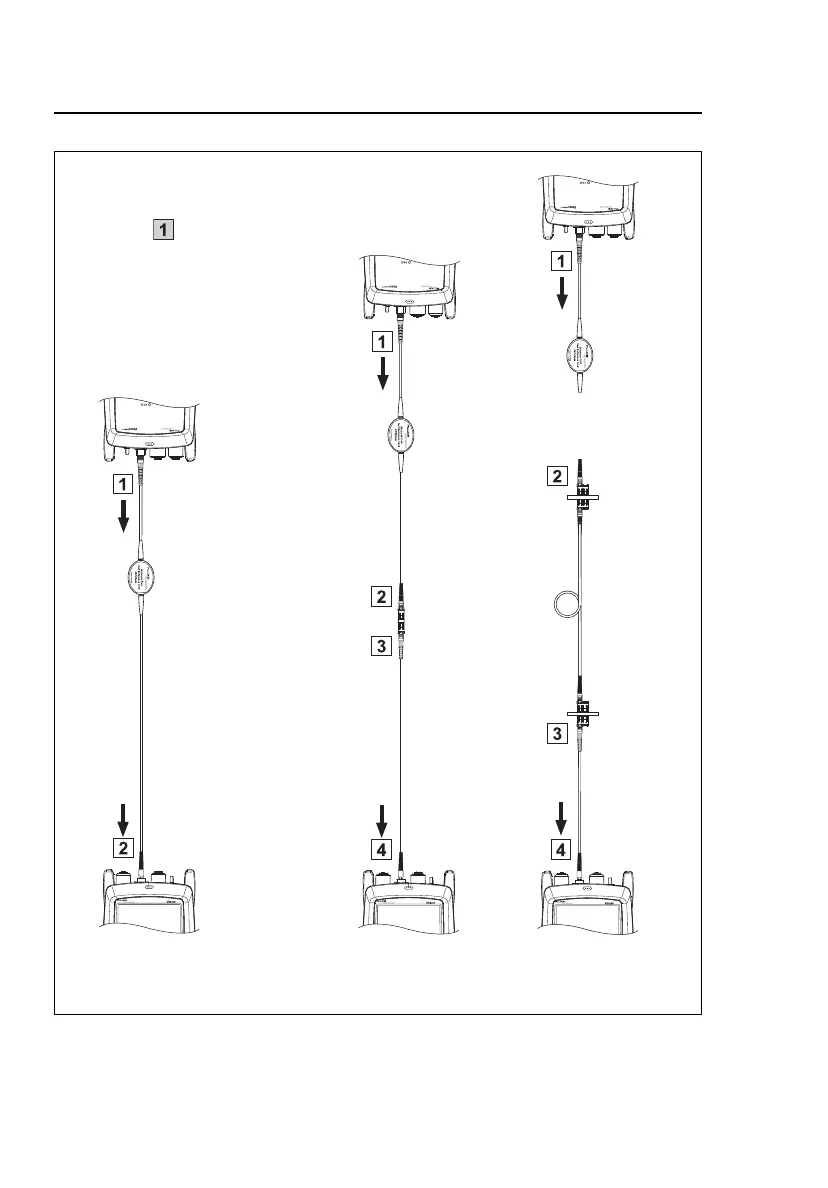

Figure 24. Connections for Far End Source Mode
(1 Jumper Reference Multimode Fiber)
EF-TRC*
EF-TRC*
EF-TRC*
Caution
Do not disconnect the
output ( ) after you set
the reference.
When you use the EF-TRCs, 
DO NOT use other
mandrels.
Fiber
Test
reference
cord
*Use the EF-TRCs only with multimode modules.
Fiber Test
Reference
TRC Verification
