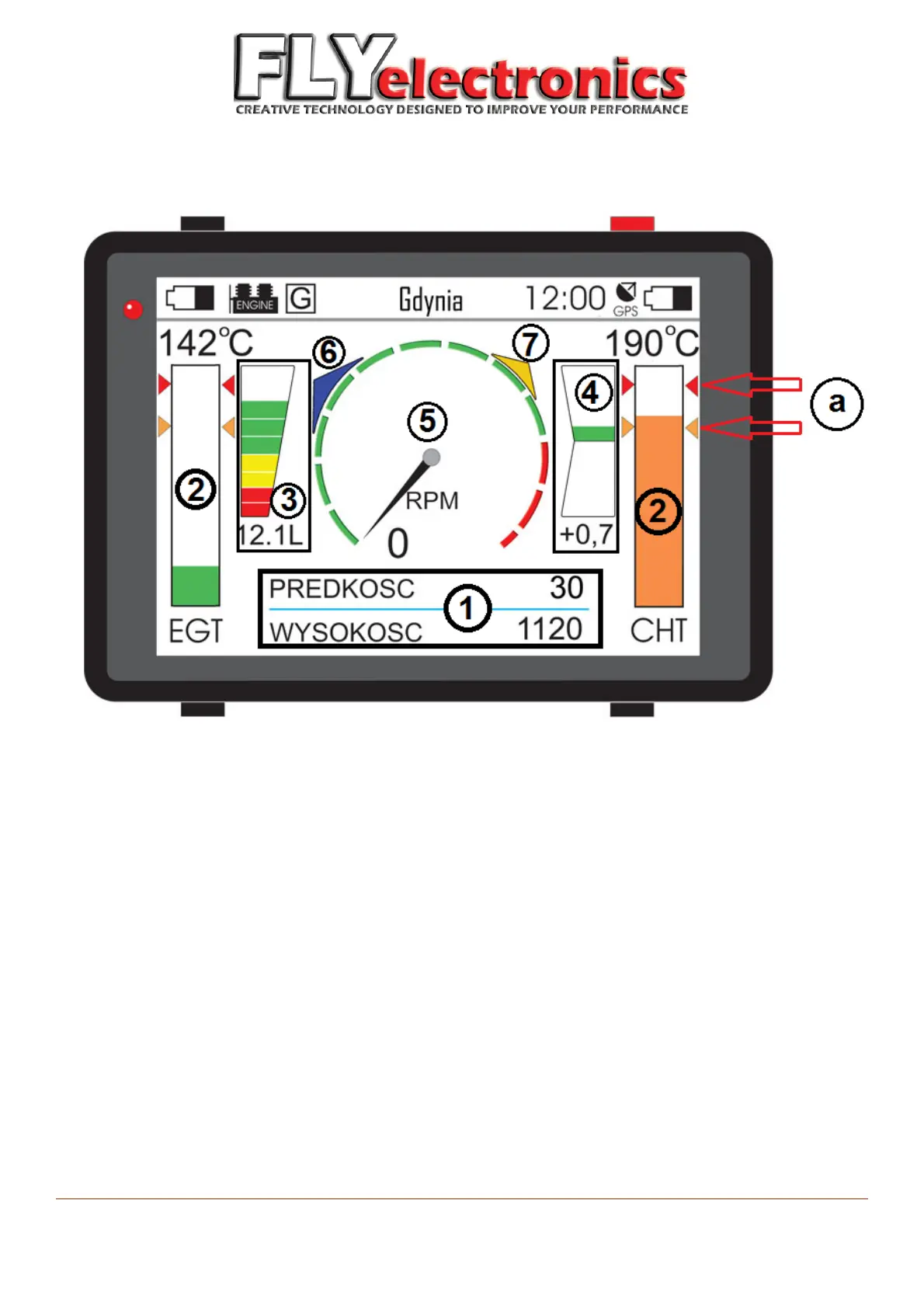

Additionaly, on graphic desktop pilot can see following parameters:
1. Two predefined parameters under the tachometer (from the list above)
2. Two temperatures (EGT and CHT by default)
a) Optimal temperature level (orange) and critical level (red)
b) Column color changes depending on the temperature, from green to yellow (optimal
temperature) and red (critical temperature)
3. Fuel level in percentage or remaining amount (depending on preselected fuel sensor) – left side of
tachometer
4. Variometer
5. Graphic tachometer with current RPM value
6. Start point direction (big blue arrow)
7. Wind direction (small yellow arrow) – we still working on that :)
FLYelectronics All Rights Reserved Page 9
