20. Bike folding instructions FLYER Pluto
These folding instructions contain important in-
formation needed to know how to fold your new
FLYER. They also provide you with safety tips and
help you prevent harming people, objects and the
environment. You should therefore keep this man
-
ual in a safe place, always have it to hand and ob-
serve the pointers provided in this manual which
have proven to be helpful when using this FLYER.
Please provide these instructions with the FLYER
when you lend your FLYER to other persons.
You can nd these instructions online
under: www.yer-bikes.com/manuals
Always make sure that your FLYER Plu-
to is in a safe position when transported
in a folded state. Especially when trans
-
porting your bike by public transportation
or car, you should make sure it won’t fall
when the vehicle is in motion. You may
need to secure it better or rmly hold
unto it. If your bike falls over, important
components may become damaged.
You may only maintain, work on the bike,
etc. when the system is switched off.
27
10
11
12
13
14
15
16
17
18
1
2
4
5
7
8
9
6
3
19
20
21
22
23
24
25
25
26

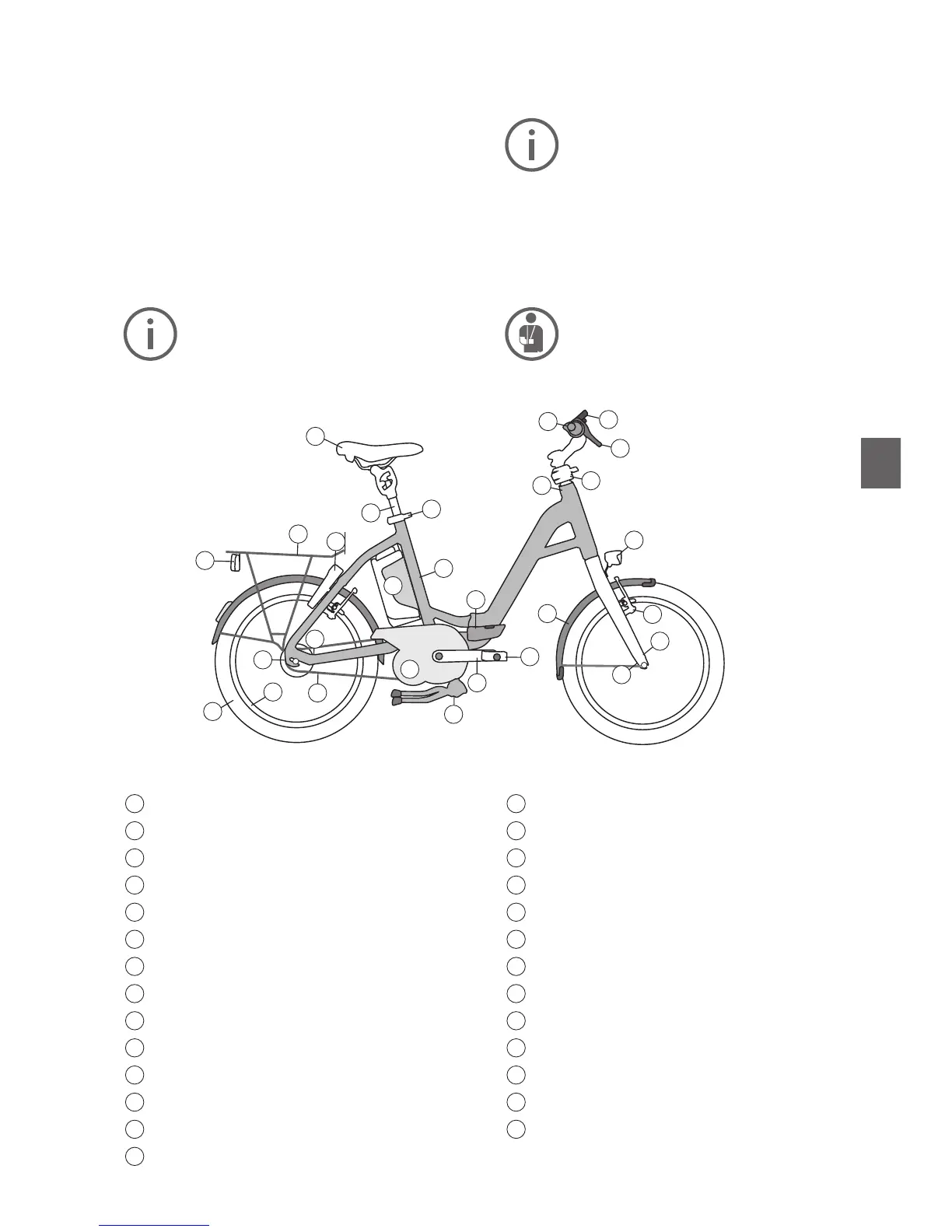

1
Display
2
Frame
3
Folding hinge with safety lever
4
Seat
5
Seat post
6
Quick release lever on the seat post
7
Rack
8
Rear light
9
Frame lock
10
Battery
11
Wheel
12
Rim
13
Hub
14
Chain
15
Motor (under the chain guard)
16
Crank
17
Handlebars
18
Brake levers
19
Stem (Speedlifter Twist)
20
Headset
21
Headlights
22
Mudguard
23
Brake
24
Fork
25
Securing the bike in a folded state
26
Folding pedals
27
Bike stand
To Next Page
