165
EN

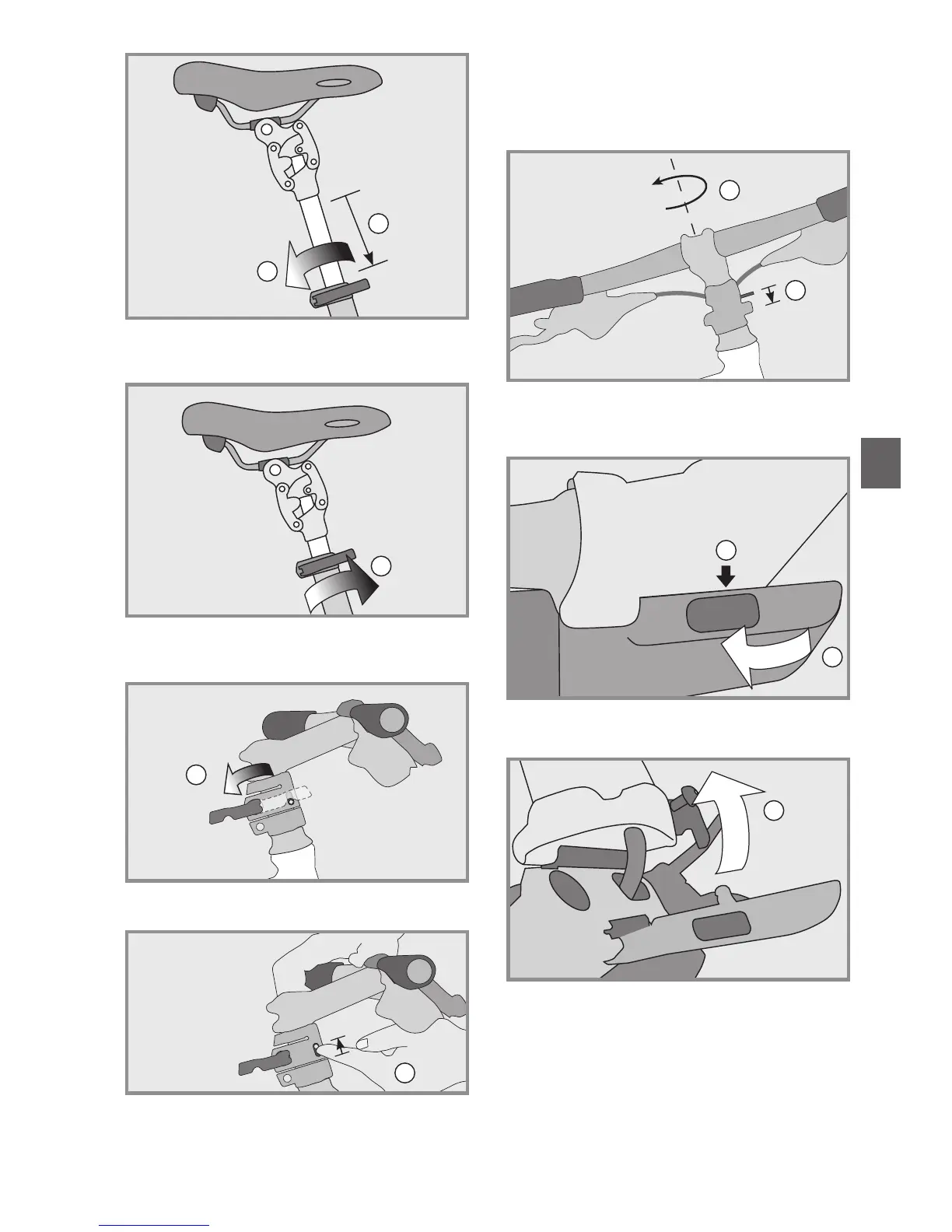

Close the quick release again (3) to keep the sad-
dle in this position.
3. Open the quick release lever (1) on the
Speedlifter.
Lift the unlocking bolt (2).
1
2
3
1
2
This should not enable you to turn the handlebars
to the right (3). The bolt automatically latches in
the 90-degree positon (4). Completely close the
quick release lever so that the handlebars are
safely fastened.
6. First open the safety lock of the frame hinge by
pushing the button in the middle of the lever (1).
Finally fold the lever outwards (2).
You should now be able to fold the front part of the
frame to the left (3).
7. Fold the front and rear part of the frame to-
wards each other until the brackets on the fork
are able to attach to the chainstay. When the top
of the screw begins to fall in the larger opening,
position the bracket in such a way that it drives
into the end of the slot it is facing.
4
3
90°
1
2
3
