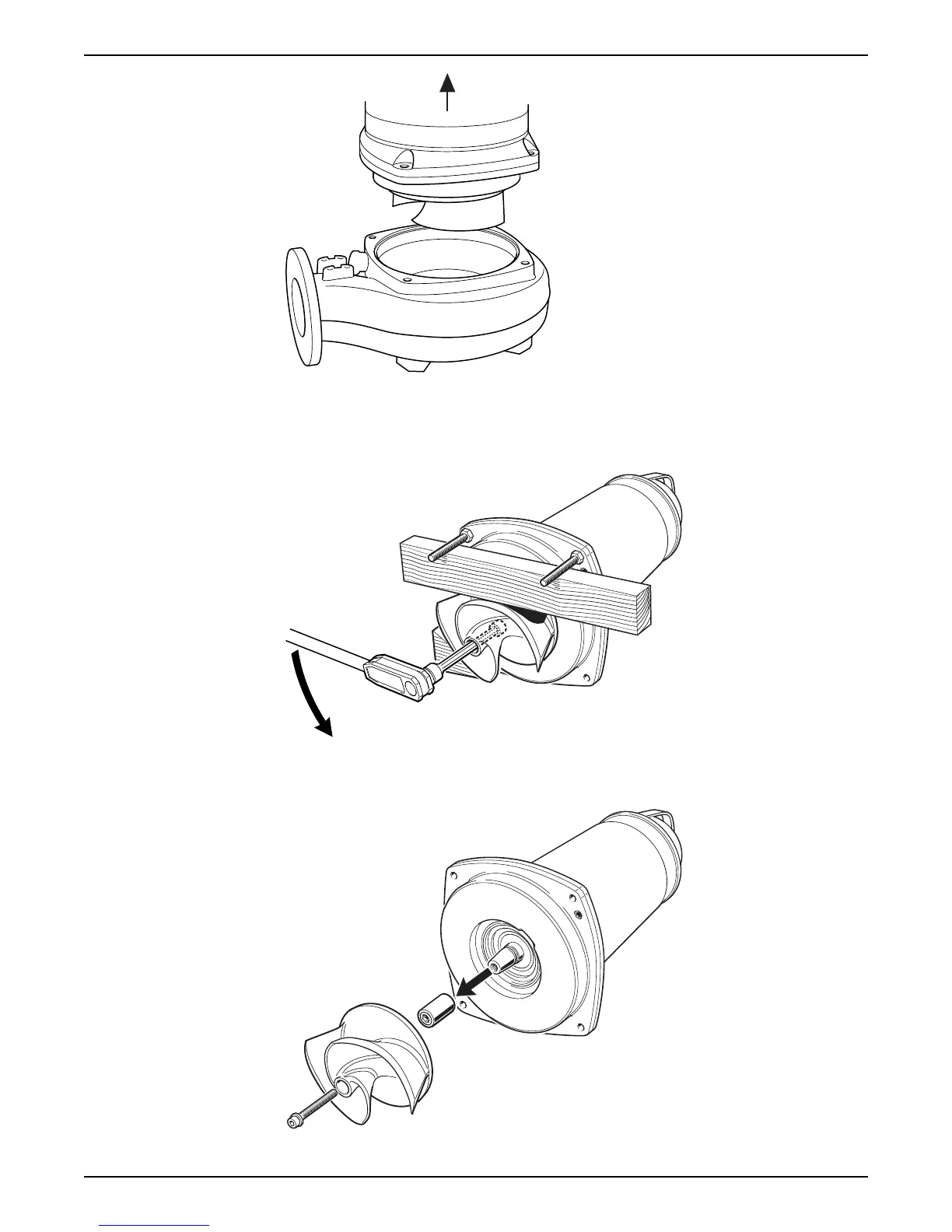

2. Remove the impeller:
a) Place the drive unit horizontally.
b) Lock the impeller as shown in the figure.
c) Remove the impeller screw.
d) Turn the adjustment screw counterclockwise until the impeller breaks free from
the shaft.
e) Remove the impeller and the conical sleeve.
Maintenance
Flygt 3202 Installation, Operation, and Maintenance Manual 55
