FLYGT 3202 - Installing the Impeller for Dry Installation

WS003730A
WS003731A

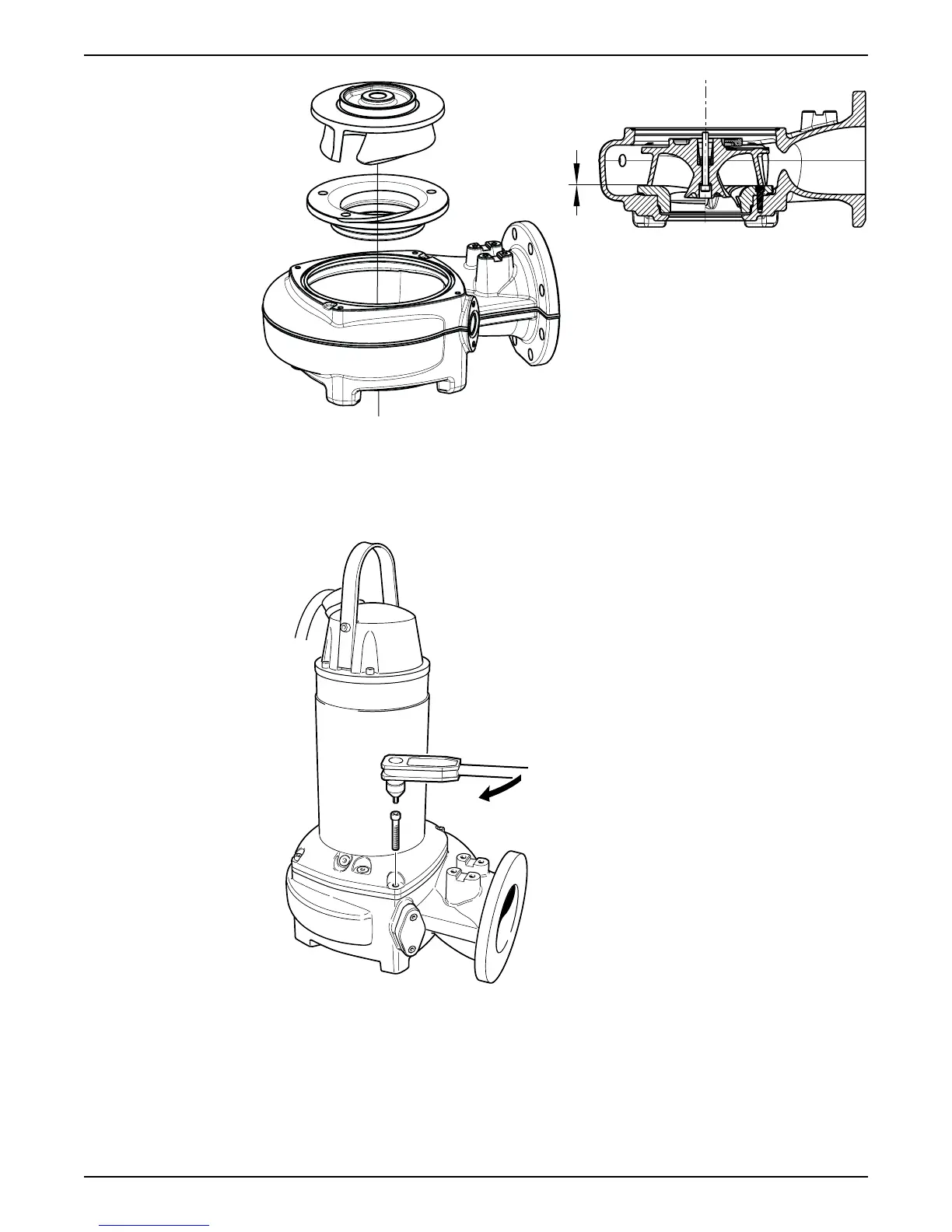

Replace the impeller for dry installation
Remove the impeller: dry installation
1. Remove the drive unit from the pump housing:
a) Remove the pump housing screws.
WS001539A
b) Remove the drive unit from the pump housing.
Maintenance
54 Flygt 3202 Installation, Operation, and Maintenance Manual
