FLYGT 3202 - Page 59

A
WS001472A

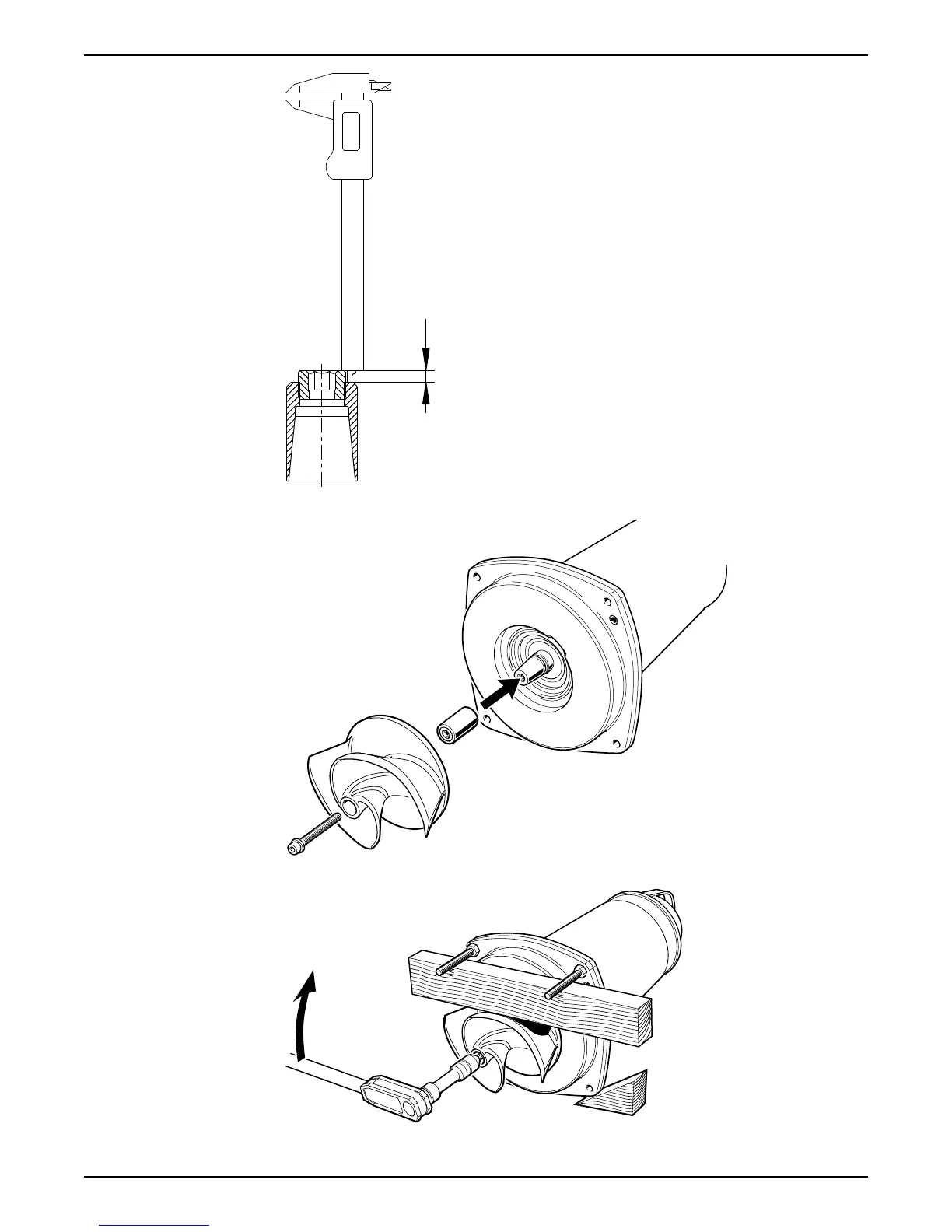

d) Fit the sleeve and the impeller to the shaft.
WS006256A
e) Fit the impeller screw and washer and tighten.
WS001492A
3. Make sure that the O-ring is removed from the seal housing cover.
Maintenance
Flygt 3202 Installation, Operation, and Maintenance Manual 57
