FoamPRO 2001 - Available System Accessories; Parts and Specifications; System Accessories

6
Installation and Operation Manual
SystemsSystems
2001 and 2002

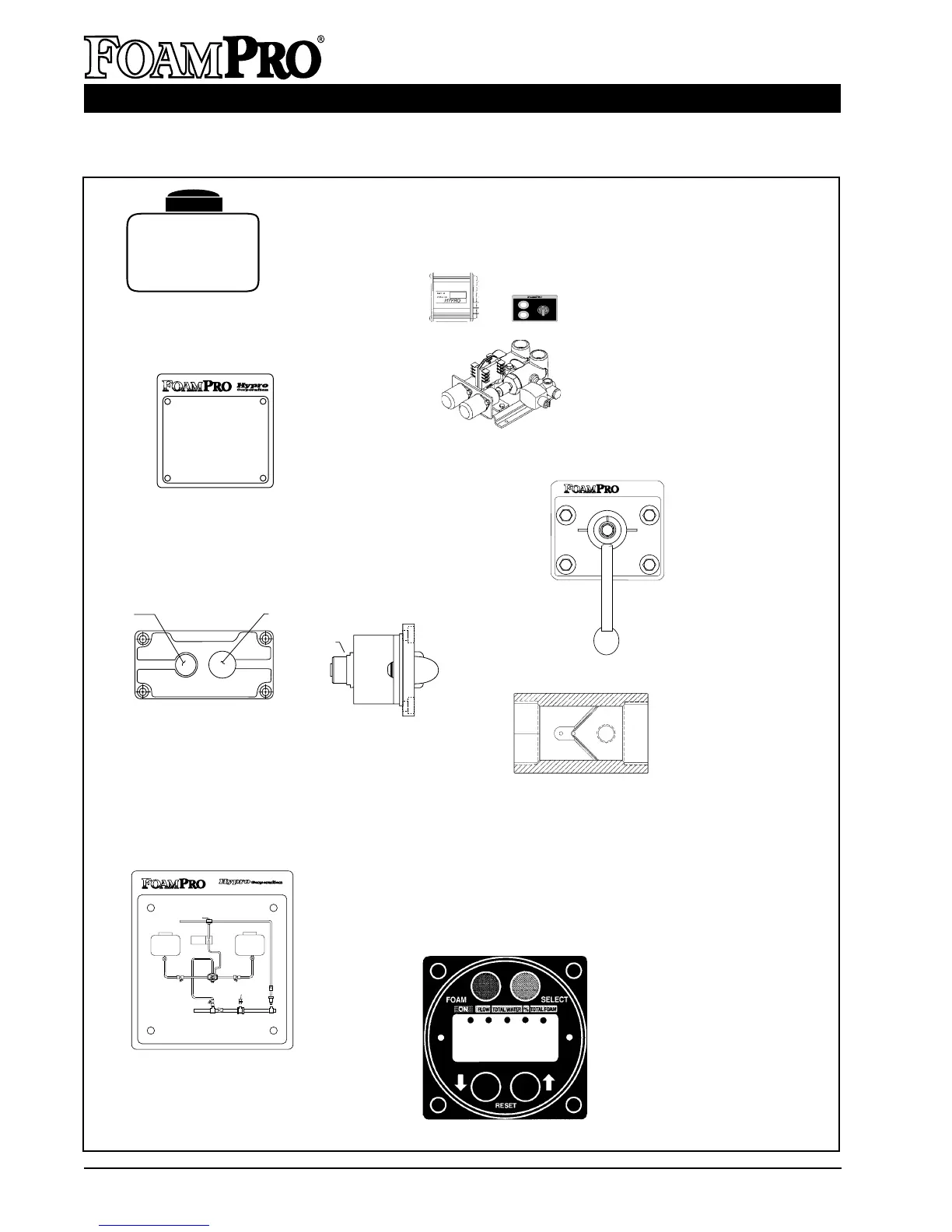

SYSTEM ACCESSORIES AVAILABLE
Polypropylene
Foam Tank(s)
8 gallon,
P/N 1530-0005
12 gallon,
P/N 1530-0012
20 gallon,
P/N 1530-0013
Provides automatic 8 second flush of
foam pump and injection lines to
prevent mixing of foam concentrates.
12 VDC P/N 3435-0104
24 VDC P/N 3435-0105
Electronic Dual Tank System with
Automatic Flush
2-Tank Manual Valve
(12 or 24 volt DC)
P/N 3435-0079
Remote Start/Stop (12-volt DC only)
P/N 3435-0075
System Placard
P/N 6032-0015 Single Tank or
P/N 6032-0016 Dual Tank
FoamPro MultiFlow Interface
The basic system requires at
least one flowmeter to sense
water flow in the discharge
piping. The FoamPro Multiflo
interface allows a total of four
flowmeters to be used. The
display will show the discharge
flow on the selected flowmeter.
(P/N 2527-0047)
System Specification Placards
System 2001 P/N 6032-0020
System 2002 P/N 6032-0021
System 2002HP P/N 6032-0035
Main Waterway Check Valve
1-1/2" NPT thread P/N 3320-0030
2" NPT thread P/N 3320-0031
2-1/2" NPT thread P/N 3320-0032
3" NPT thread P/N 3320-0033
4" NPT thread P/N 3320-0034
¤
A WICOR COMPANY
¤
To calibration
container
Foam
Tank
"A"
Foam
Tank
"B"
Foam Pump
Shut Off
Valve
Check
Valve(s)
From main
water pump
Check
Valve
Strainer
Strainer
➡
➡
➡
➡
➡
➡
➡
➡
➡
Manual Flush Valve
TANK
AB
TANK
FLUSH
FOAM
SELECTOR
®
¤
¤
FoamPro 2001 Specifications
Concentrate class type: A and/or B
Maximum concentrate viscosity: 2000 cps
Concentrate proportioning rate: 0.1%-9.9%
Concentrate injection rate: 0.1-2.6 gpm
Maximum injection pressure: 400 psi
Maximum solution capability: 0.5% 520 gpm
(performance at 150 psi) 1.0% 260 gpm
3.0% 85 gpm
6.0% 43 gpm
Results may vary due to system configuration.
See operator’s manual for further details.
800-533-9511
FOAM B
¤
FOAM A
FOAM A
LIGHT
w/RED LENS
4-POLE
RECEPTACLE
RED BUTTON
HYPRO
