INSTALLATION PLANNING
Because of the potential differences in
apparatus plumbing and foam system
configuration, it is not practical to depict exactly
how each FoamPro unit can best be installed
onto a particular apparatus. Figure 2 shows the
relative location of the FoamPro system
components. Most of the information contained
in the following sections, however, will apply to
any situation.
It is recommended that you read the
following sections thoroughly before
beginning installation of the FoamPro
system. It is also recommended that you
spend time planning and designing where
and how you intend to install this unit in the
apparatus before beginning the actual
installation.
Determine the locations of the components to
be installed such as; foam tank(s), foam pump
and flowmeters. Try to place components in
locations that require the least amount of hoses
and fittings.
Locate the foam pump unit in an area that is
protected from road debris and excessive heat
buildup. Since the master power switch and

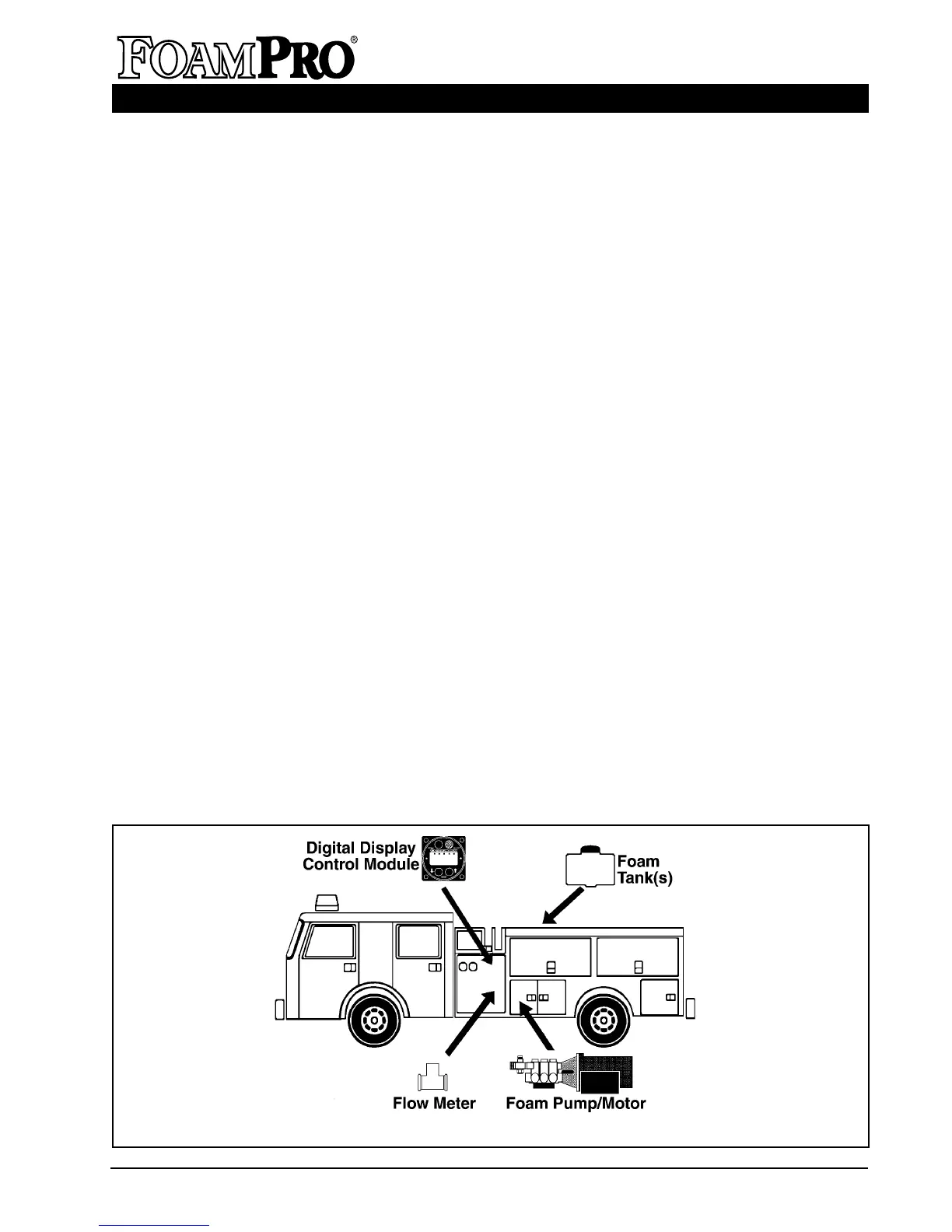

Figure 2. System Component Location
CAL/INJECT valve are located on this unit, the
foam pump unit should be installed in an
accessible compartment located in the vicinity of
the operators panel.
The foam pump unit should be located below
the discharge of the foam tank(s) to provide for
gravity feed to the foam pump. Locate the foam
tank(s) where the refilling can be done with
5 gallon (19 liter) containers and other methods
suitable to the end user. Most water tank
manufacturers will build the foam tank(s) into
the booster tank. When specifying integral foam
tank(s), make provisions for installing the low
tank level sensor as well as foam suction
connections and tank drainage.
Determine a location for the Digital Display
Control Module on the operator panel of the
apparatus. Consider the routing path for the
control cables from the Digital Display Control
Module to the foam pump unit and flowmeter(s).
If necessary, order longer or shorter cable
assemblies to suit the location demands.
CAUTION: Never attempt to cut or lengthen the
molded cables.
