MAKING SURE EVERYTHING IS WORKING RIGHT
SYSTEM POWER CHECK
Turn the main power switch on the motor driver
box to ON and check the digital display readout
— "HYPRO" should appear for a few seconds
while the computer checks itself (See Figure
21); then, a zero should appear on the digital
readout. If no zero appears, refer to the
“TROUBLESHOOTING ” section for possible
causes and solutions.
FOAM PUMP PRIMING CHECK
Turn the CAL/INJECT valve to the CALIBRATE
or FLUSH position. Provide a container to

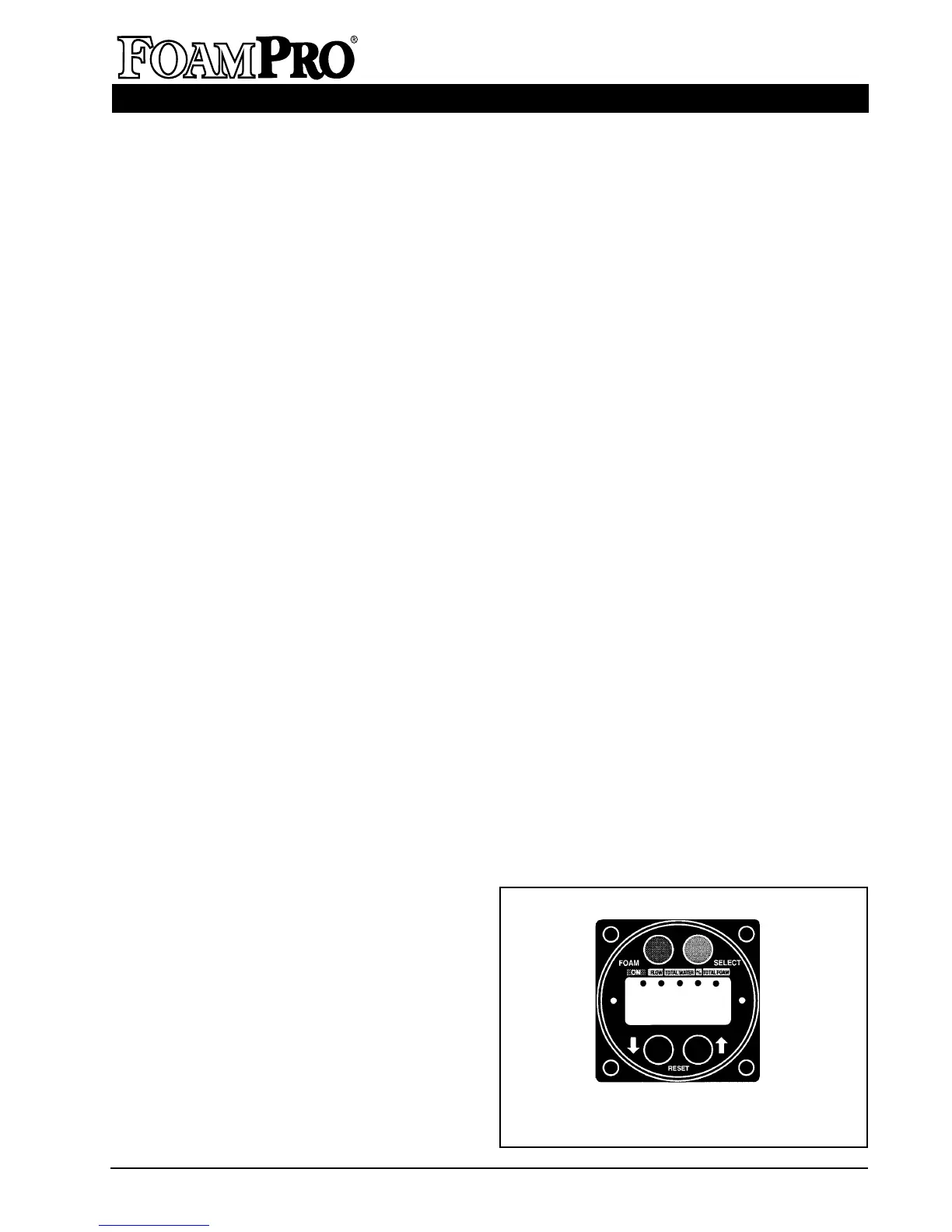

Figure 21.
Digital Display Control Module
Electrical
❑ Tank level sensor is connected and the connections are sealed from moisture.
❑ Digital Display Control Module connectors are correct and tight.
❑ Cable connections at the motor driver box are correct and tight.
❑ Flowmeter cable(s) properly connected to the Digital Display Control Module or MultiFlo as
required.
❑ All cables and wires are secured and protected by loom from damage during operation.
❑ RFI/EMI beads are installed; control and flowmeter cables are properly folded and secured;
radio antennas, power lines and equipment are away from the control and flowmeter cables.
❑ All components, Digital Display Control Module, Flowmeter Tee, Pump Base, etc., are properly
grounded with adequate size wire and bare metal connections.
❑ Adequate current capacity is available for the foam pump motor (see the listing on Page 15).
❑ Circuit breaker switch on the motor driver box is in the ON position.
Liquid
❑ Flowmeter is mounted with flow arrow in the correct direction for water flow.
❑ Check valves are properly mounted in water and foam concentrate lines.
❑ Strainer is properly mounted for the direction of concentrate flow in the foam tank to pump line.
❑ Foam tank to the foam pump valve is in place and open.
❑ Injector fitting lines are proper size and connections are tight.
❑ CAL/INJECT valve is properly mounted and oriented for direction of concentrate flow.
❑ The injector is in a common point to supply foam concentrate to all discharges specified to have
foam capability.
❑ Fill foam tank(s) with a sufficient quantity of foam concentrate or water to allow system
calibration. Minimum of 5 gallons required .
❑ Foam is properly primed.
FOAM PUMP
❑ Foam Pump gear case filled to proper level with SAE 30 weight non-detergent oil.
