FoamPRO 2001 - Installation Drawings

40
Installation and Operation Manual
SystemsSystems
2001 and 2002
(Please make a photocopy for your use.)
14
INSTALLATION DRAWINGS
FOAM
RESET
SELECT
ON
FLOW TOTAL WATER TOTAL FOAM%
0.21 Inch Dia. Hole Apparatus Panel
1.75 in.
(44.5 mm)
4.25 in.
(108 mm)
3.50 in.
(89 mm)
1.75 in.
(44.5 mm)
3.70 in.
(94 mm)
Dia.
2.75 in.
(70 mm)
3.50 in.
(89 mm)

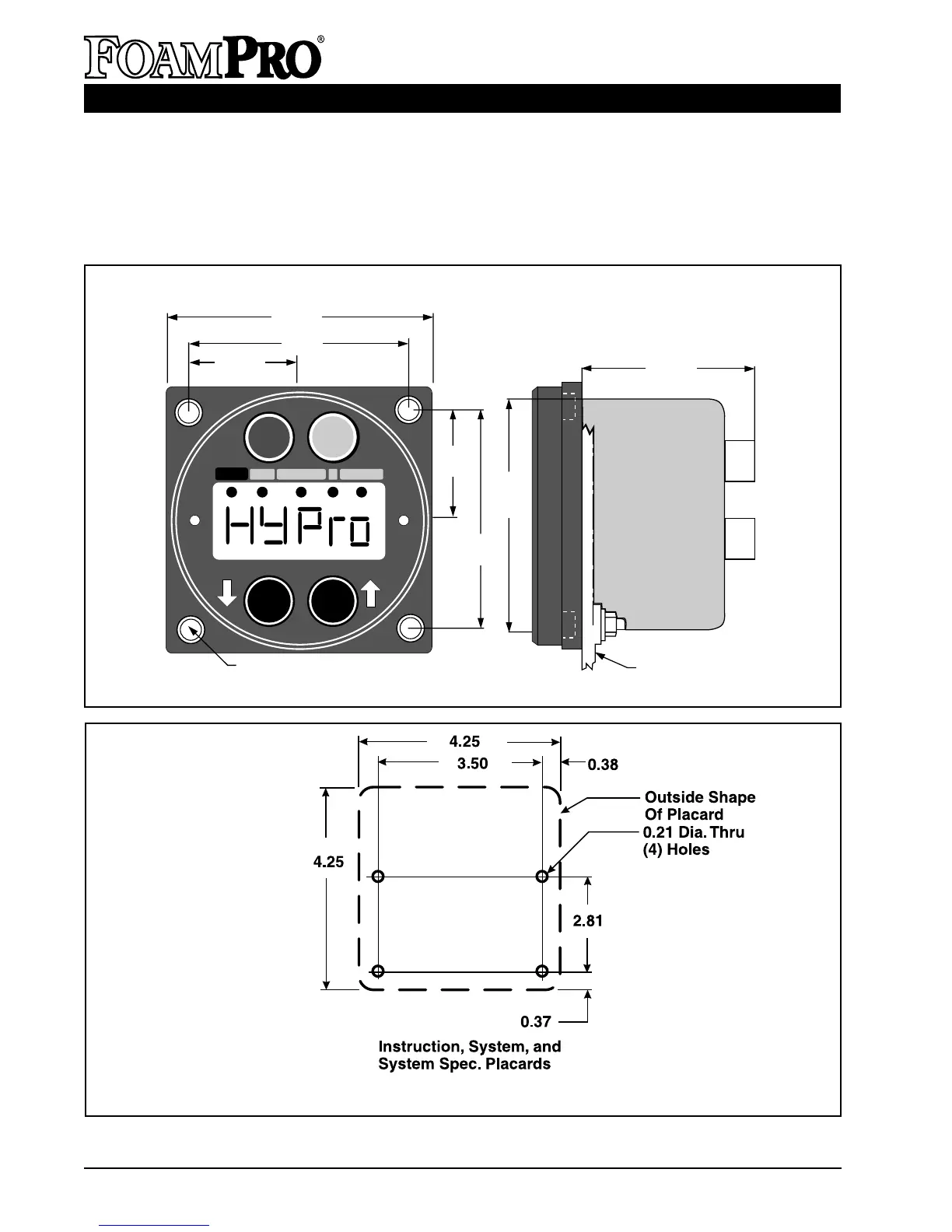

Cutout Dimensions for Display Control Module
Display Requires 3-7/8'' [98 mm] Dia. Hole
Cutout Dimensions for System Spec. Placard
