Installation and Operation Manual
SystemsSystems
2001 and 2002
CALIBRATION AND SETUP
• Enter the setup mode by pressing the
internal button on the left side of the
controller.
• Enter the diagnostics mode by pressing the
internal button on the right side of the
controller.
• The display will flash "CONF" and "DUAL.T"
alternately.
• Press the DOWN button once. The display
will now flash "CONF" and RSTART".
• Press the left internal button once. This puts
you back into the operational mode.
• Replace internal button screws and o-rings.
CALIBRATION AND SETUP MODE
Calibration and Setup is done by using the
Digital Display Control Module function buttons.
To enter or exit the calibration and setup mode,
remove the cover screw and o-ring to the left of
the display readout panel on the Digital Display
Control Module (see Figure 24). Use a
3
/32 inch
Allen wrench to remove the screw and also to
operate the switch that is located beneath it.
To enter Calibration and Setup mode, use the
Allen wrench to depress and release the switch
inside the screw opening. The display will show
“
Elec Setup
” until any function button is pressed.
Exit from Calibration and Setup mode is
accomplished by pressing and releasing the
switch again. The word “HYPRO” will appear
followed by a zero after several seconds.
REPLACE THE COVER SCREW AND O-RING
WHEN DONE.
CAUTION: ALWAYS REPLACE THE COVER
SCREW AND O-RING TO KEEP WATER AND
DIRT FROM ENTERING THE DIGITAL
DISPLAY CONTROL MODULE OR SERIOUS
DAMAGE TO THE COMPONENTS MAY
OCCUR.

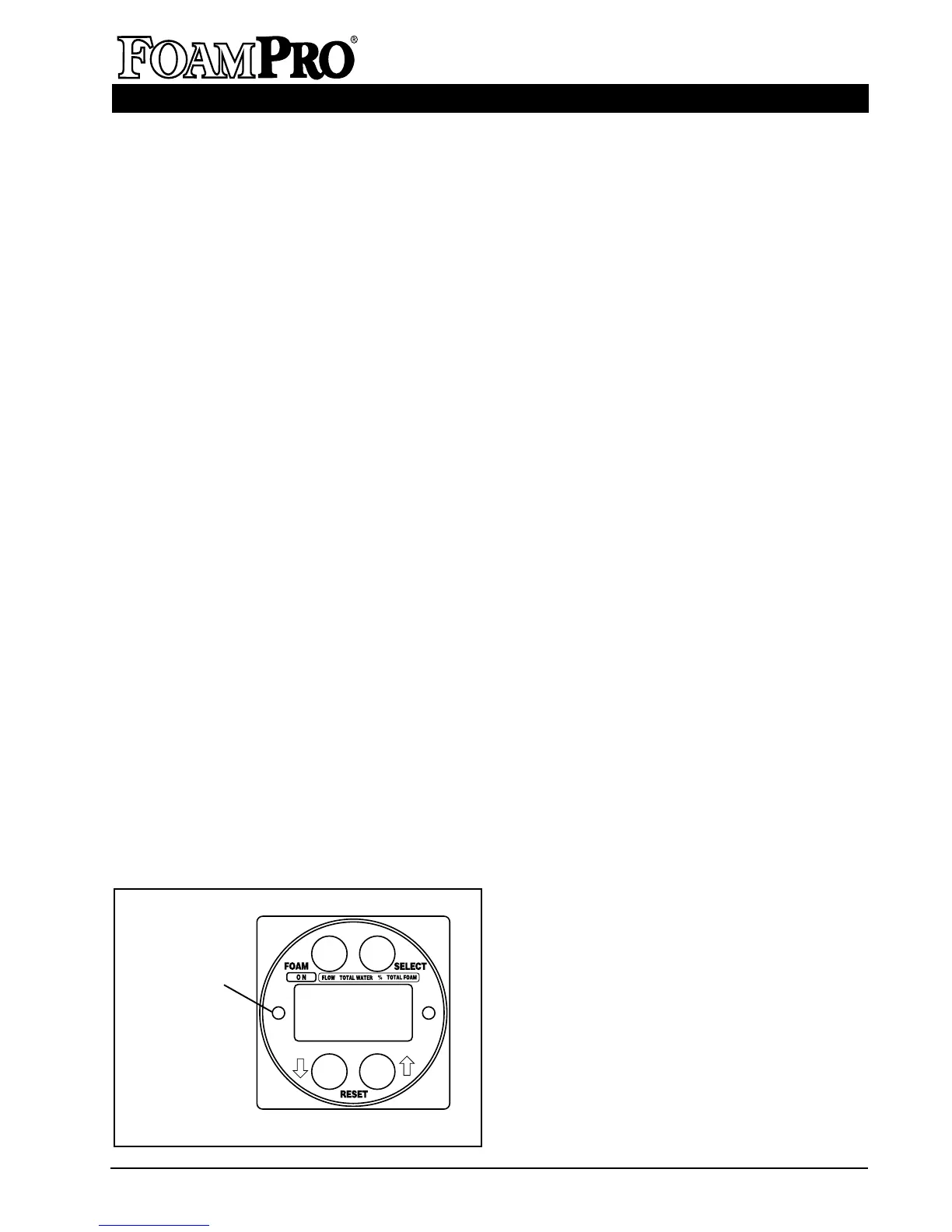

Figure 24. Calibration Switch Location
COVER
SCREW
TO BE
REMOVED
SYSTEM SETUP PROCEDURES
FoamPro systems permit easy calibration of the
foam proportioning unit to assure accurate
operation. The calibration process will make
adjustments to the flowmeter(s) and foam pump
display readings.
NOTE: FoamPro systems can be calibrated to
any unit of measure, i.e. U.S., Metric,
Imperial, etc. It is necessary to use the
same unit of measure throughout the
calibration process to ensure proper
proportioning by the system.
IMPORTANT: Both the foam pump and flow
meter readings must be calibrated as a part of
the initial setup after installation.
Recalibration should only need to be done after
major repairs or changes to the foam system.
SETUP FOR DUAL TANK OPERATION
The FoamPro controller is factory defaulted to
the dual tank option. If you are installing a
remote start/stop system, you must change the
default setting for proper system operation. The
procedure for this new setting starting from the
operational mode is as follows:
• Remove the screws to enter the setup and
diagonistic modes.
9
