Fortinet FortiGate 100 Installation & Configuration Guide

IPSec VPN Adding a VPN concentrator
FortiGate-100 Installation and Configuration Guide 201
Adding a VPN concentrator
To add a VPN concentrator configuration:
1 Go to VPN > IPSec > Concentrator.
2 Select New to add a VPN concentrator.
3 Enter the name of the new concentrator in the Concentrator Name field.
4 To add tunnels to the VPN concentrator, select a VPN tunnel from the Available
Tunnels list and select the right arrow.
5 To remove tunnels from the VPN concentrator, select the tunnel in the Members list
and select the left arrow.
6 Select OK to add the VPN concentrator.

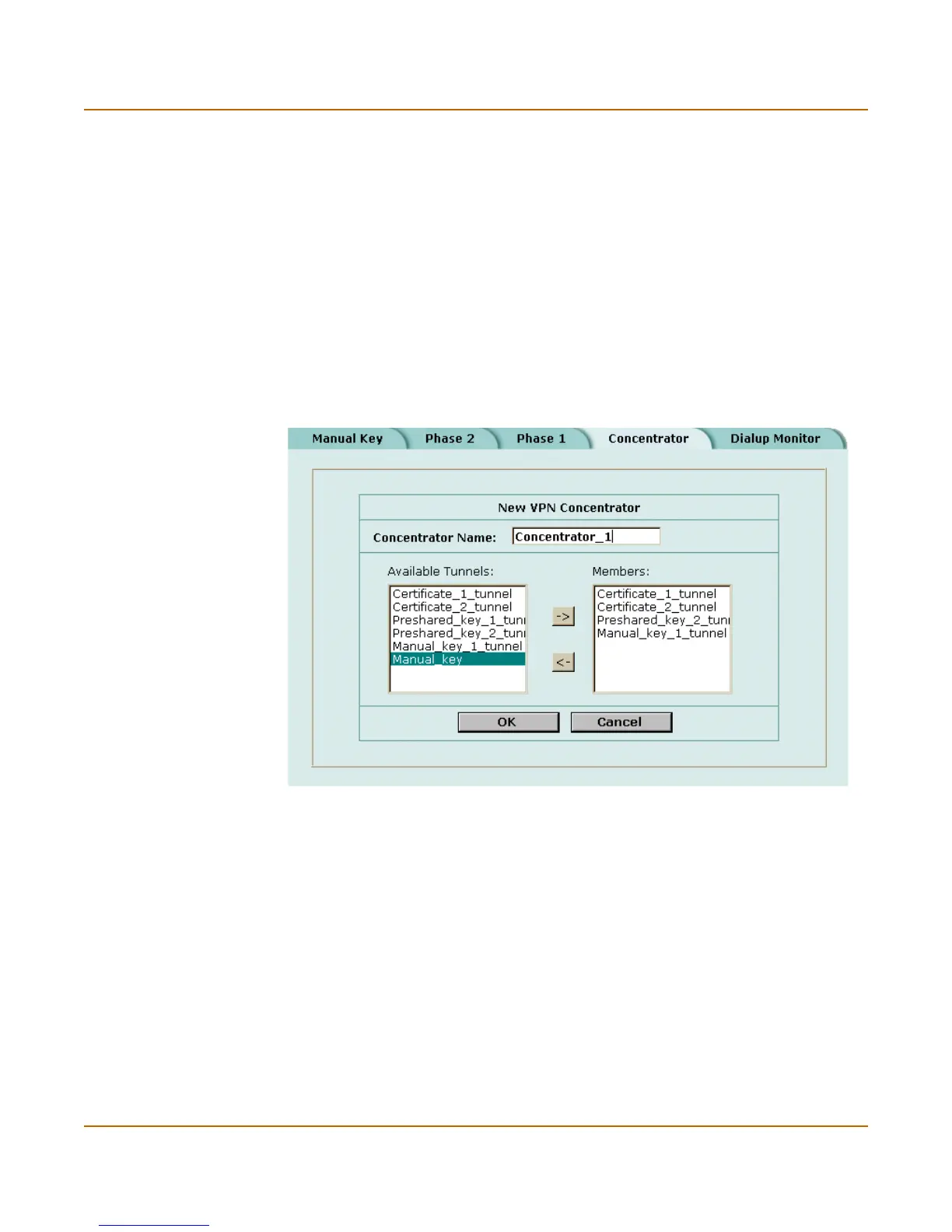

Figure 26: Adding a VPN concentrator

Fortinet FortiGate 100 Specifications

General

Brand	Fortinet
Model	FortiGate 100
Category	Gateway
Language	English
