Getting started
Package contents
The FortiGate-100 package contains the following items:
• FortiGate-100 Antivirus Firewall
• one orange crossover ethernet cable
• one gray regular ethernet cable
• one null modem cable
• FortiGate-100 Quick Start Guide
• CD containing the FortiGate user documentation
• one power cable and AC adapter

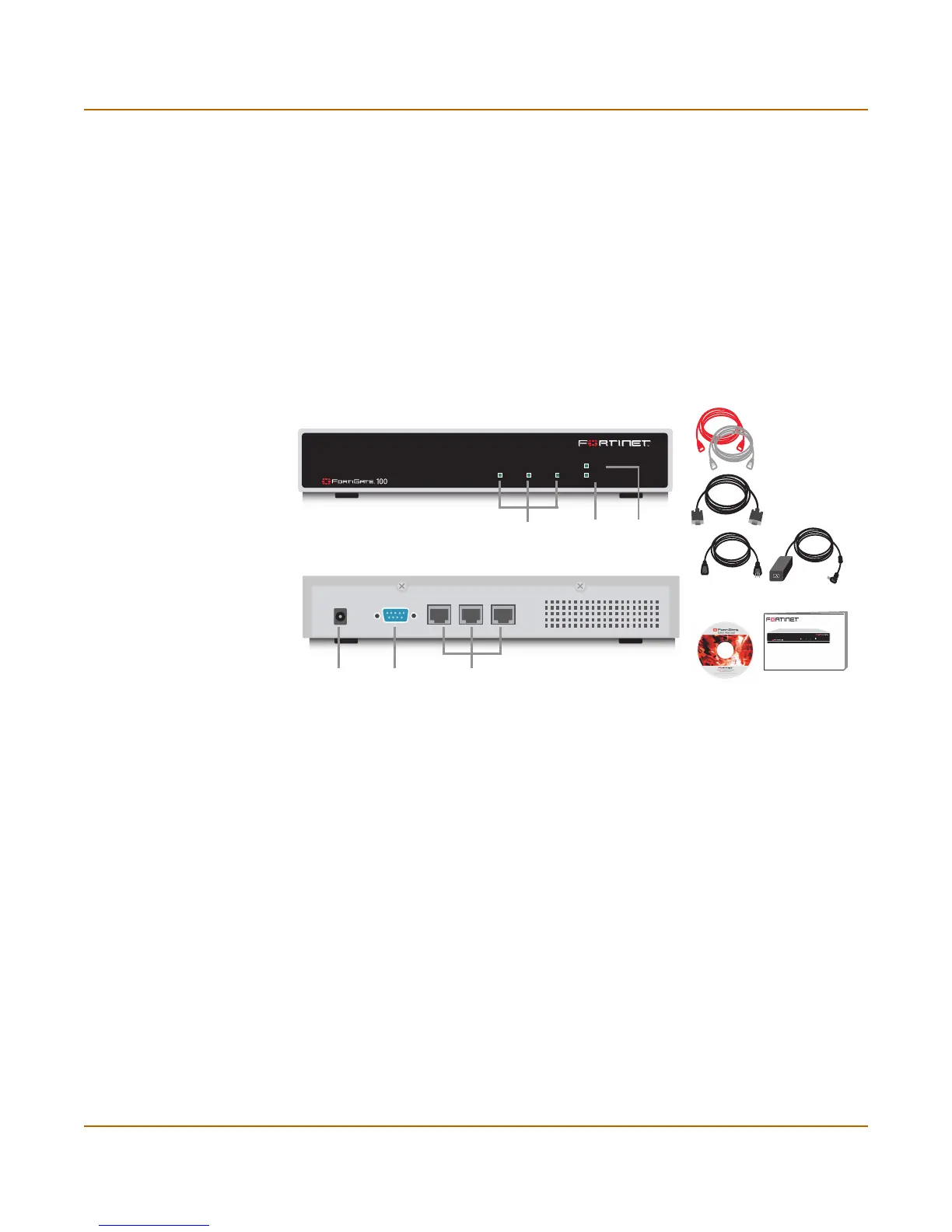

Figure 2: FortiGate-100 package contents
Mounting
The FortiGate-100 unit can be installed on any stable surface. Make sure that the
appliance has at least 1.5 in. (3.75 cm) of clearance on each side to allow for
adequate air flow and cooling.
Dimensions
• 10.25 x 6.13 x 1.75 in. (26 x 15.6 x 4.5 cm)
Weight
• 1.75 lb. (0.8 kg)
Power requirements
• DC input voltage: 12 V
• DC input current: 5 A
Back
Front
Power
LED
Internal, External, DMZ
Interfaces
Status
LED
INTERNAL
EXTERNAL
DMZ
POWER
STATUS
DMZ
External
ConsoleDC +12V 5A
Internal
RS-232 Serial
Connection
Power
Connection
DMZ, External, Internal
Interfaces
Null-Modem Cable
(RS-232)
Documentation
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
USER MANUAL
FortiGate-100
QuickStart Guide
Copyright 2003 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Power Cable Power Supply
INTERNAL
EXTERNAL
DMZ
POWER
STATUS
