14
NT530 Plus User’s Manual_English_V1.03

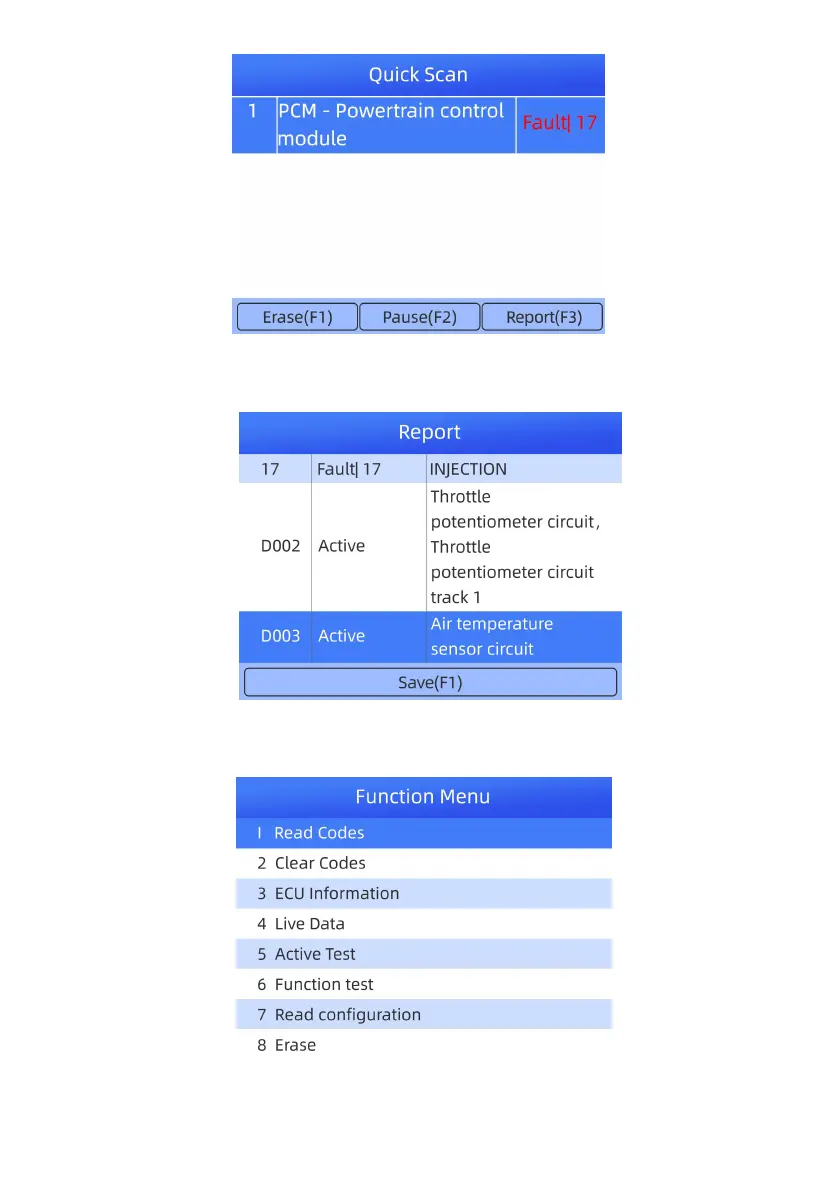

Figure 4-4 Sample Auto Scan Screen
4. If there is diagnostic trouble code(s) detected in a control unit, press the function key corresponding with
Report on the screen to view details of code information, and press the function key Erase to clear them.
Figure 4-5 Sample Display DTC Screen
5. Select the system you would like to test, and press the ENTER key. When the scanner has established
connection with the vehicle, the Function Menu displays.
Figure 4-6 Function Menu screen
