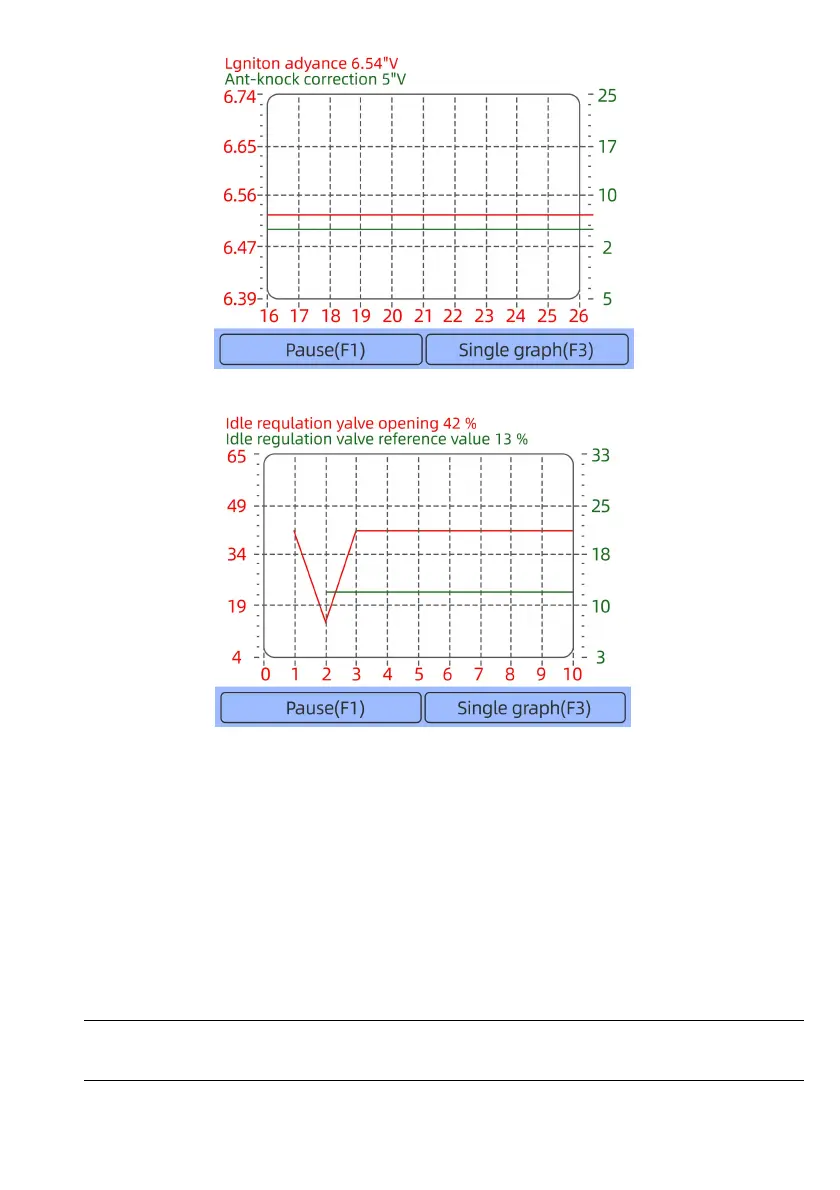

Figure 4-23 Sample Data stream Screen
Figure 4-24 Sample Data stream Screen
5. Press the Back key to return to the previous menu.
4.1.3.6 Active Tests
Active Tests, also known as Actuator Tests, are bi-directional diagnostic tests on vehicle systems and
component. The tests let you to use the scanner temporarily activate or control a vehicle system or component,
and when you exit the test, the system/component returns to normal operation.
Some tests display a command to the operator. For example, if “Press Brake Pedal” displays, the operator has
to press and hold the brake pedal and then continue. The sequence, number and type of tests are dictated by
the control module.
On some systems, the actuator tests cannot be restarted until the ignition key is switched off for some time.
Alternatively, briefly start and run the engine, shut down, turn the ignition to the run position, then re-initiate
the actuator tests.
IMPORTANT
The tests activate a component, but they do not check if the component is working correctly. Make sure the
components to be tested are in good condition and correctly mounted.
