48 | Description of the menu
Power Quality Controller – PQC | Operating Manual | FRAKO

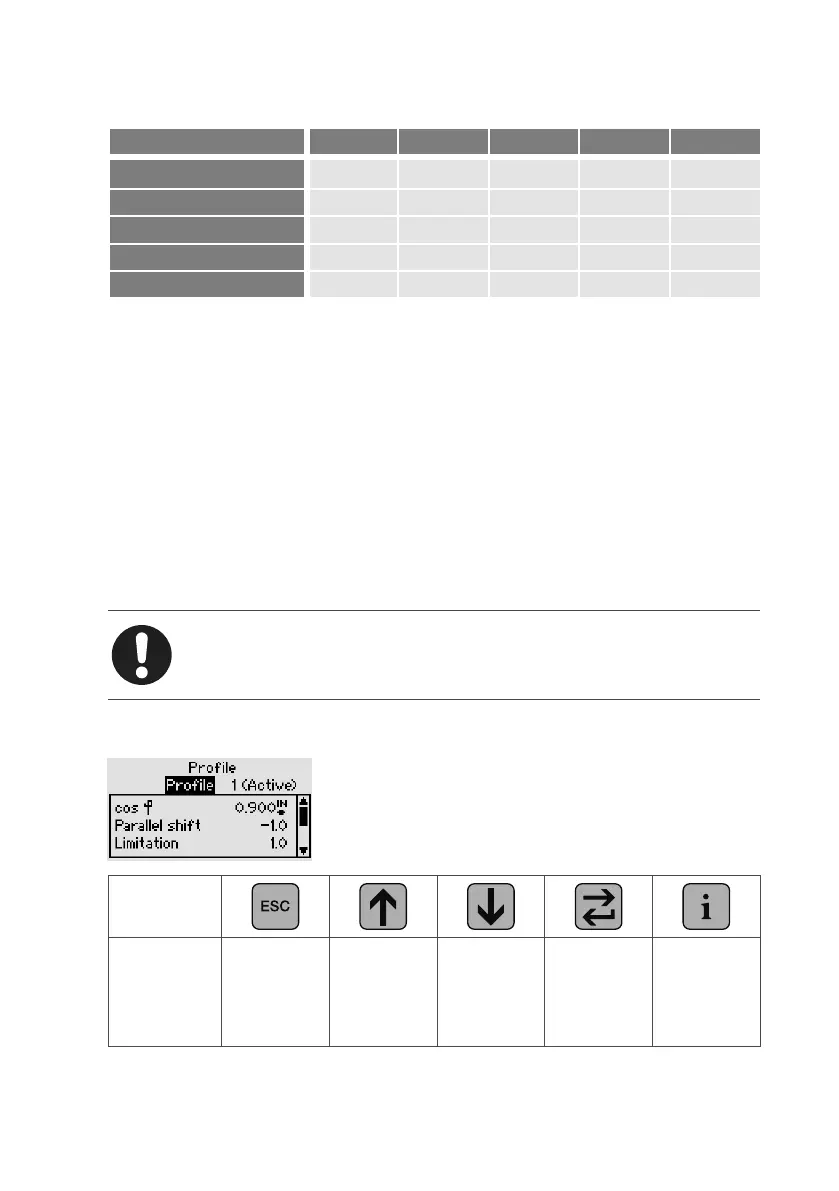

Five control profiles can be individually selected and edited. The instrument is supplied
with the following factory settings:
Profile 1 2 3 4 5
cosφ
target
0.92 ind 1.0 1.0 0.92 ind 0.96 cap
Parallel shift –1.0 0.0 +1.0 –1.0 –1.0
Limitation +1,0 off off off off
Switching delay 45 s 45 s 45 s 45 s 45 s
Phase L1 L1 L1 L1 L1
Typical control profile applications
Profile 1 Describes the ideal control characteristic curve for all consumer net-
works where an inductive cosφ is called for.
Profile 2 Suitable for consumer networks where an average cosφ =1 is to be
achieved.
Profile 3 Suitable for consumer networks where cosφ is close to 1 but overcor-
rection is to be avoided.
Profile 4 Suitable for consumer networks, as described in Profile 1, but which
have their own generating facilities (e.g. CHP units) with permanent or
frequent feed-in (regeneration) to the power supply network.
Profile 5 Suitable for generating networks, such as hydropower or wind tur-
bines, where a capacitive cosφ is called for.
Note
Further information is given in the “PQC Application Note“
Control profile parameters (Edit profile)
Key
Action
Profile
selection
(Save Yes/No)
Select
parameter
Select
parameter
Parameter
selection
Back to
parameter
selection
–
