Navistar and Detroit Diesel (Series 40) Harness
Connections
Interface Information
The ECM must be programmed for a remote throttle input. Set PTO REMOTE
PEDAL to 1. (This will enable the remote throttle input.)
+12 (24)
VDC
Ignition Key
GND
+12 (24) VDC
Pump Engaged
Interlock
8-Pin Cable
(Refer to
Figure 3 )
RED
BLK
ORG
WHT
GRN
YEL
BLU
BRN
12
12
12
12
12
30 REMOTE THROTTLE INPUT
36 VARIABLE PTO ENABLE
5 +5VDC REFERENCE
6 REMOTE THROTTLE GROUND
ECM
99F
97DD
97HM
97CC

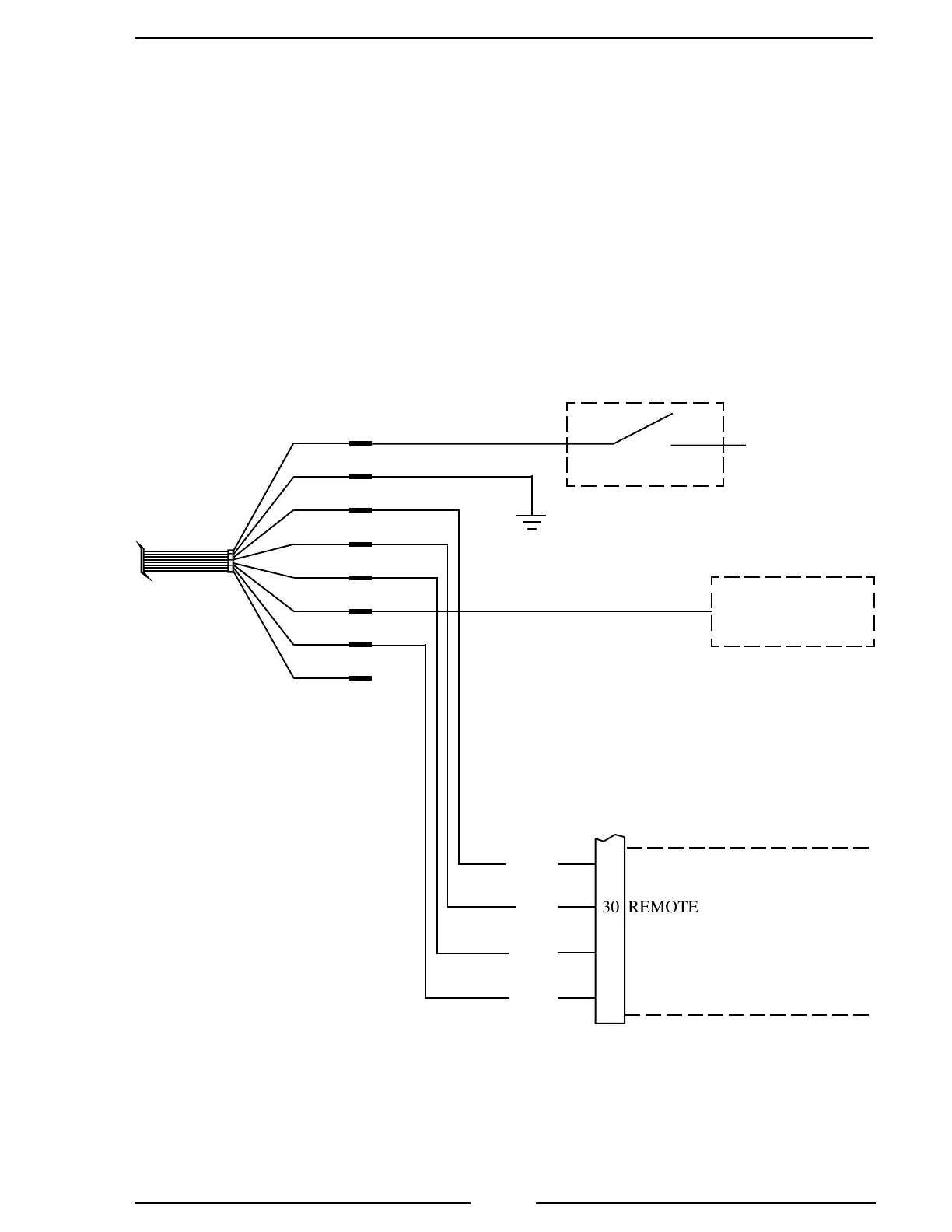

Figure 7. Navistar ELA104 Wiring
(and Detroit Diesel Series 40 ELA102B)
